Section 38 (Shift Lock Control System)
>>
Schematic Wiring Diagrams
>>
Shift Lock Control Wiring Schematics
>>
MYB
Shift Lock Control Wiring Schematics: MYB
WARNING:
This page is about a different variant/trim than selected.

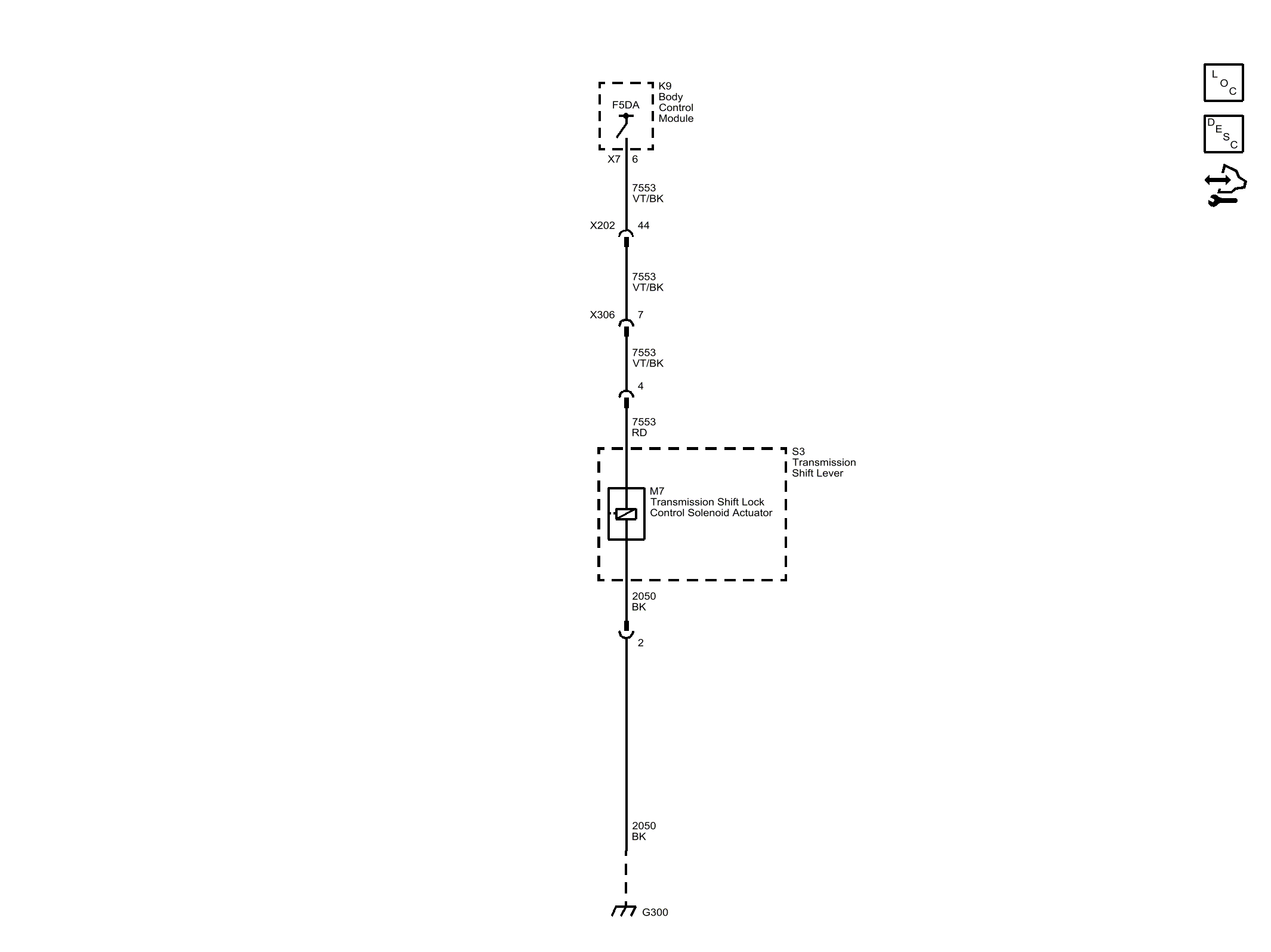

Fig 1: MYB
Courtesy of GENERAL MOTORS COMPANY
