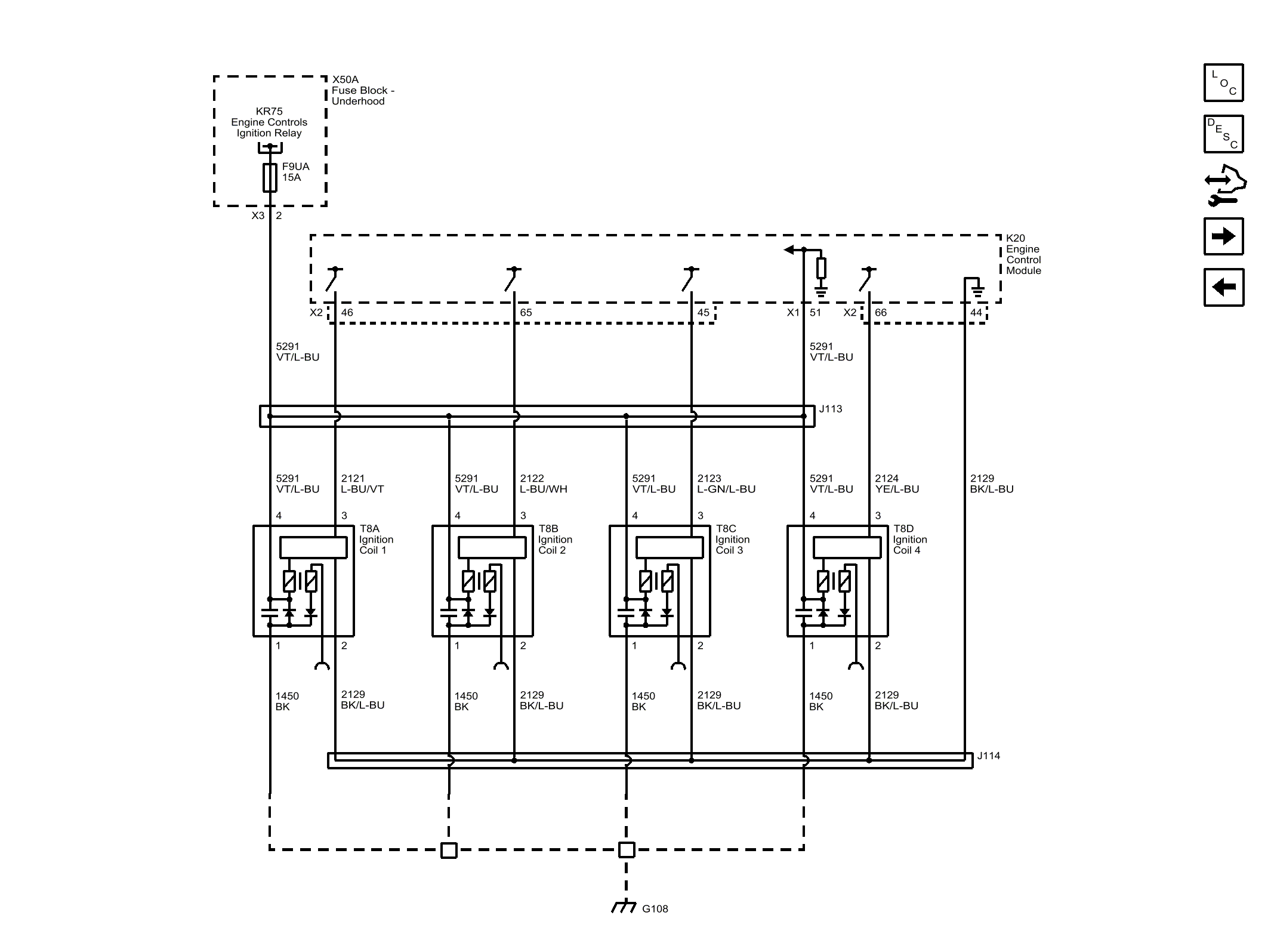

Home >> GMC >> 2017 >> Canyon SL >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 2.5L (LCV) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Ignition Controls - Ignition System
