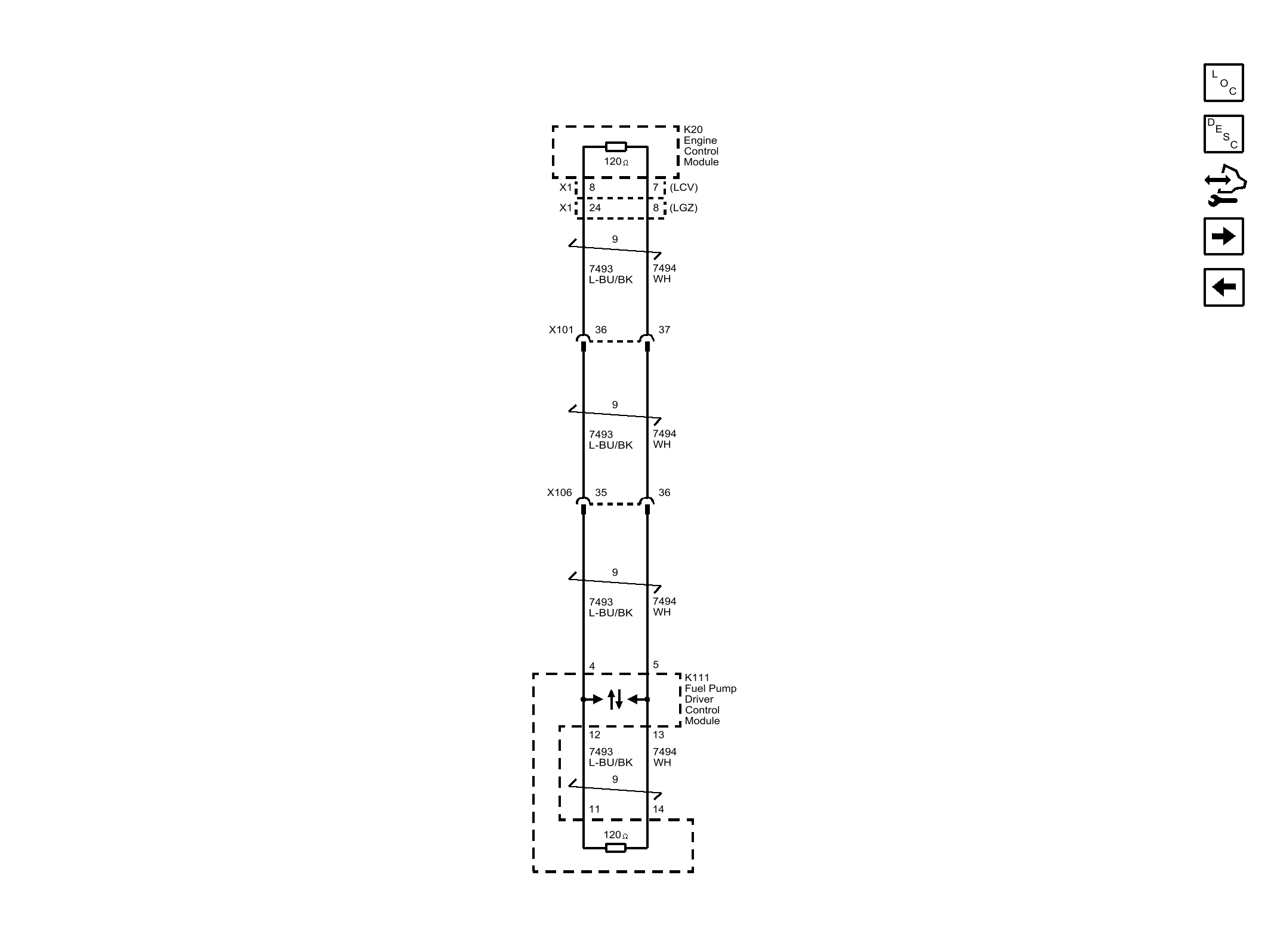

Home >> GMC >> 2017 >> Canyon SL >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Powertrain Expansion Bus (LCV, LGZ)
