Fuel Injection Fuel Rail Noise Shield Replacement

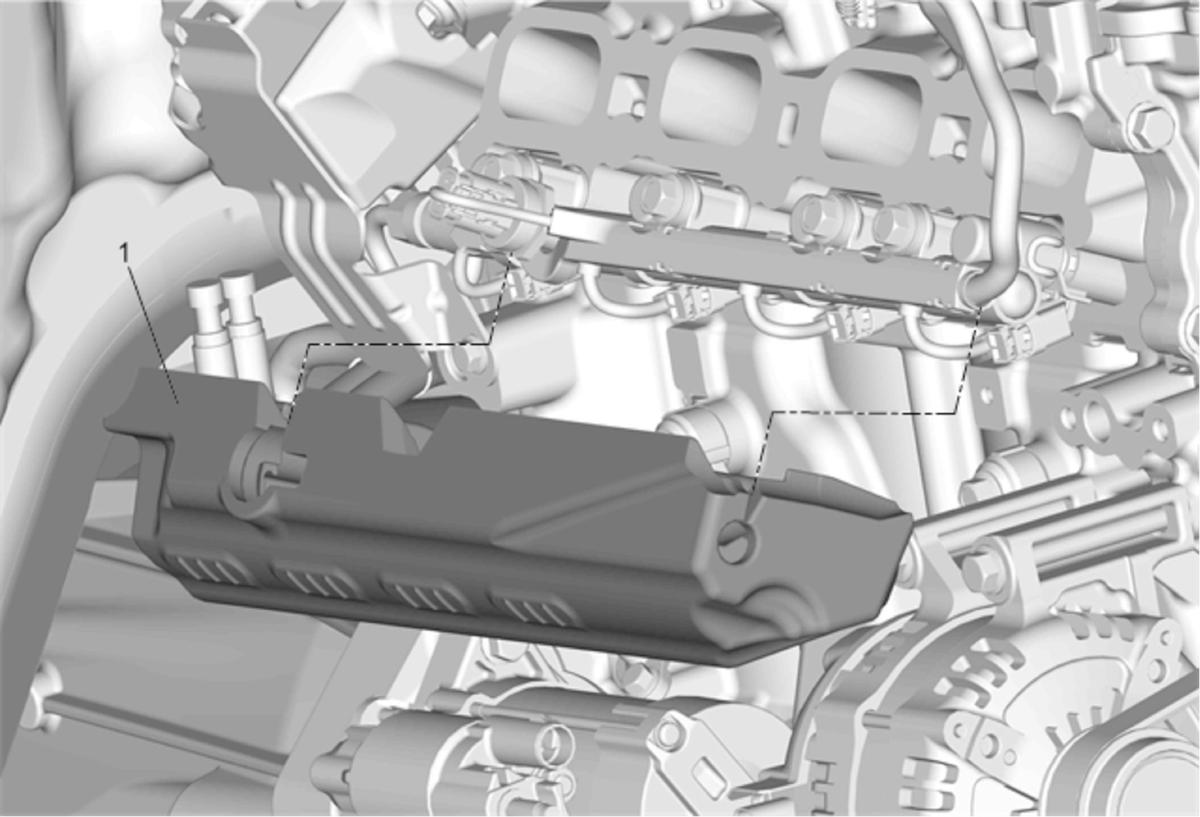

Fig 1: Fuel Injection Fuel Rail Noise Shield
GM3816354Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the intake manifold. Refer to Intake Manifold Replacement .
1 Fuel Injection Fuel Rail Noise Shield
NOTE:

The fuel injection fuel rail noise shield snaps into place.
