Fuel Feed Pipe Replacement (At Tank)

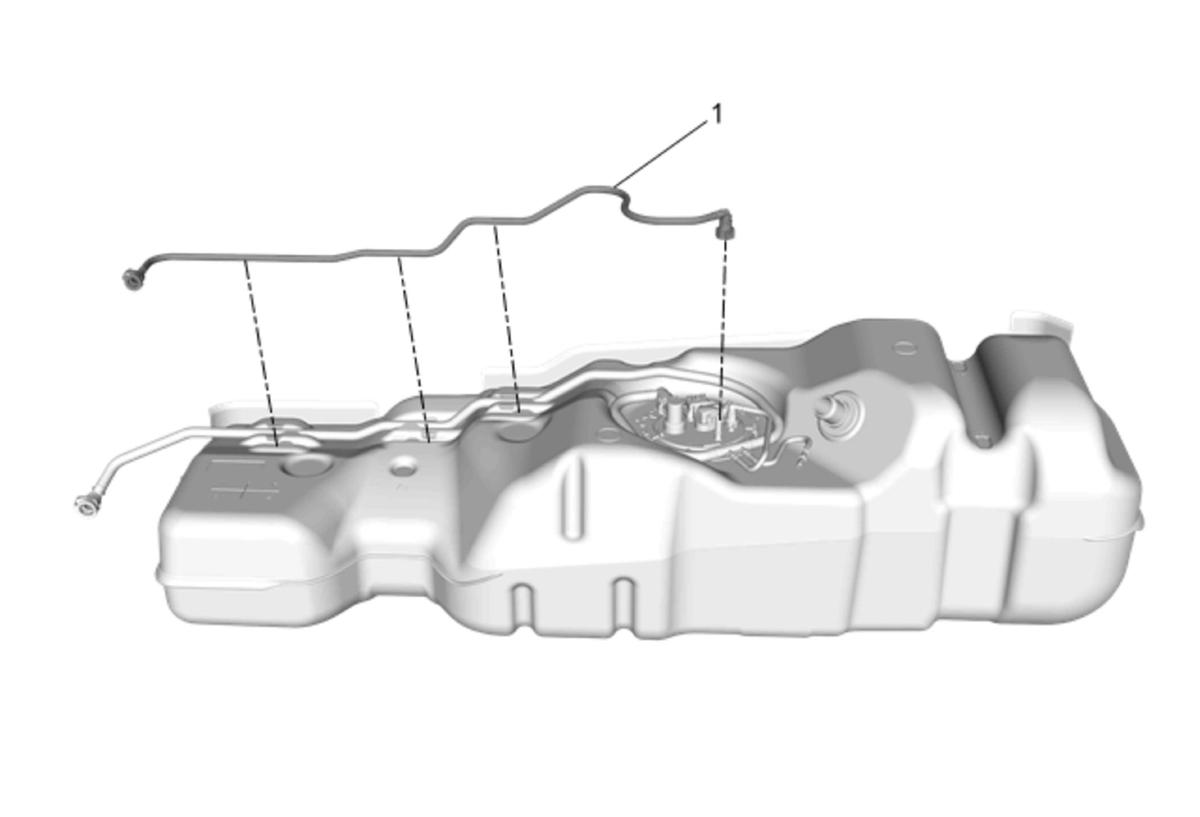

Fig 1: Fuel Feed Pipe (At Tank)
GM3766307Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Feed Pipe
Procedure
Disconnect the quick disconnect. Refer to Plastic Collar Quick Connect Fitting Service .
