Installation Procedure

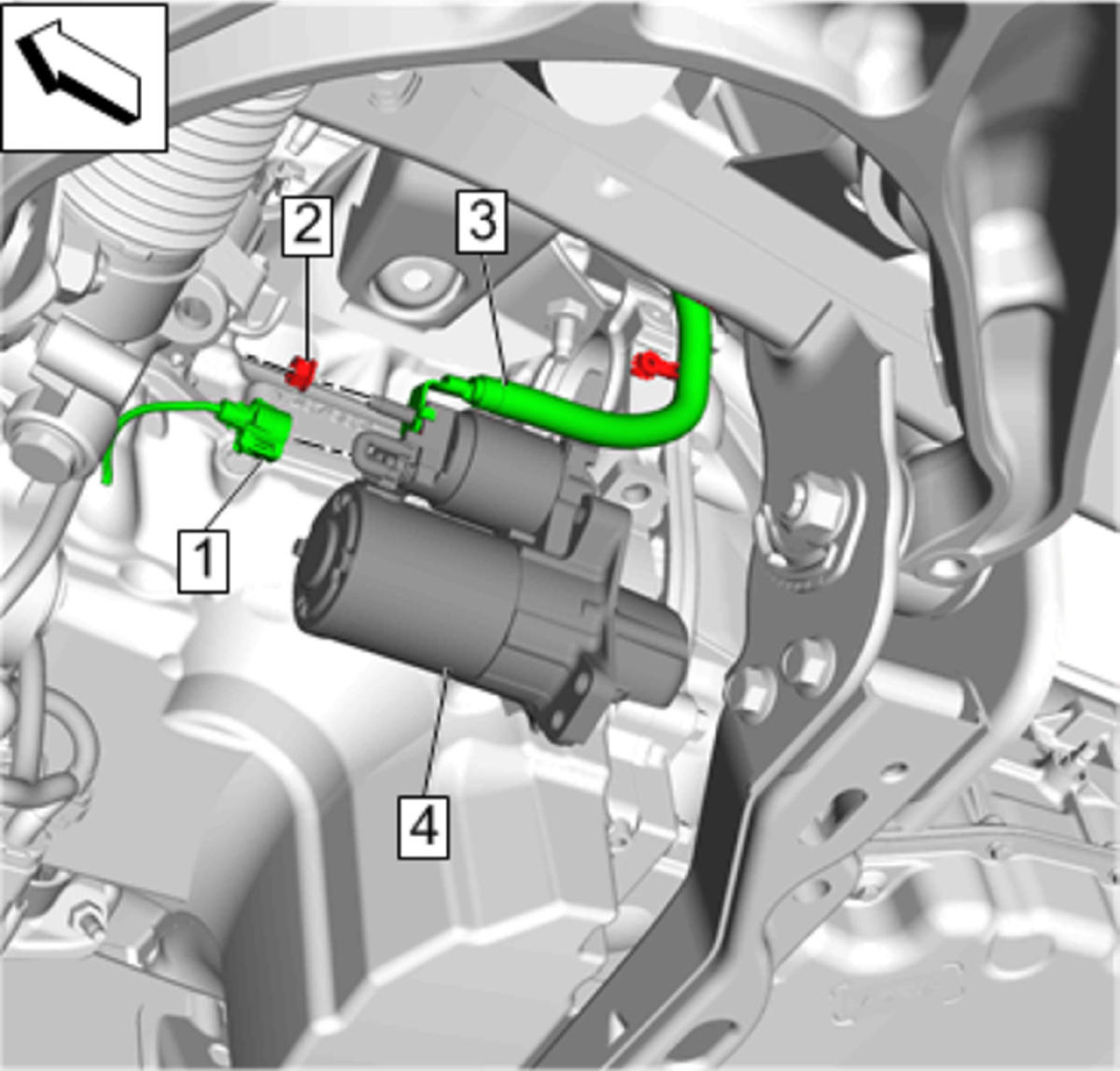

    Fig 1: Electrical Connector, Battery Positive Cable Nut And Starter
    GM4564319Courtesy of GENERAL MOTORS COMPANY
  1. Connect Electrical Connector (1).
  2. Install Battery Positive Cable (3).
    3. CAUTION:

    Refer to Fastener Caution

  3. Install Battery Positive Cable Nut (2)and tighten 13 N.m (115 lb in)
  4. Install Starter (4)
    5. Fig 2: Starter And Starter Mounting Bolt
    GM4564140Courtesy of GENERAL MOTORS COMPANY
  5. Install Starter Mounting Bolt (1) and tighten 58 N.m (43 lb ft)
  6. Install Starter Mounting Bolt (3) and tighten 58 N.m (43 lb ft)
  7. Install Engine Mount Bracket-Left Side - Engine Mount Bracket Replacement - Left Side
  8. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
