Installation Procedure

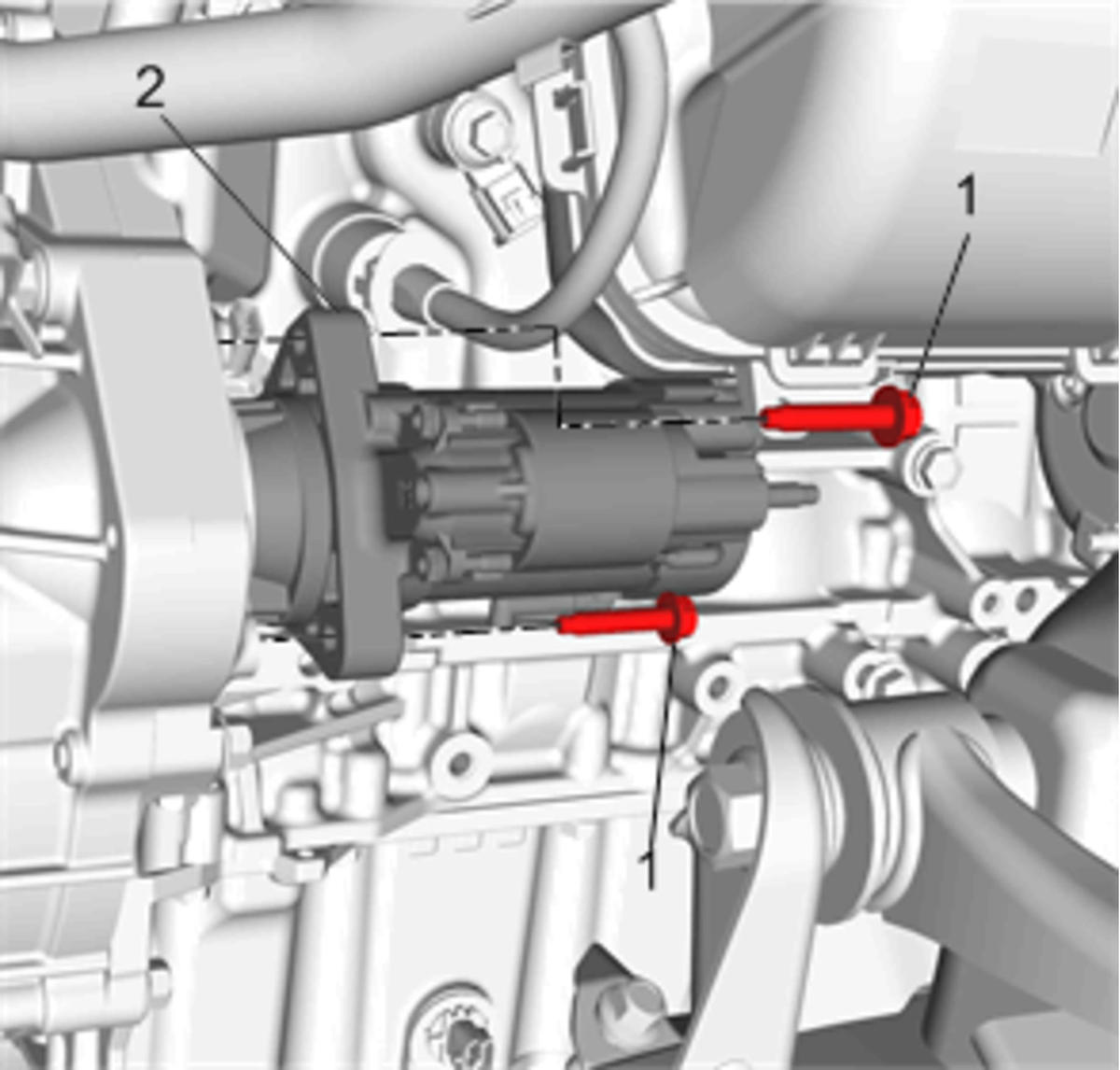

    Fig 1: Starter Mounting Bolts
    GM3813119Courtesy of GENERAL MOTORS COMPANY
  1. Install Starter (2)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install Starter Mounting Bolt (1) and tighten 22 N.m (16 lb ft)

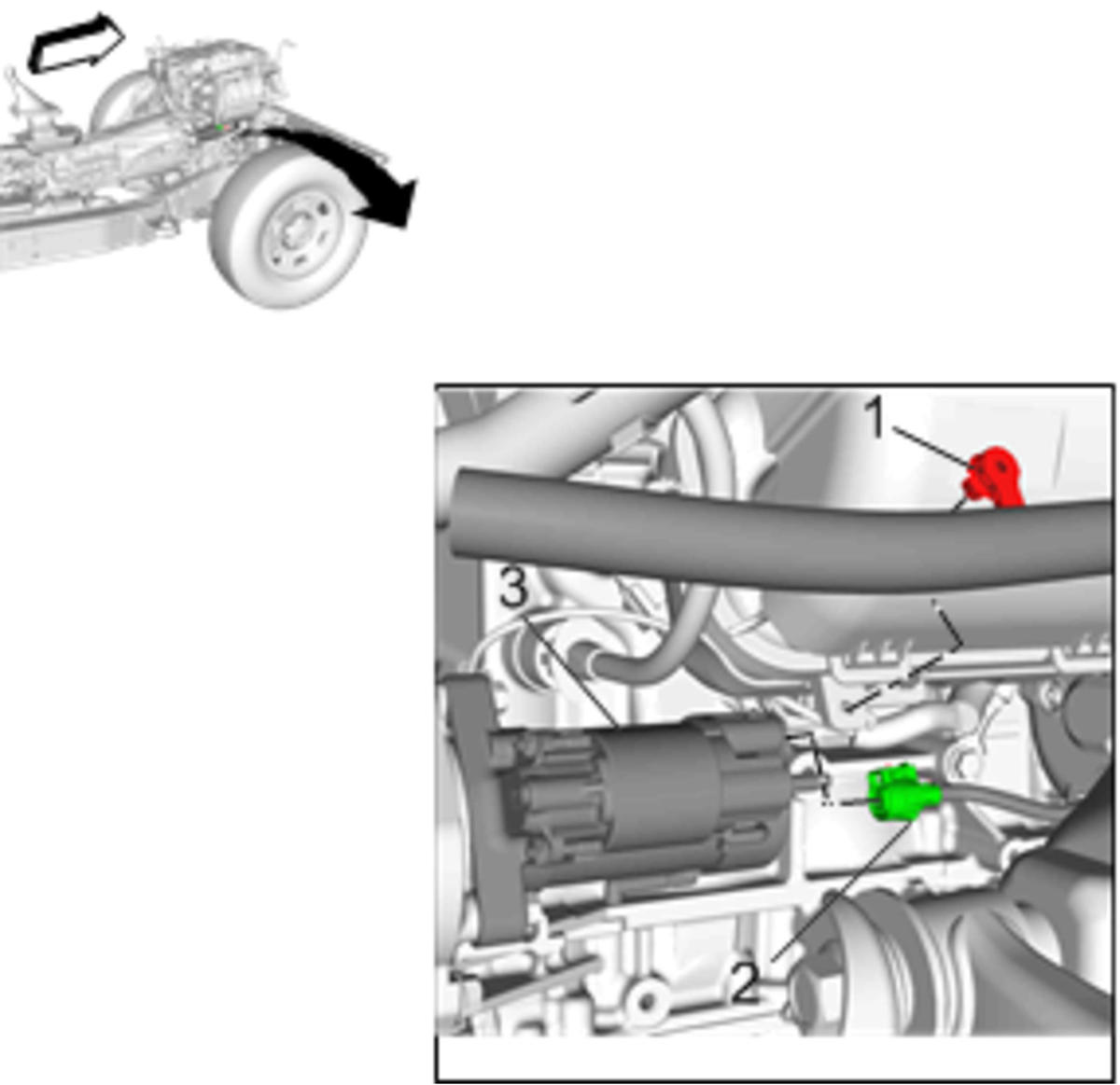

    3. Fig 2: Engine Harness Retainer
    GM3813118Courtesy of GENERAL MOTORS COMPANY
  3. Connect Electrical Connector (2) @Starter Solenoid (3)
    4. Fig 3: Battery Positive Cable Fastener
    GM3791038Courtesy of GENERAL MOTORS COMPANY
  4. Install Battery Positive Cable (3)
  5. Install Battery Positive Cable Fastener (1) @Starter Solenoid (2) and tighten 13 N.m (115 lb in)
  6. Lower the vehicle.
  7. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection .
