Installation Procedure

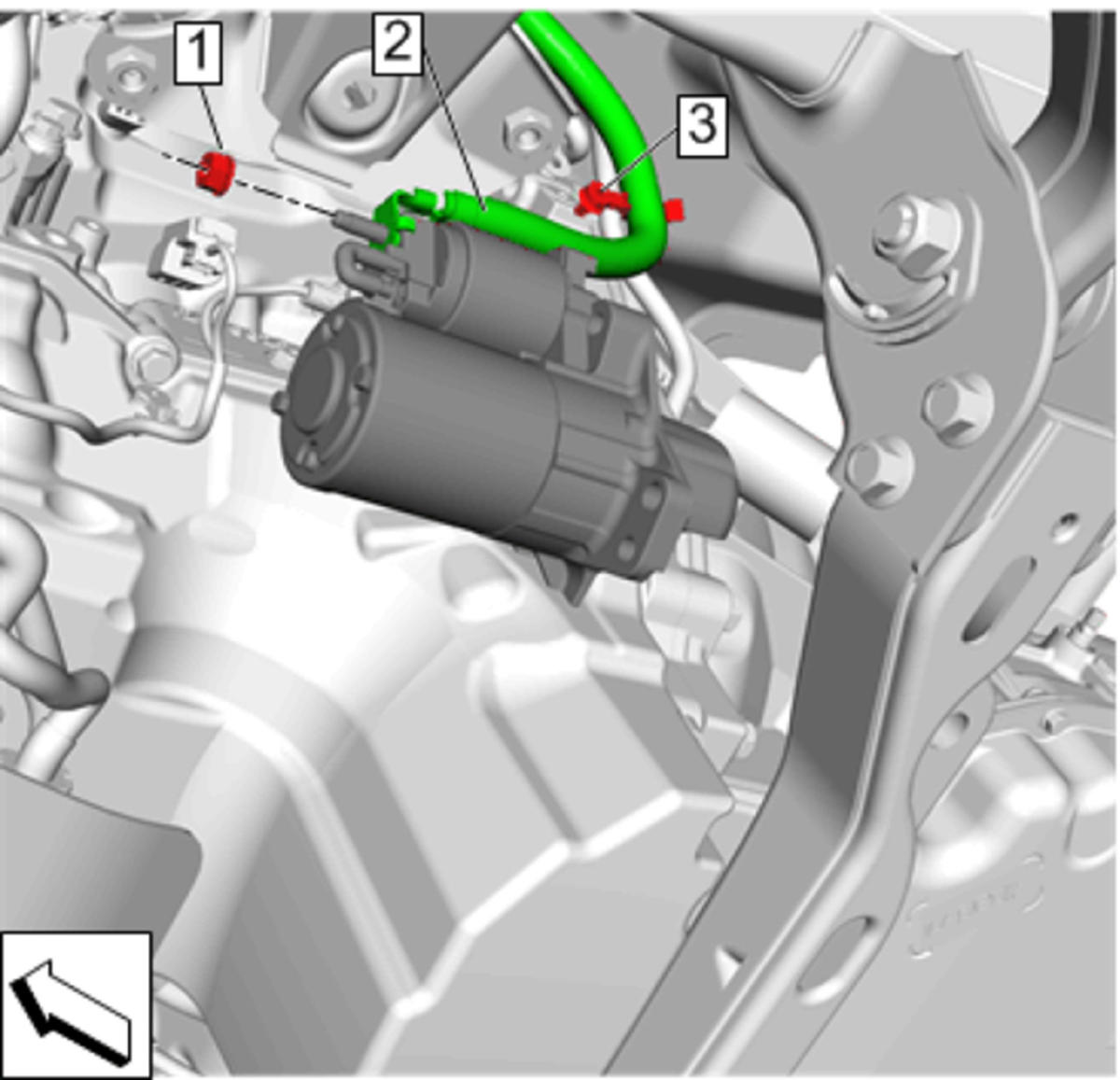

    Fig 1: Battery Positive Cable Nut And Retainer
    GM4564135Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Positive Cable (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Battery Positive Cable Nut (1) and tighten 13 N.m (115 lb in)
  3. Engage Retainer (3)

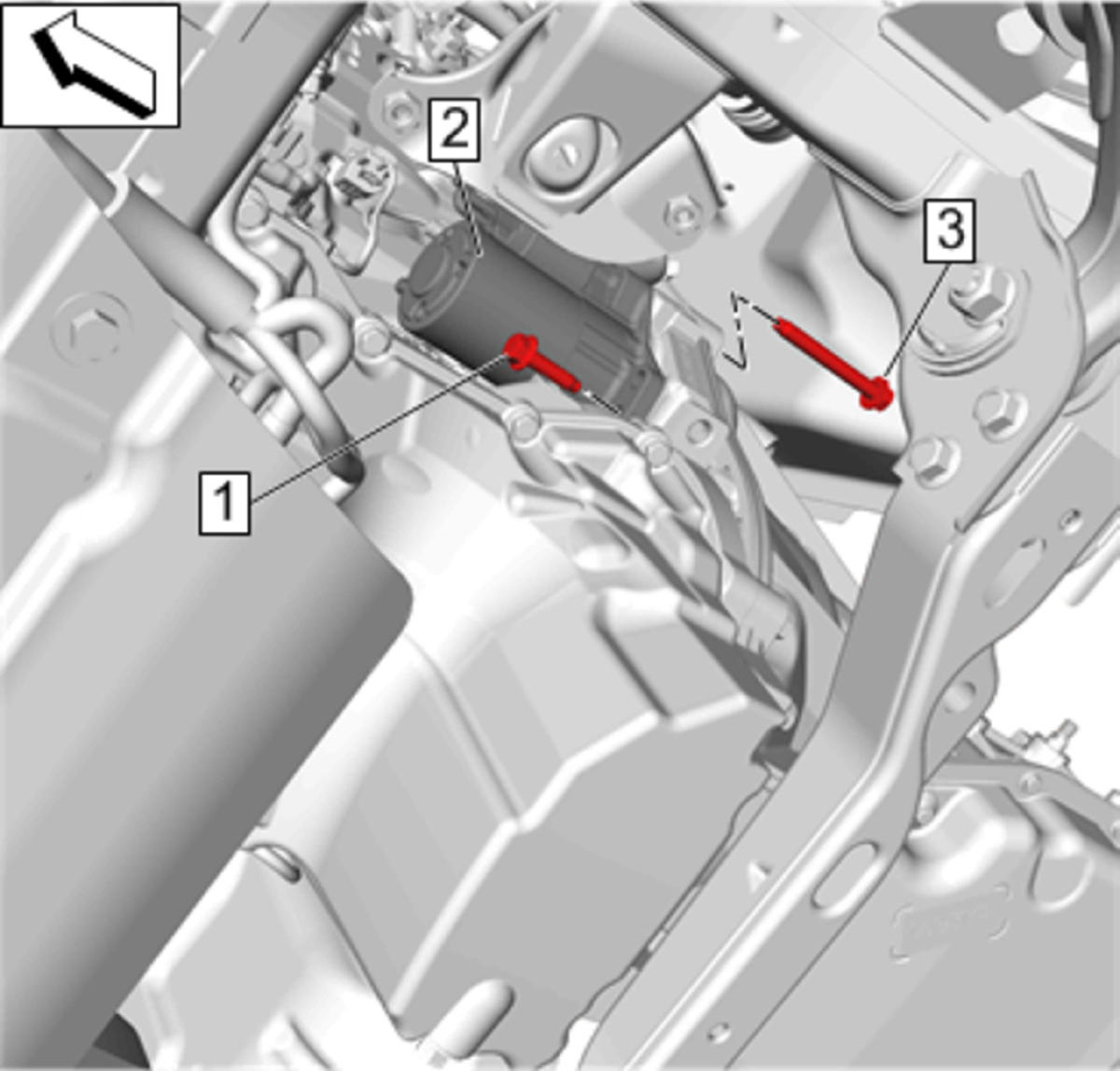

    4. Fig 2: Starter And Starter Mounting Bolt
    GM4564140Courtesy of GENERAL MOTORS COMPANY
  4. Install Starter Mounting Bolt (1) and tighten 58 N.m (43 lb ft)
  5. Install Starter Mounting Bolt (3) and tighten 58 N.m (43 lb ft)
  6. Install Engine Mount Bracket-Left Side -Engine Mount Bracket Replacement - Left Side

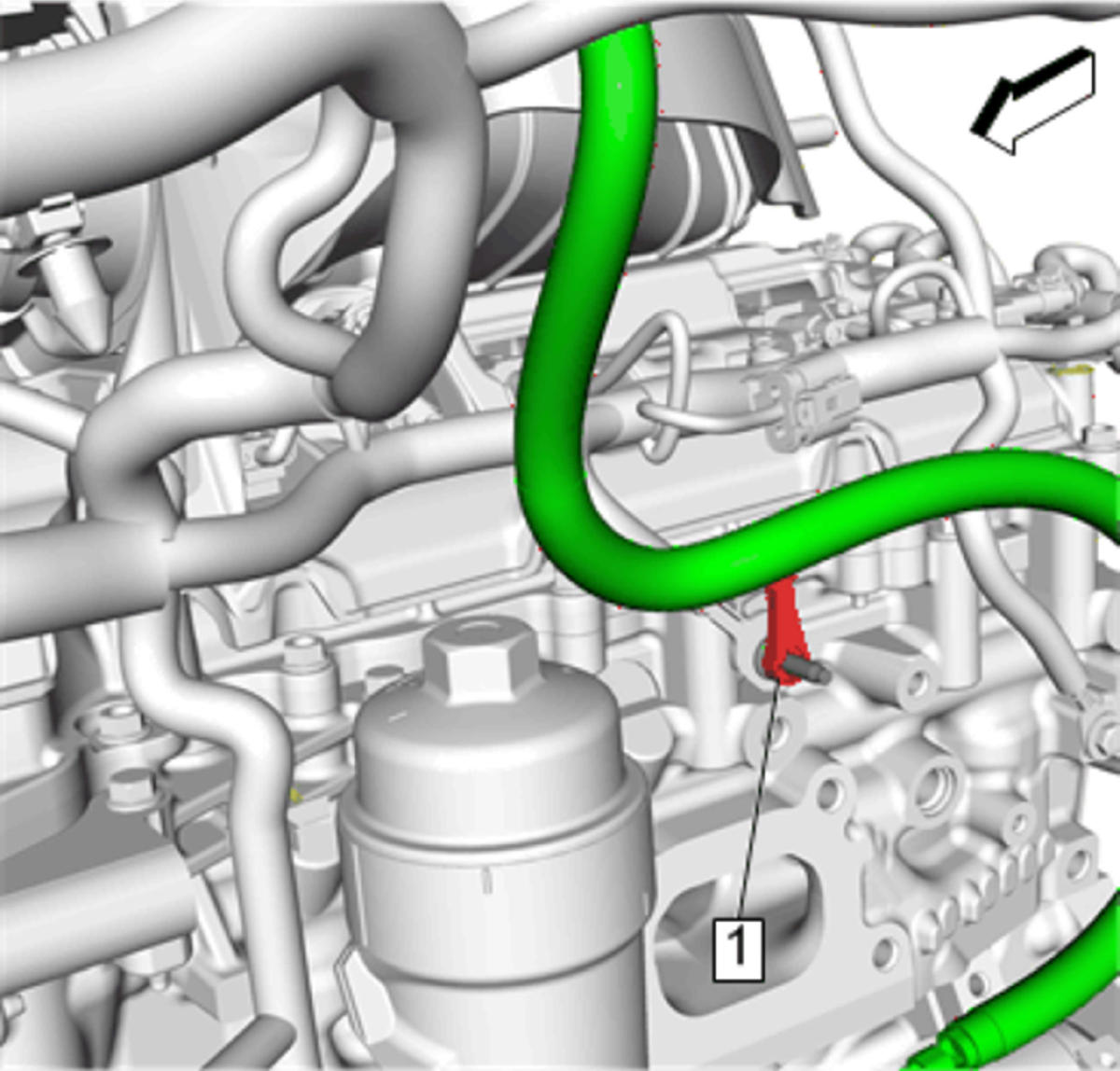

    7. Fig 3: Retainer
    GM4564134Courtesy of GENERAL MOTORS COMPANY
  7. Engage Retainer (1)

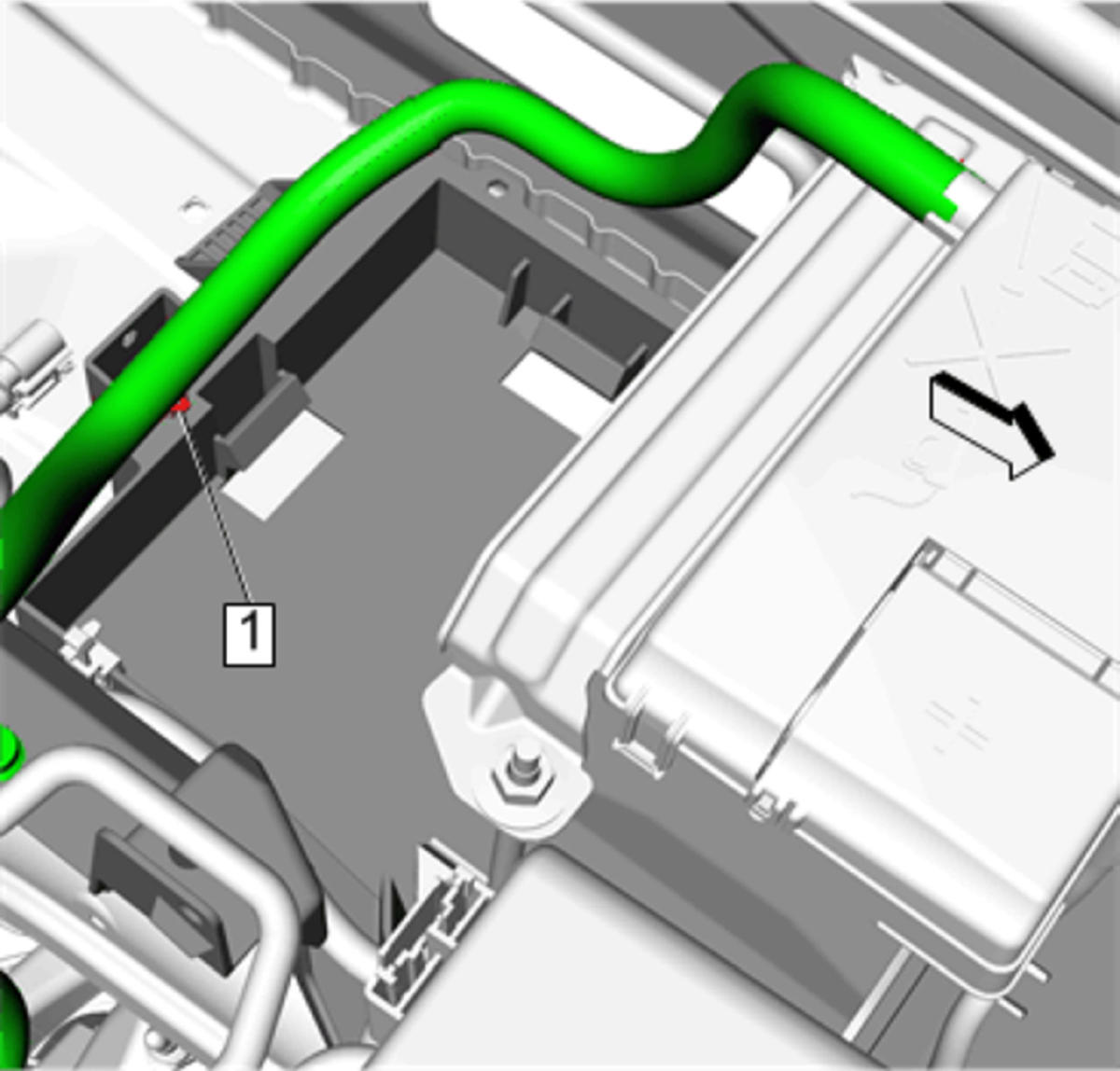

    8. Fig 4: Retainer
    GM4564132Courtesy of GENERAL MOTORS COMPANY
  8. Engage Retainer (1) @Battery Tray.

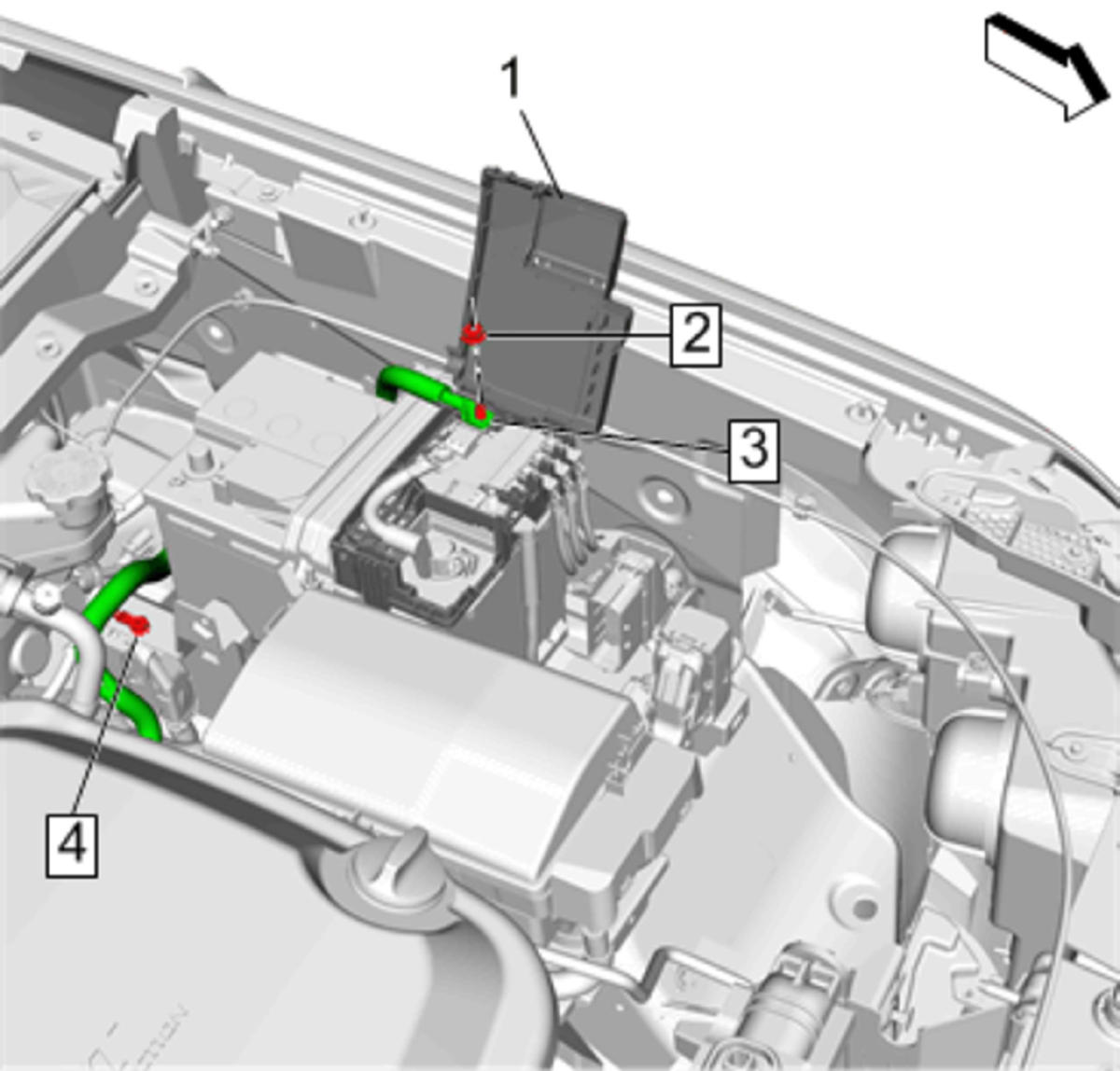

    9. Fig 5: Battery Distribution Fuse Block Cover
    GM4564131Courtesy of GENERAL MOTORS COMPANY
  9. Engage Retainer (4)
  10. Install Battery Positive Cable (3)
  11. Install Front Compartment Fuse Block Cable Nut (2) and tighten 15 N.m (11 lb ft)
  12. Close Battery Distribution Fuse Block Cover (1)
  13. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
