Installation Procedure

    Fig 1: Battery Negative Cable
    GM3802956Courtesy of GENERAL MOTORS COMPANY
  1. Position the battery negative cable (1) into the engine compartment.
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle .

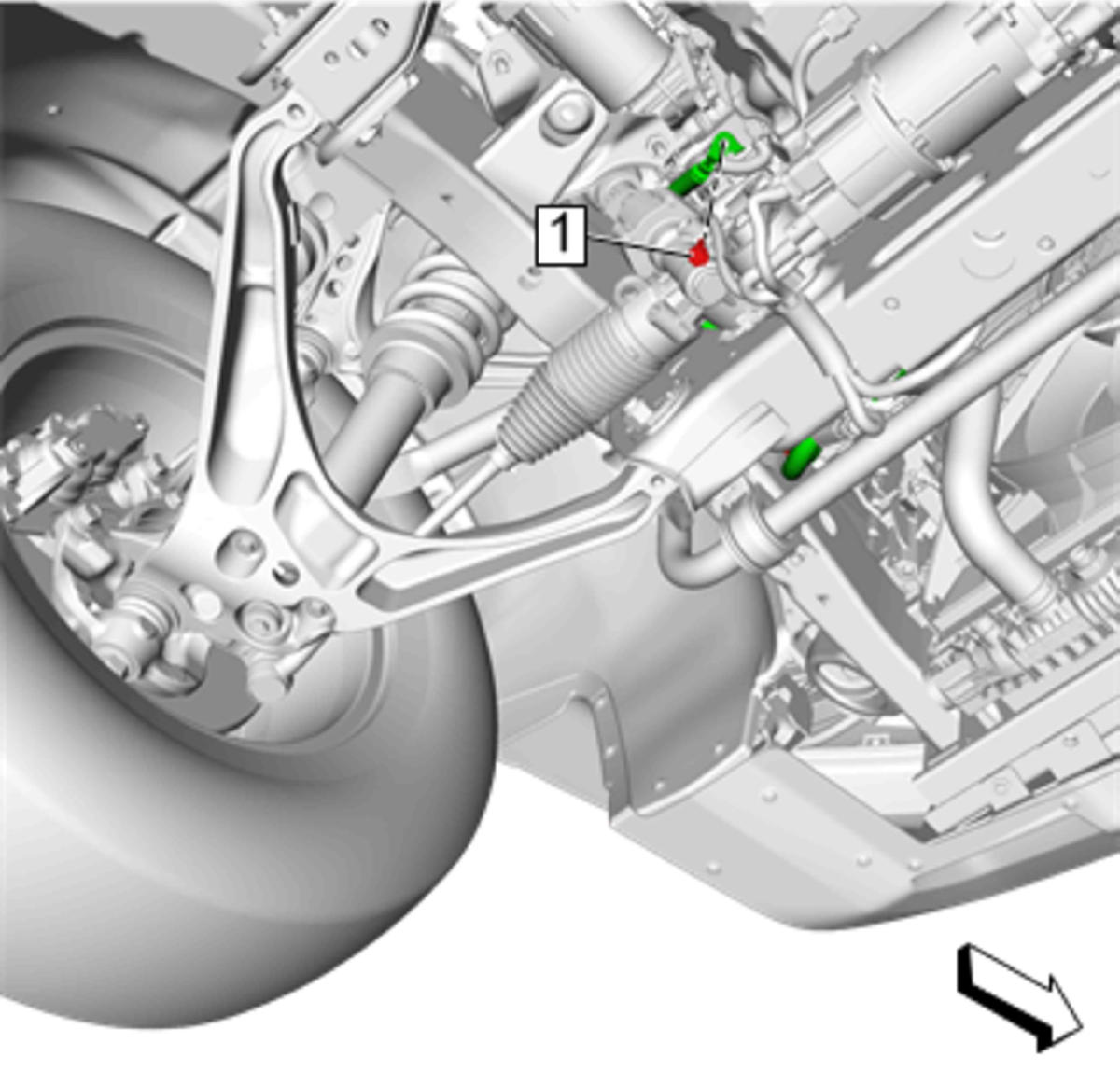

    3. Fig 2: Battery Negative Cable Ground Fastener
    GM4564808Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  3. Install Battery Negative Cable Ground Fastener (1) and tighten 22 N.m (16 lb ft)

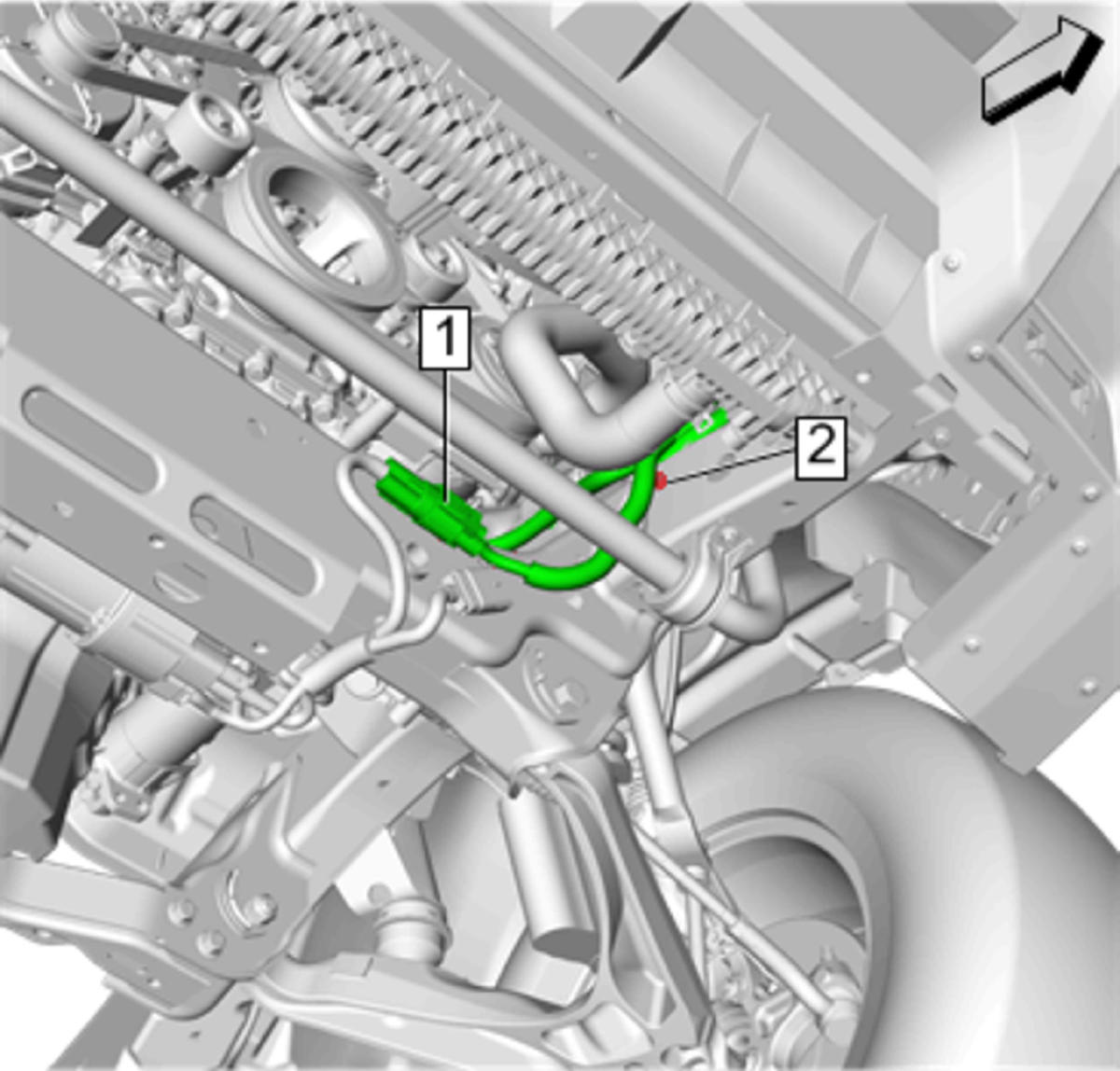

    4. Fig 3: Electric Belt Drive Rack And Pinion Steering Gear Connector
    GM4564793Courtesy of GENERAL MOTORS COMPANY
  4. Connect the electric belt drive rack and pinion steering gear connector (1).
  5. Engage Retainer (2)
  6. Lower the vehicle.

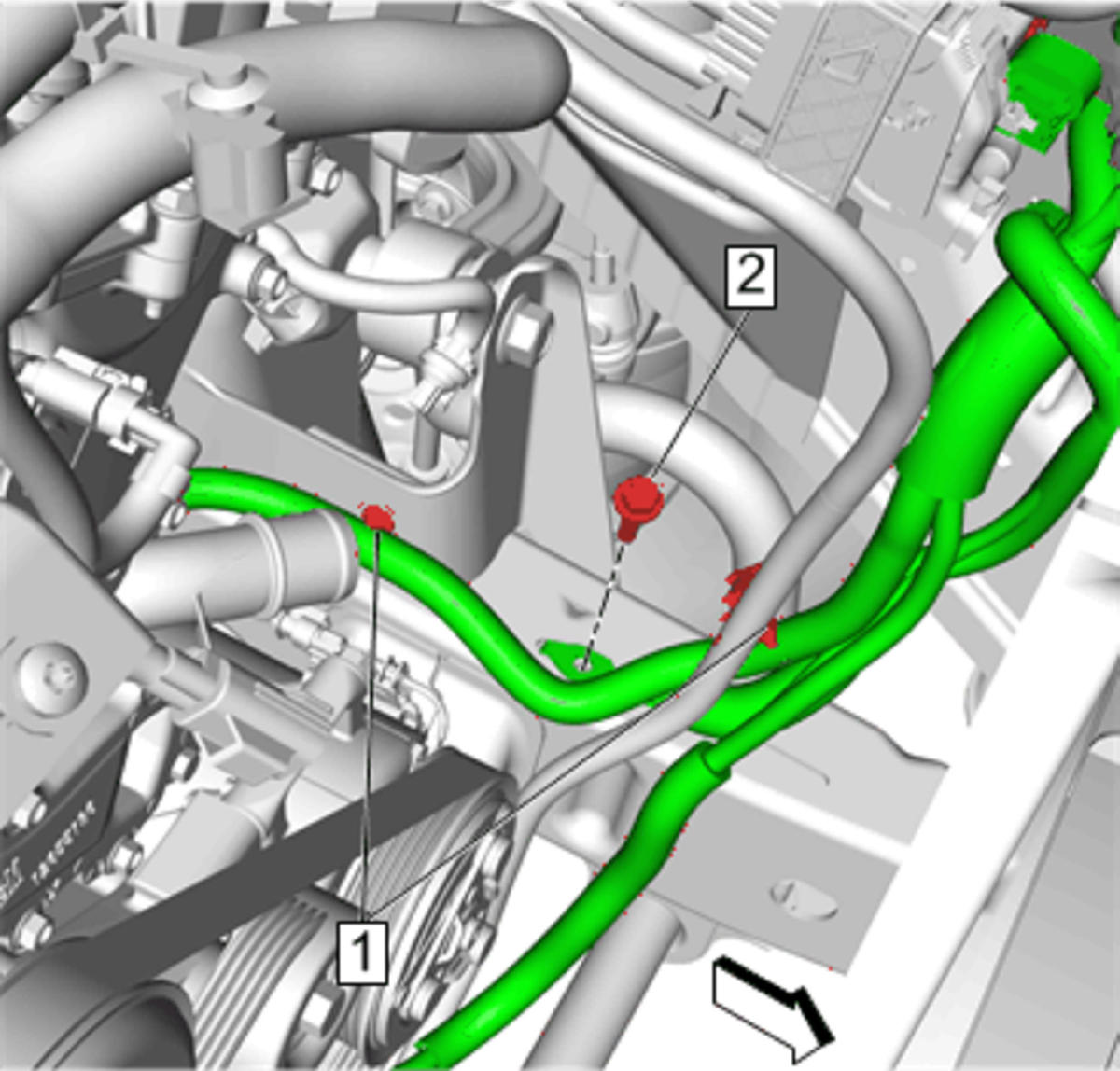

    7. Fig 4: Negative Cable Frame Ground Fastener
    GM4564806Courtesy of GENERAL MOTORS COMPANY
  7. Install Battery Negative Cable Frame Ground Fastener (2) and tighten 22 N.m (16 lb ft)
  8. Engage Retainer (1)
  9. Install Steering Gear Skid Shield -Steering Gear Skid Shield Replacement (without ZR2)Steering Gear Skid Shield Replacement (with ZR2)
  10. Install Underbody Splash Shield - Underbody Splash Shield Replacement (without ZR2)Underbody Splash Shield Replacement (with ZR2)

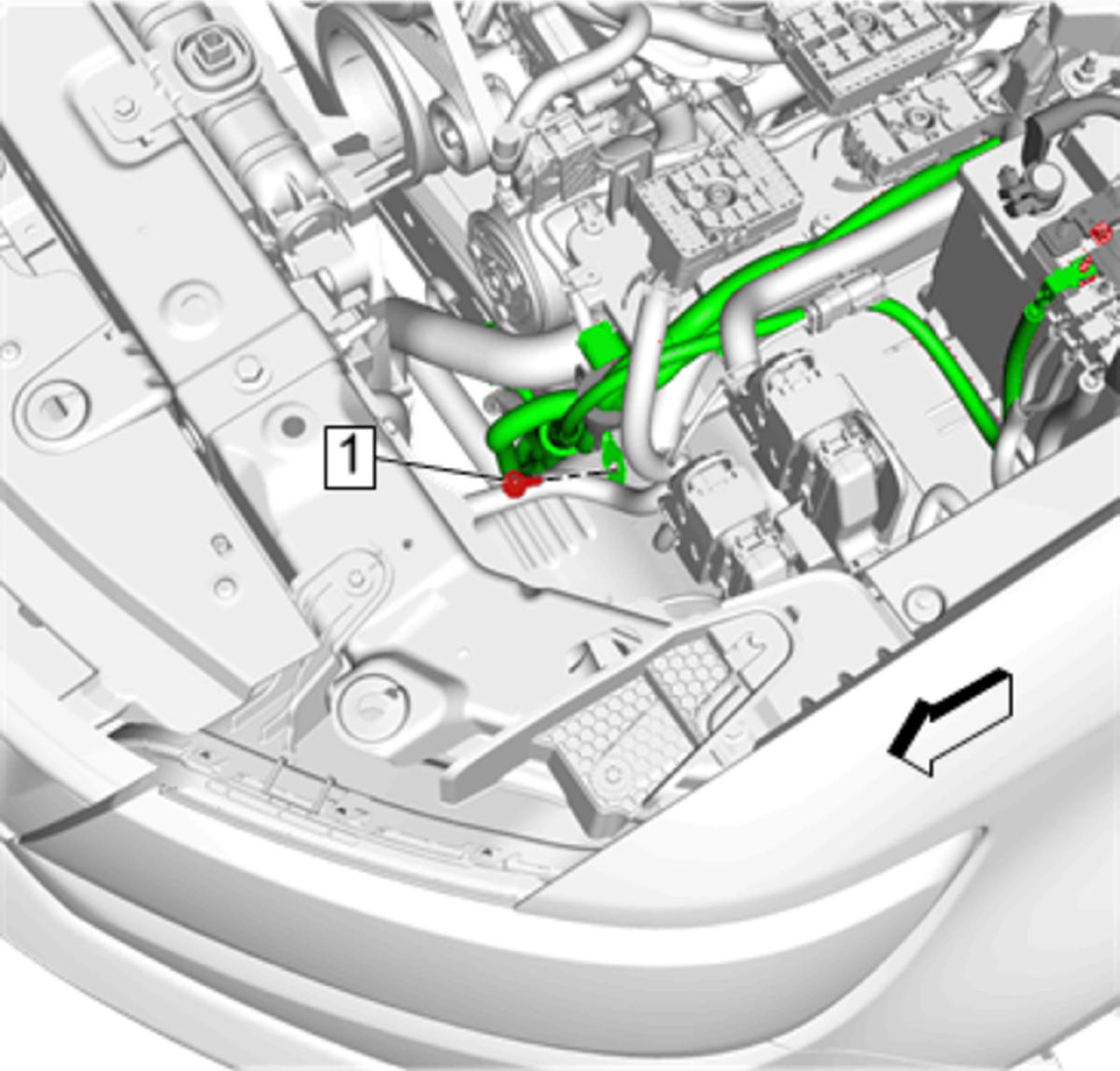

    11. Fig 5: Battery Negative Cable Ground Fastener
    GM4564801Courtesy of GENERAL MOTORS COMPANY
  11. Install Battery Negative Cable Ground Fastener (1) and tighten 22 N.m (16 lb ft)

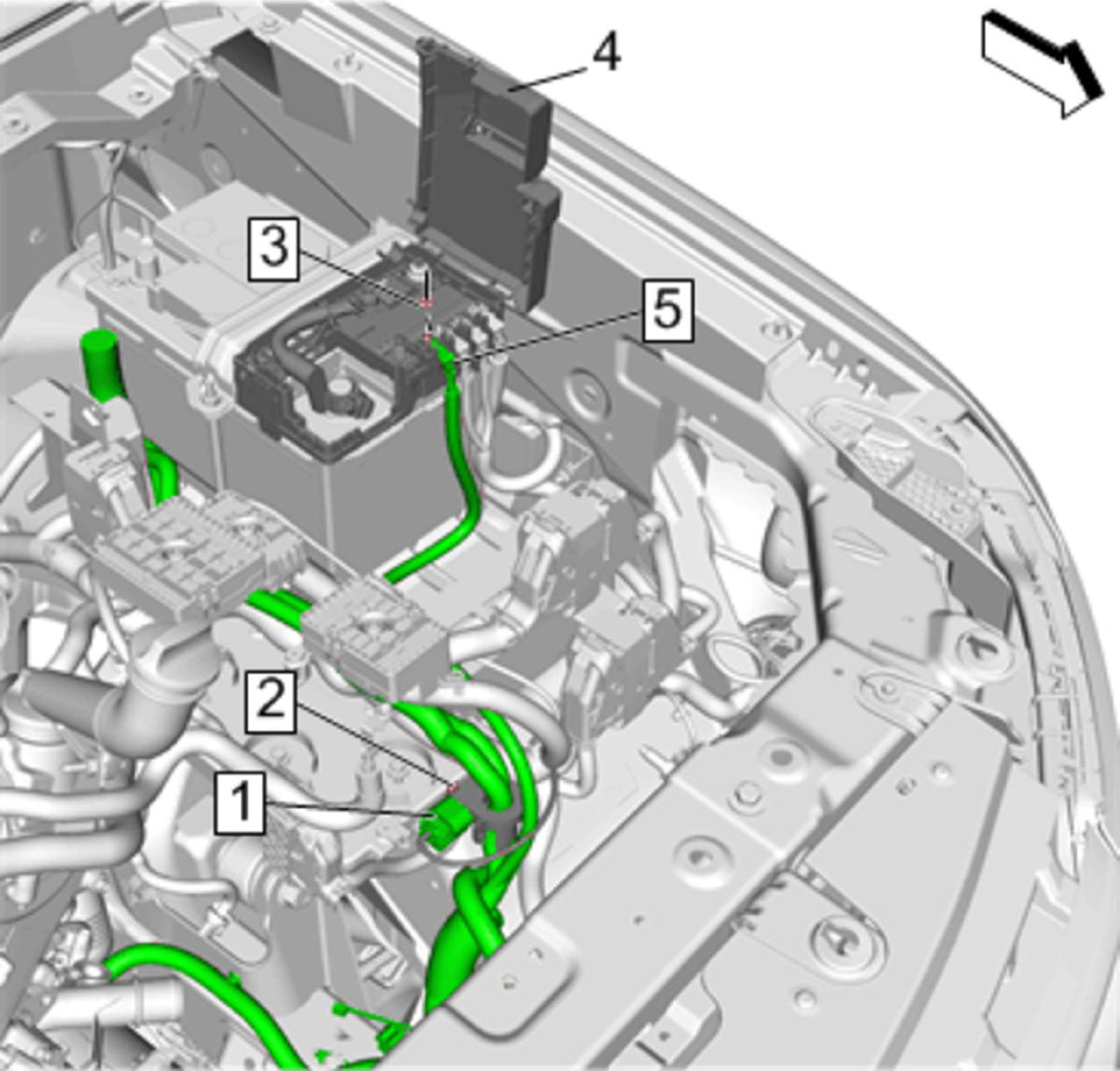

    12. Fig 6: Retainer
    GM4564783Courtesy of GENERAL MOTORS COMPANY
  12. Connect the battery current sensor. (1)
  13. Engage Retainer (2)
  14. Install Battery Negative Cable (5)
  15. Install Fuse Block Nut (3) and tighten 13 N.m (115 lb in)
  16. Close the battery fuse block cover.(4)

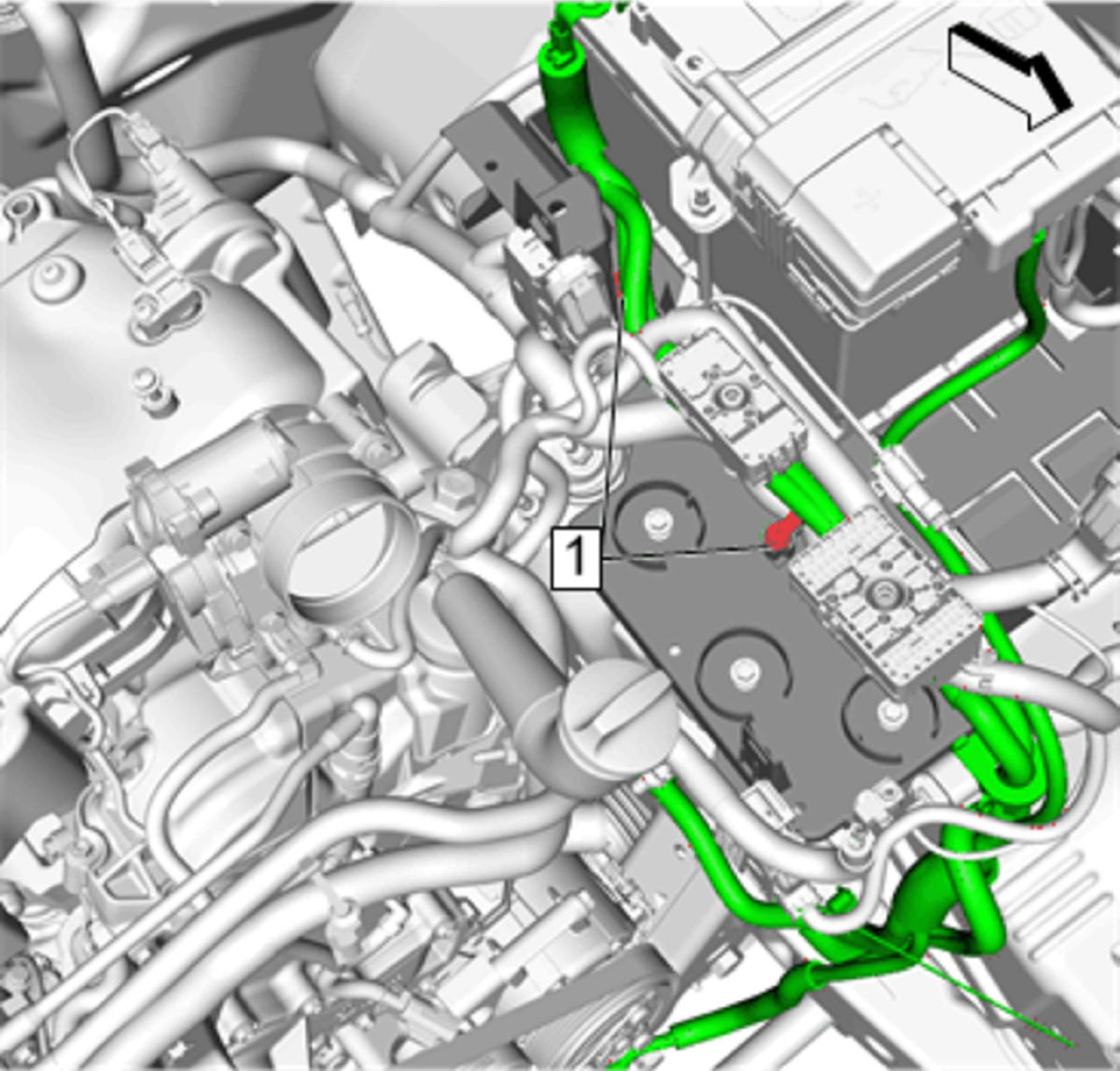

    17. Fig 7: Retainer
    GM4564774Courtesy of GENERAL MOTORS COMPANY
  17. Engage Retainer (1)
    18. Fig 8: Engine Wiring Harness Fuse Block Bracket
    GM3808307Courtesy of GENERAL MOTORS COMPANY
  18. Install Engine Wiring Harness Fuse Block Bracket (2)Engine Wiring Harness Fuse Block Bracket Replacement
  19. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

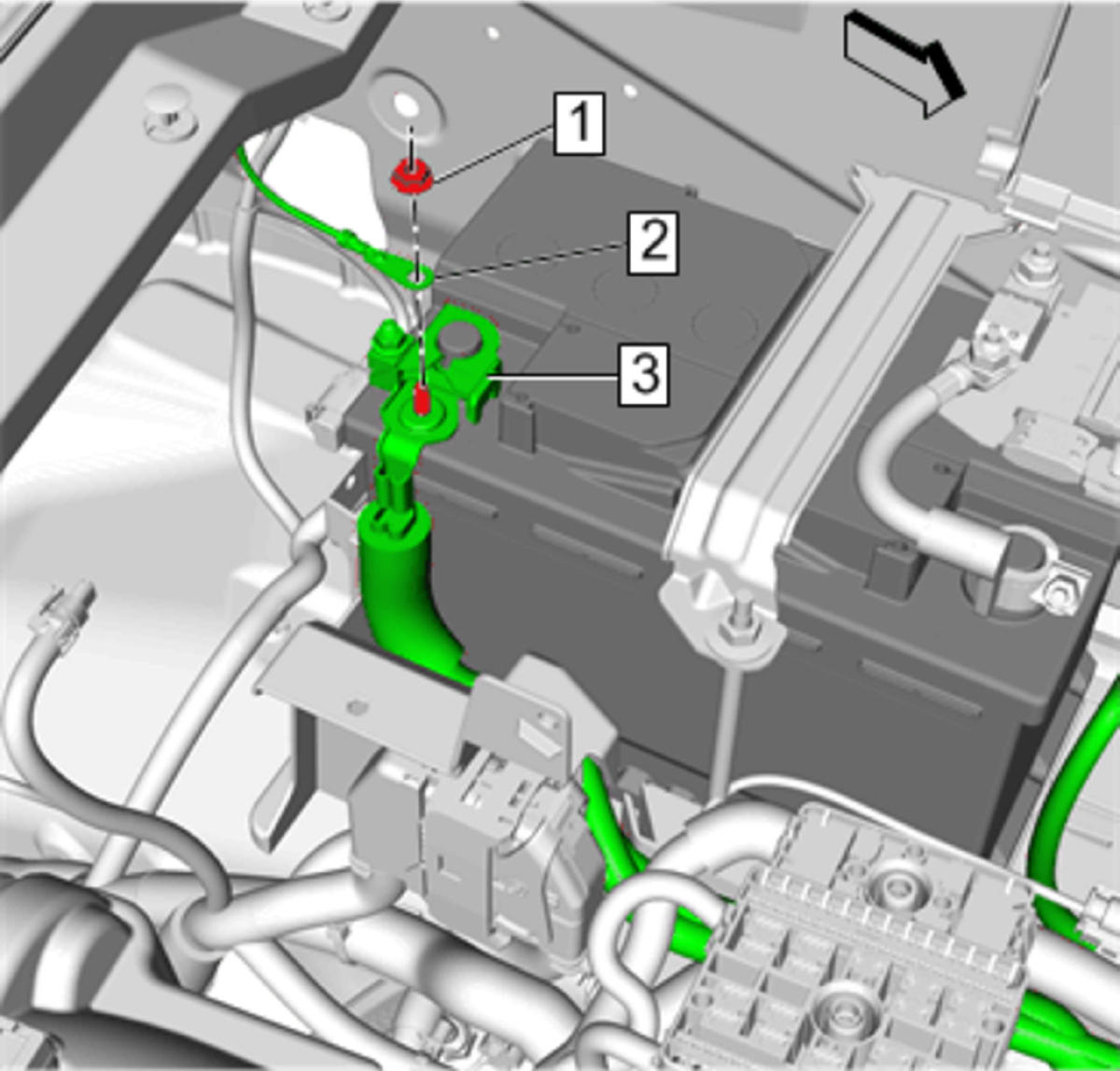

    20. Fig 9: Body Harness Ground Fastener And Body Harness Terminal
    GM4564758Courtesy of GENERAL MOTORS COMPANY
  20. Install Body Harness Ground Fastener (1) @ Battery Negative Post Clamp (3) and tighten 9 N.m (80 lb in)
