Lane Departure Warning and Forward Collision Alert (UEU/UFL)

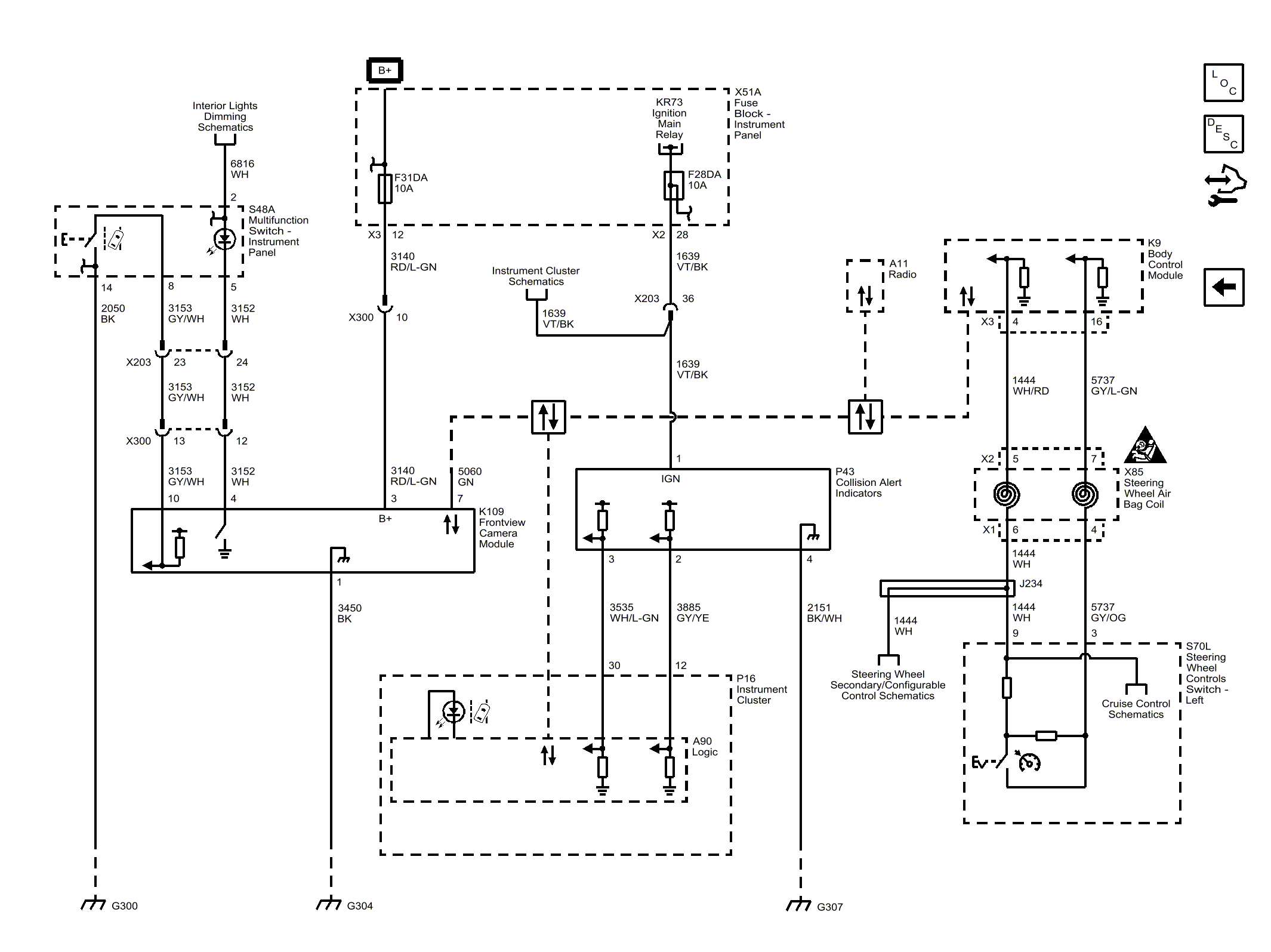

Fig 1: Lane Departure Warning and Forward Collision Alert (UEU/UFL)

GM4507661

Courtesy of GENERAL MOTORS COMPANY
