Cruise Control

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

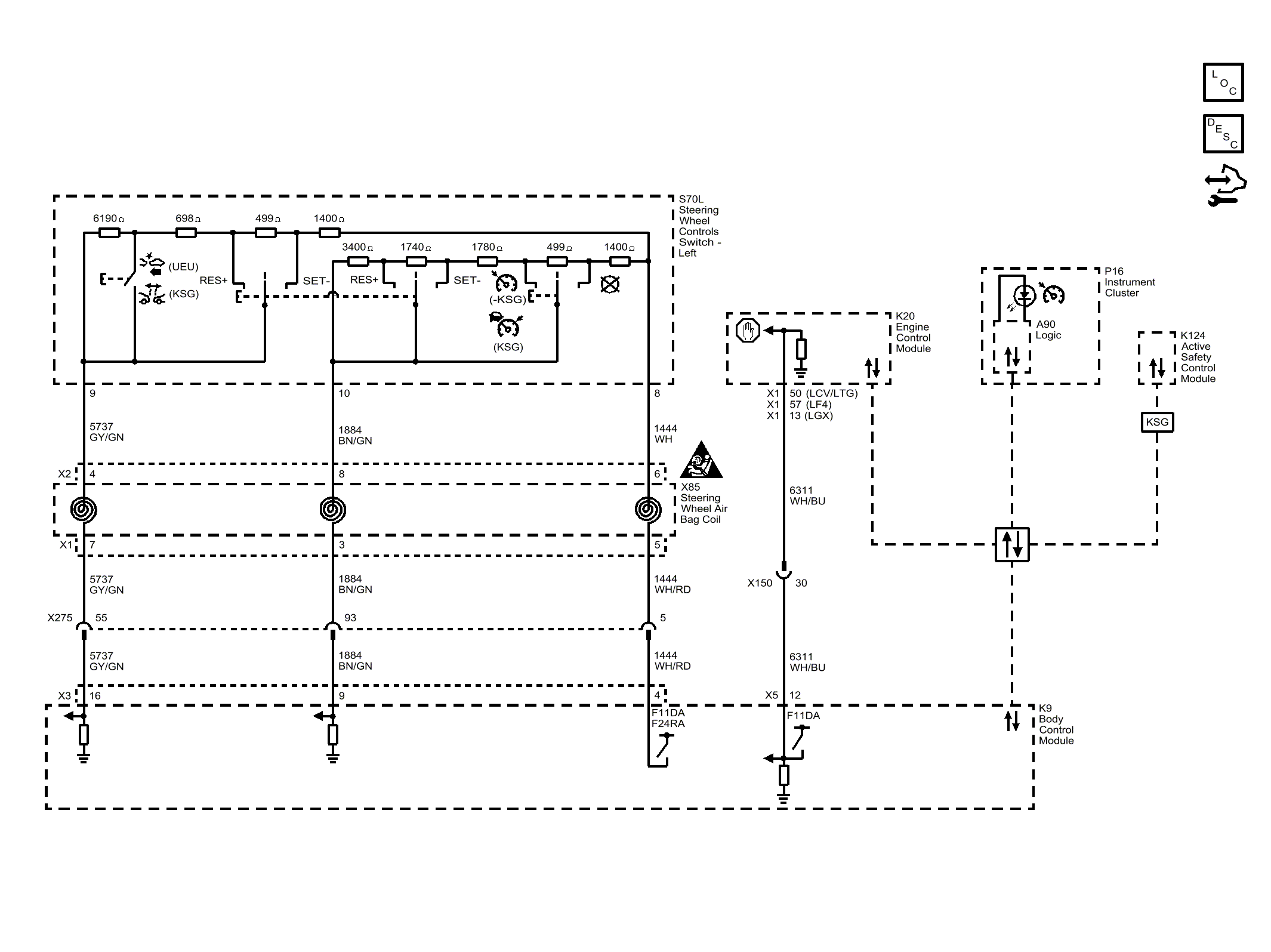

Fig 1: Cruise Control
GM4050664Courtesy of GENERAL MOTORS COMPANY
