Camshaft Position Sensor Replacement - Exhaust

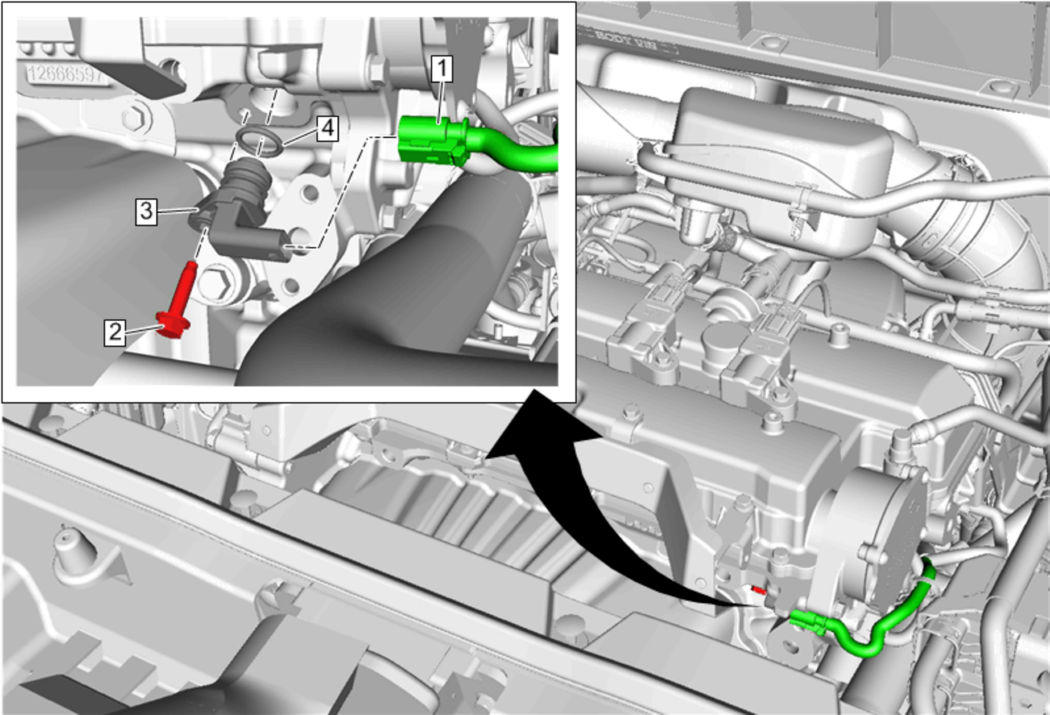

Fig 1: Camshaft Position Sensor - Exhaust

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
1	Electrical Connector
2	Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
3	Camshaft Position Sensor
4	Camshaft Position Sensor Seal Ring Procedure  Install a NEW camshaft position sensor seal ring.
