Installation Procedure

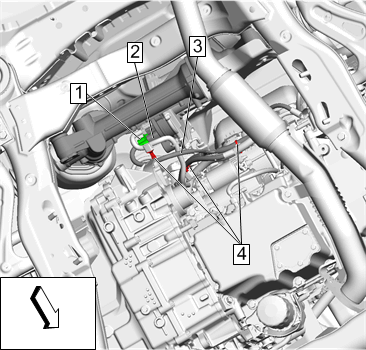

    Fig 1: Electrical Connector
    GM4377691Courtesy of GENERAL MOTORS COMPANY
  1. Connect Electrical Connector (1) @Power Steering Assist Motor (2)
  2. Engage Retainer (4)

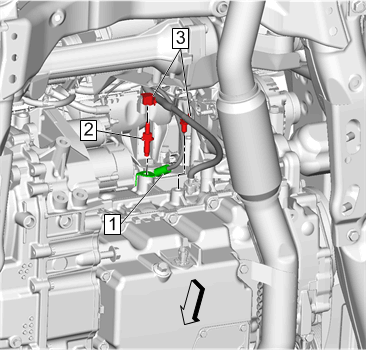

    3. Fig 2: Engine Harness Retainers
    GM4377688Courtesy of GENERAL MOTORS COMPANY
  3. Install Battery Negative Cable (1)
    4. CAUTION:

    Refer to Fastener Caution

  4. Install Battery Negative Cable Ground Stud (2) and tighten 40 N.m (30 lb ft)
  5. Engage Engine Harness Retainers (3)
    6. Fig 3: Protective Cap And Battery Positive Cable
    GM4377685Courtesy of GENERAL MOTORS COMPANY
  6. Install Battery Positive Cable (3)
  7. Install Generator Nut (2) and tighten 15 N.m (11 lb ft)
  8. Install Protective Cap (1)

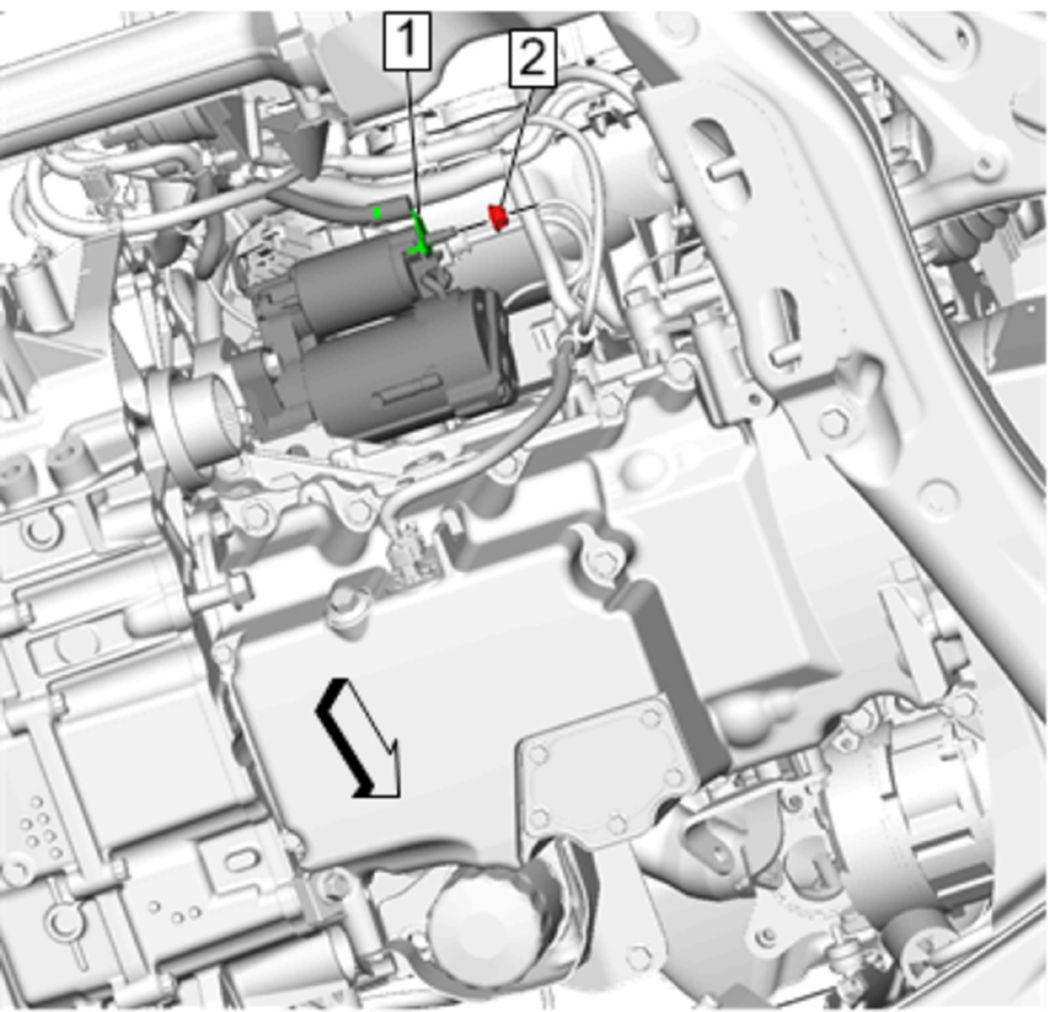

    9. Fig 4: Battery Positive Cable And Nut
    GM4377337Courtesy of GENERAL MOTORS COMPANY
  9. Install Battery Positive Cable (1)
  10. Install Starter Solenoid Cable Nut (2) and tighten 13 N.m (115 lb in)

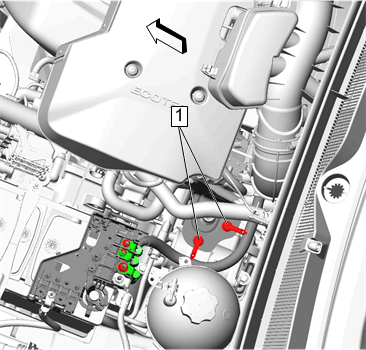

    11. Fig 5: Battery Positive Cable Retainer
    GM4377680Courtesy of GENERAL MOTORS COMPANY
  11. Engage Battery Positive Cable Retainer (4)

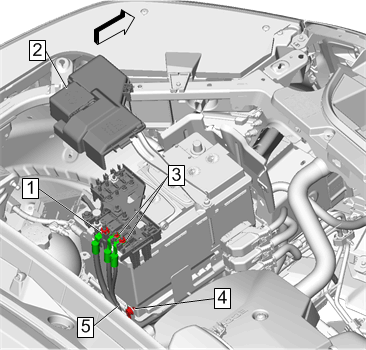

    12. Fig 6: Battery Positive Cable Nut And Battery Distribution Engine Compartment Fuse Block Cover
    GM4377678Courtesy of GENERAL MOTORS COMPANY
  12. Install Battery Positive Cable (5)
  13. Install Battery Positive Cable Nut (1) and tighten 12 N.m (106 lb in)
  14. Install Battery Positive Cable Nut (3) and tighten 9 N.m (80 lb in)
  15. Install Battery Distribution Engine Compartment Fuse Block Cover (2)
  16. Engage Battery Positive Cable Retainer (4)
  17. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) Battery Negative Cable Disconnection and Connection (With KL9)
