Installation Procedure

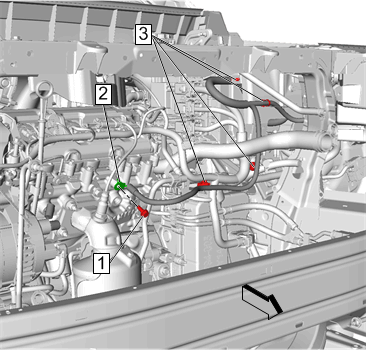

    Fig 1: Battery Negative Cable Ground Fastener
    GM4376056Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Negative Cable (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Battery Negative Cable Ground Fastener (1) and tighten 22 N.m (16 lb ft)
  3. Engage Retainer (3)
    4. Fig 2: Battery Negative Cable And Battery Negative Cable Frame Ground Fastener
    GM4285808Courtesy of GENERAL MOTORS COMPANY
  4. Install Battery Negative Cable (2)
  5. Install Battery Negative Cable Frame Ground Fastener (1) and tighten 9 N.m (80 lb in)

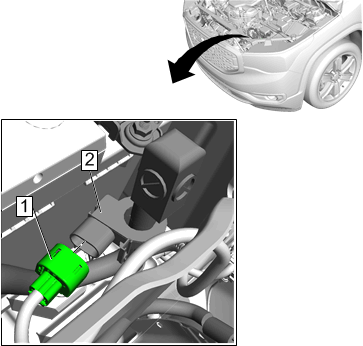

    6. Fig 3: Electrical Connector
    GM4376055Courtesy of GENERAL MOTORS COMPANY
  6. Connect Electrical Connector (1) @Battery Current Sensor (2)
  7. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Without KL9)

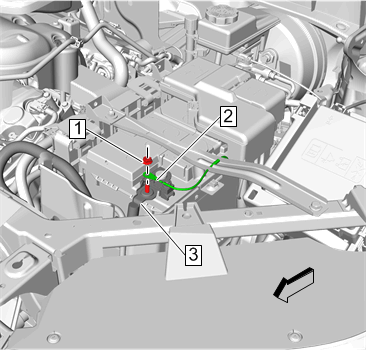

    8. Fig 4: Body Harness Ground Fastener
    GM4769958Courtesy of GENERAL MOTORS COMPANY
  8. Install Body Harness Terminal (2)
  9. Install Body Harness Ground Fastener (1) @Battery Negative Cable (3) and tighten 9 N.m (80 lb in)
