Power Door Lock System And Release Systems
>>
Schematic Wiring Diagrams
>>
Release Systems Wiring Schematics
>>
Release Systems Schematics
Release Systems Schematics

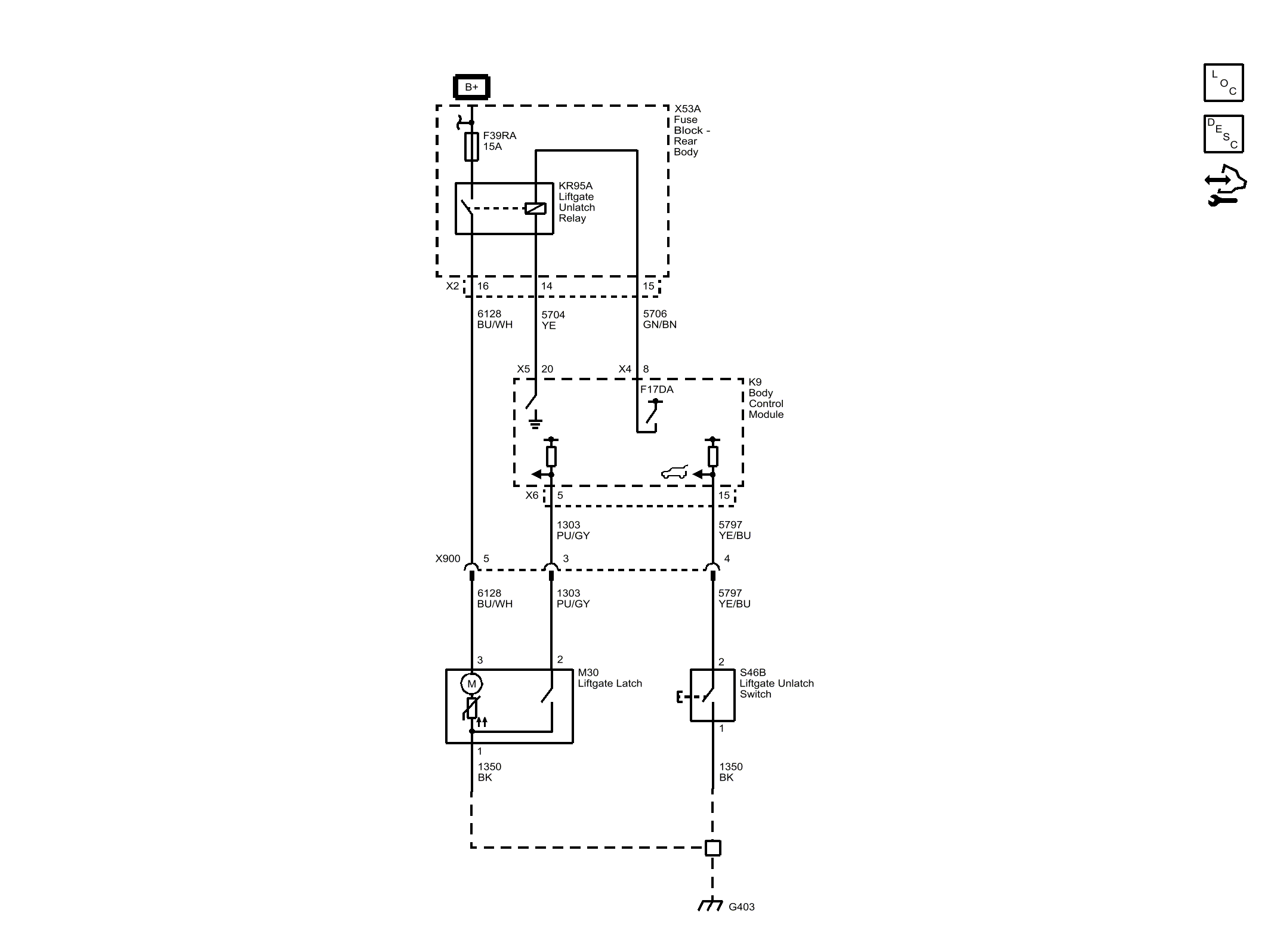

Fig 1: Release Systems Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
