Intake Air Duct Replacement

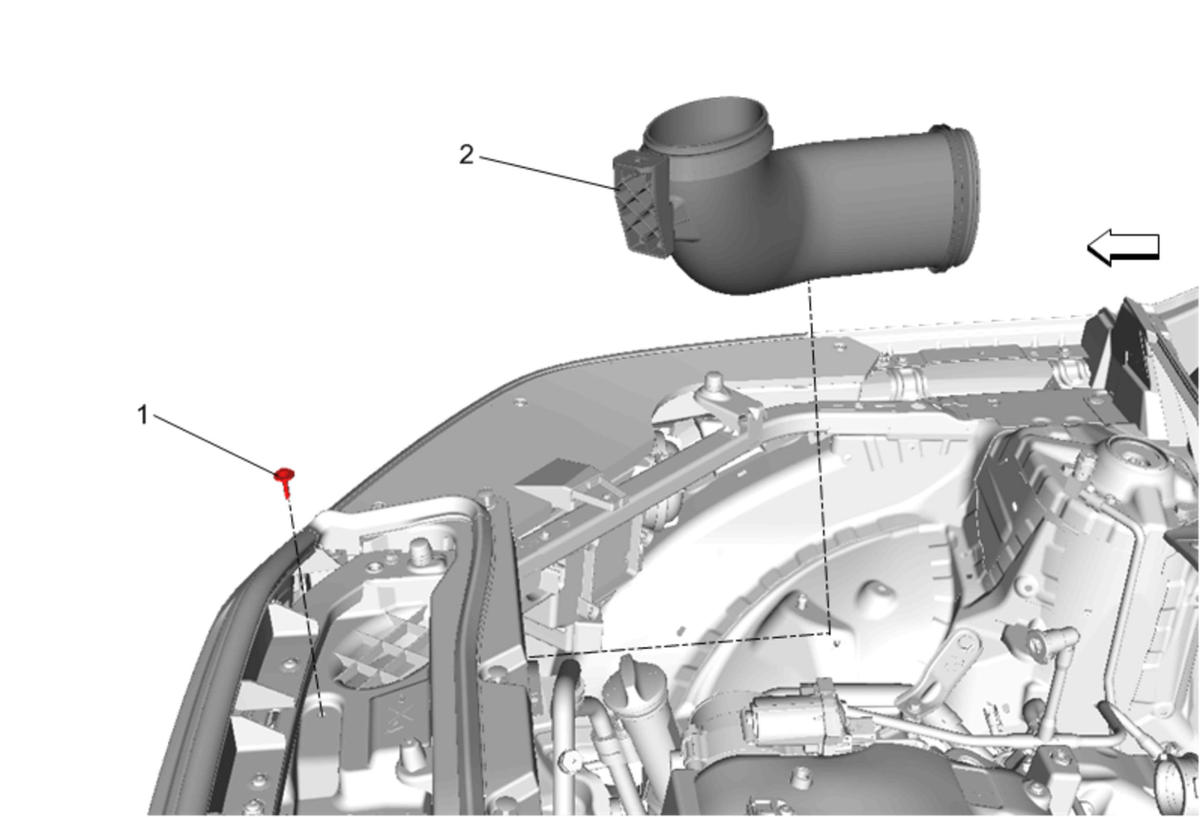

Fig 1: Intake Air Duct
GM4774578Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Air Cleaner Assembly. Refer to Air Cleaner Assembly Replacement
1 Intake Air Duct Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Intake Air Duct
