Installation Procedure
- Install Steering Gear (2)
- Install Steering Gear Bolt (1) and tighten 110 N.m (81 lb ft)
Install NEW bolts.
- Completely install the drivetrain and front suspension frame. Drivetrain and Front Suspension Frame Replacement
- Install Power Steering Fluid Cooling Pipe (1) @Steering Gear Power Steering Fluid Cooling Pipe Replacement
- Install Power Steering Gear Inlet Hose (1) @Steering Gear Power Steering Gear Inlet Pipe/Hose Replacement

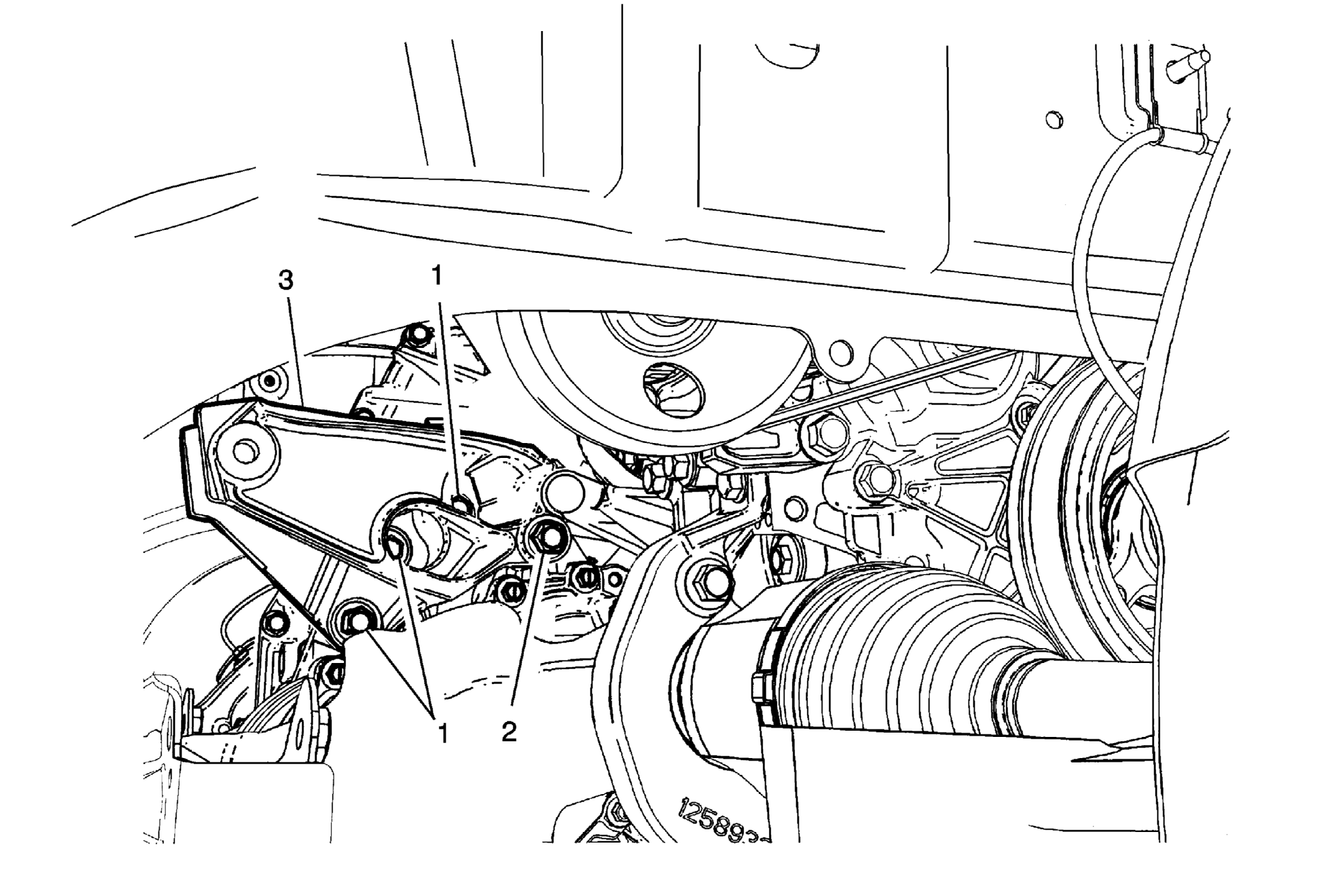

- Install Transmission Rear Mount Bracket (3)Transmission Rear Mount Bracket Replacement (AWD)

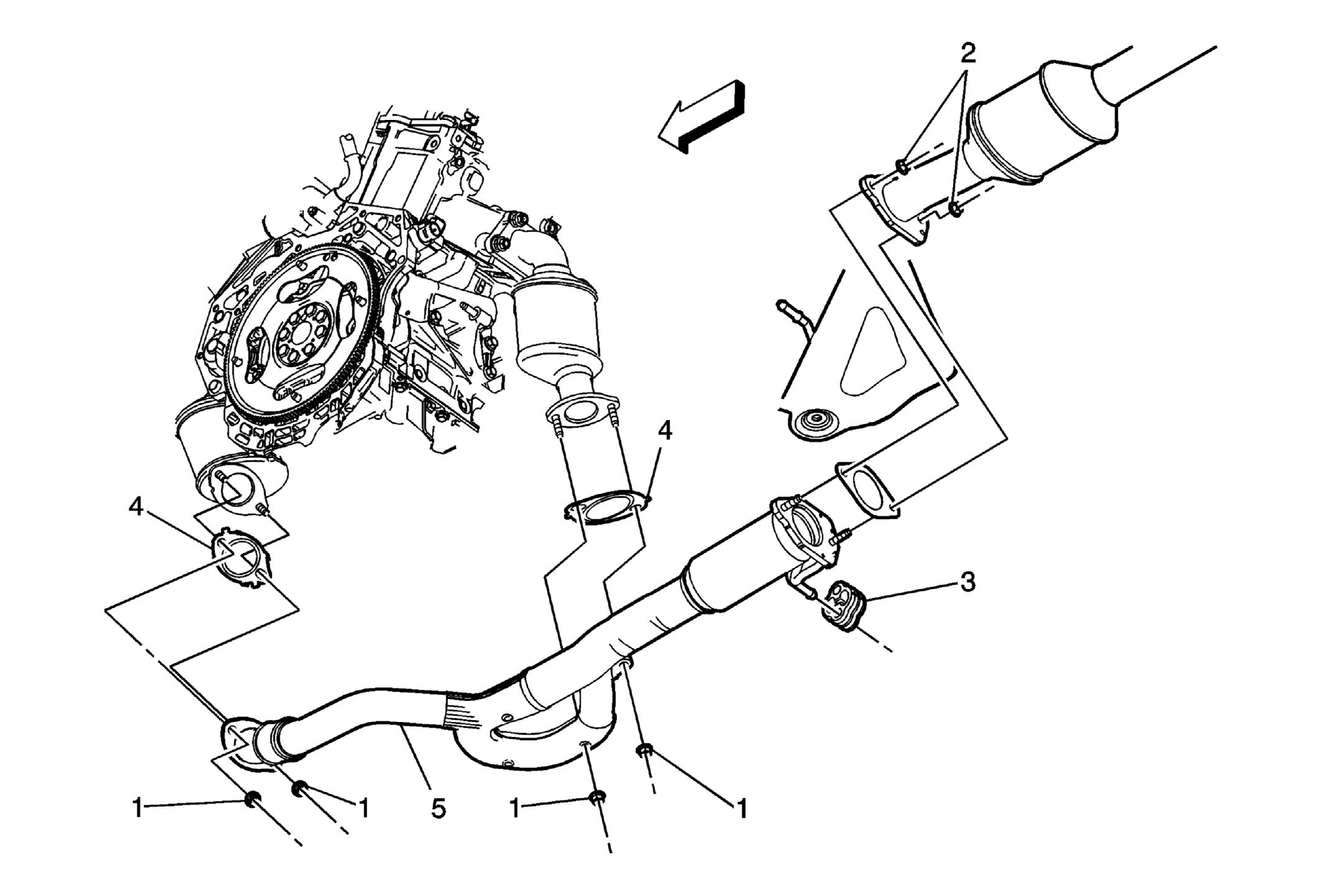

- Install Exhaust Flexible Pipe (5) Exhaust Flexible Pipe Replacement (LFX)
- Install Propeller Shaft (1) Propeller Shaft Replacement

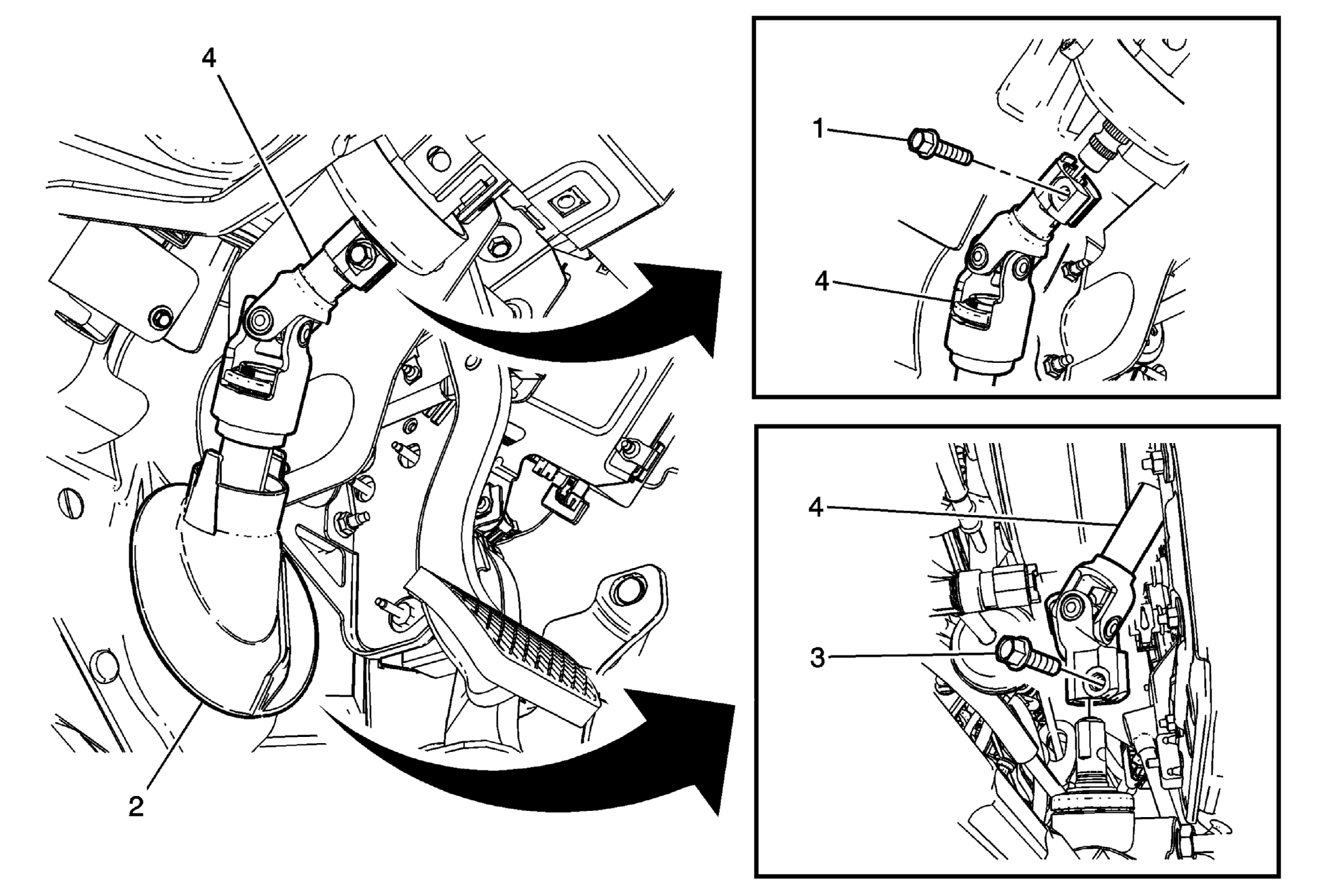

- Install Intermediate Steering Shaft (4) @Steering Gear Intermediate Steering Shaft Replacement

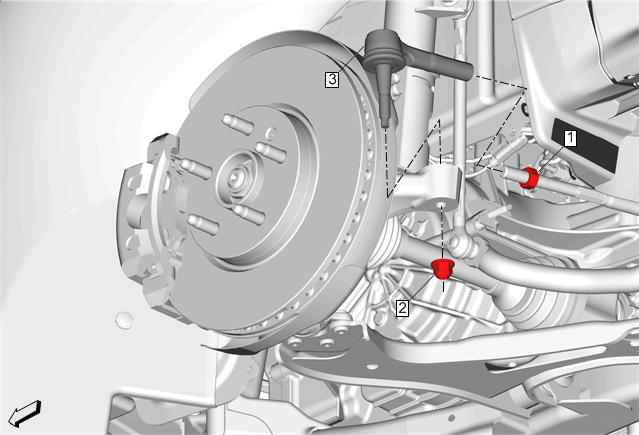

- Install Steering Linkage Outer Tie Rod (3) @Steering Knuckle Steering Linkage Outer Tie Rod Replacement
- Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation
- Fill and bleed the power steering system. Power Steering System Bleeding

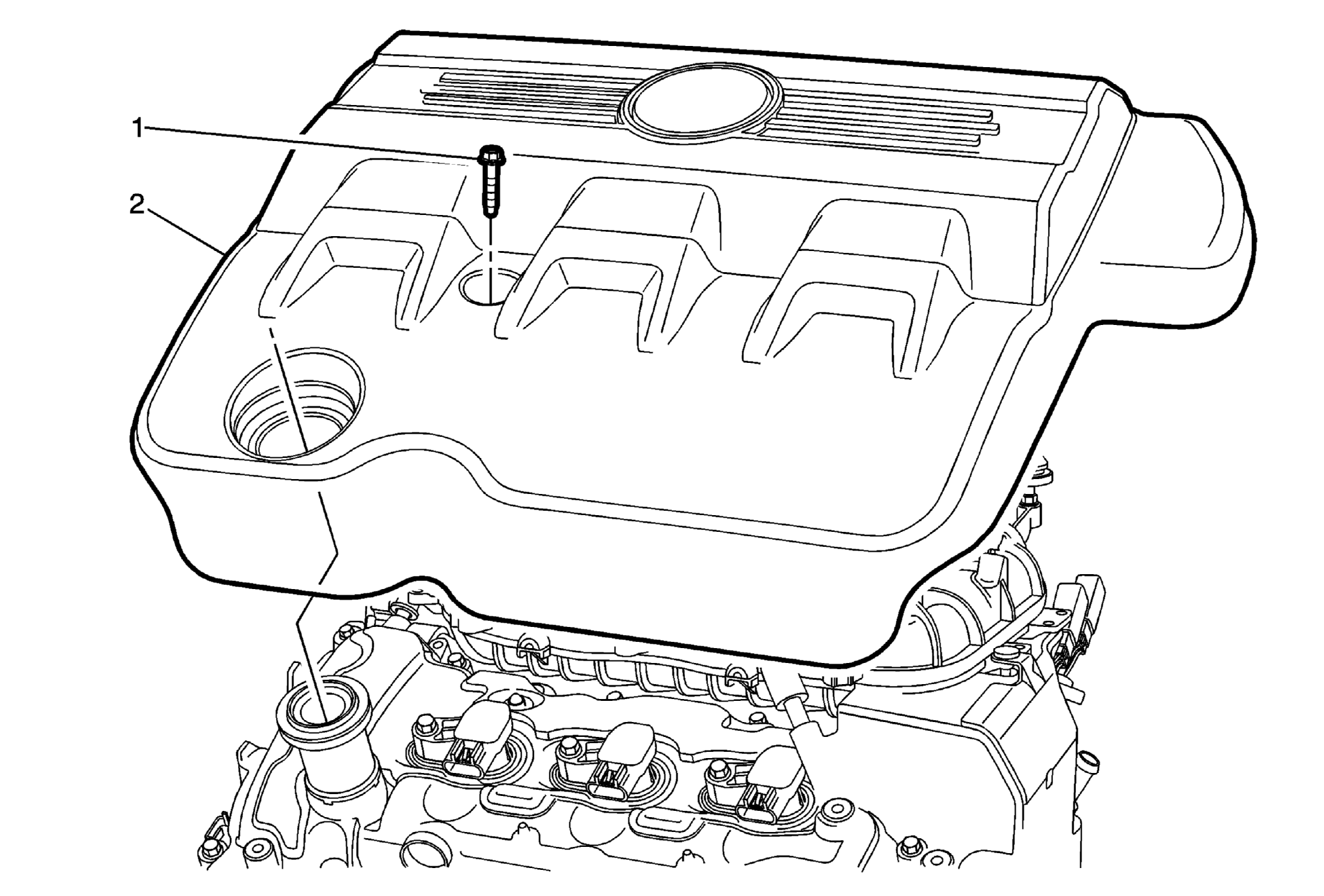

- Install Intake Manifold Cover (2)Intake Manifold Cover Replacement
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
