Installation Procedure

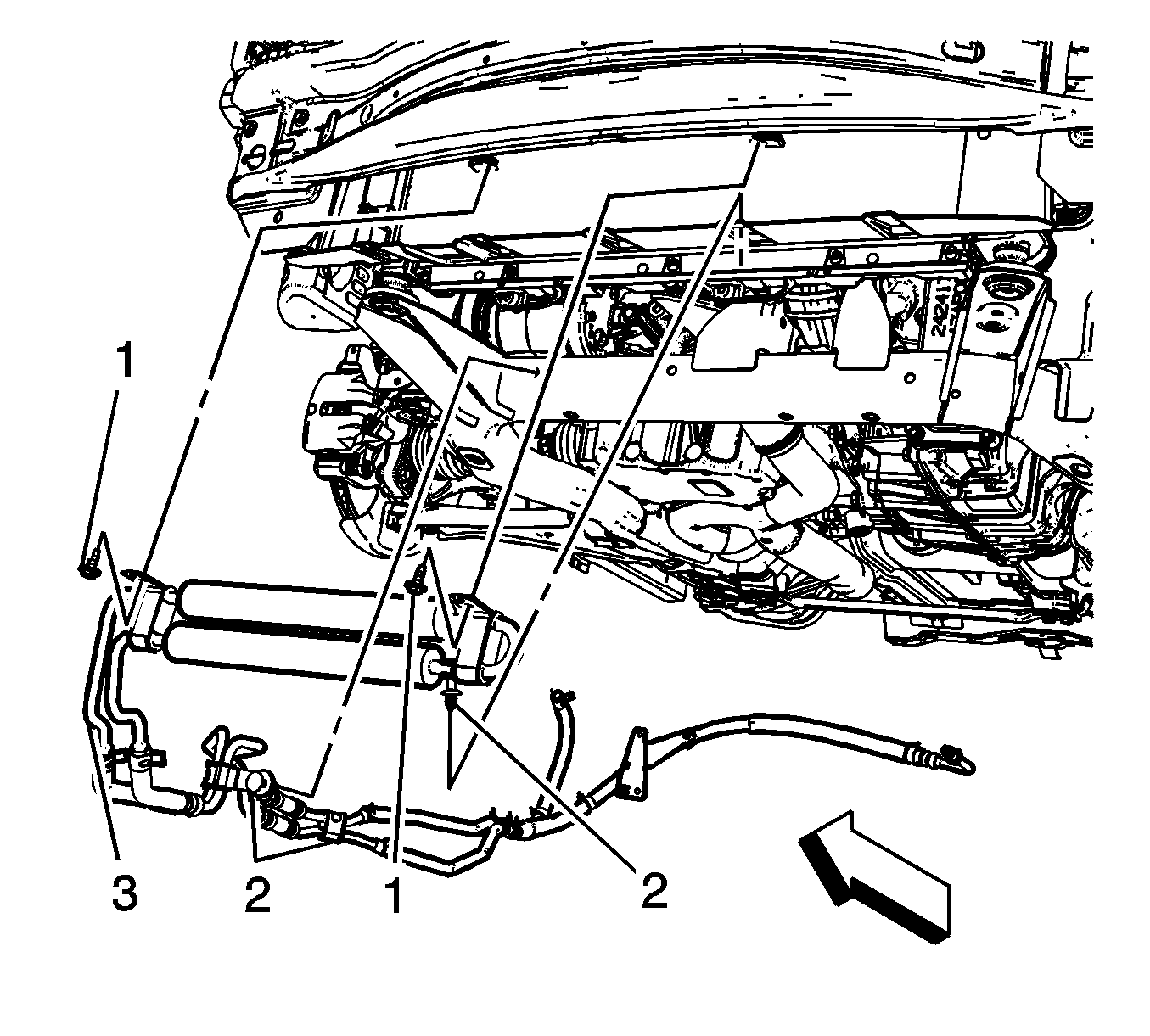

    Fig 1: Power Steering Fluid Cooling Pipe Components
    GM2256930Courtesy of GENERAL MOTORS COMPANY
  1. Remove Power Steering Fluid Cooling Pipe (3)
  2. Install Power Steering Fluid Cooling Pipe Retainer (2)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install Power Steering Fluid Cooling Pipe Bracket Bolt (1) @Power Steering Fluid Cooling Pipe Bracket and tighten 9 N.m (80 lb in)

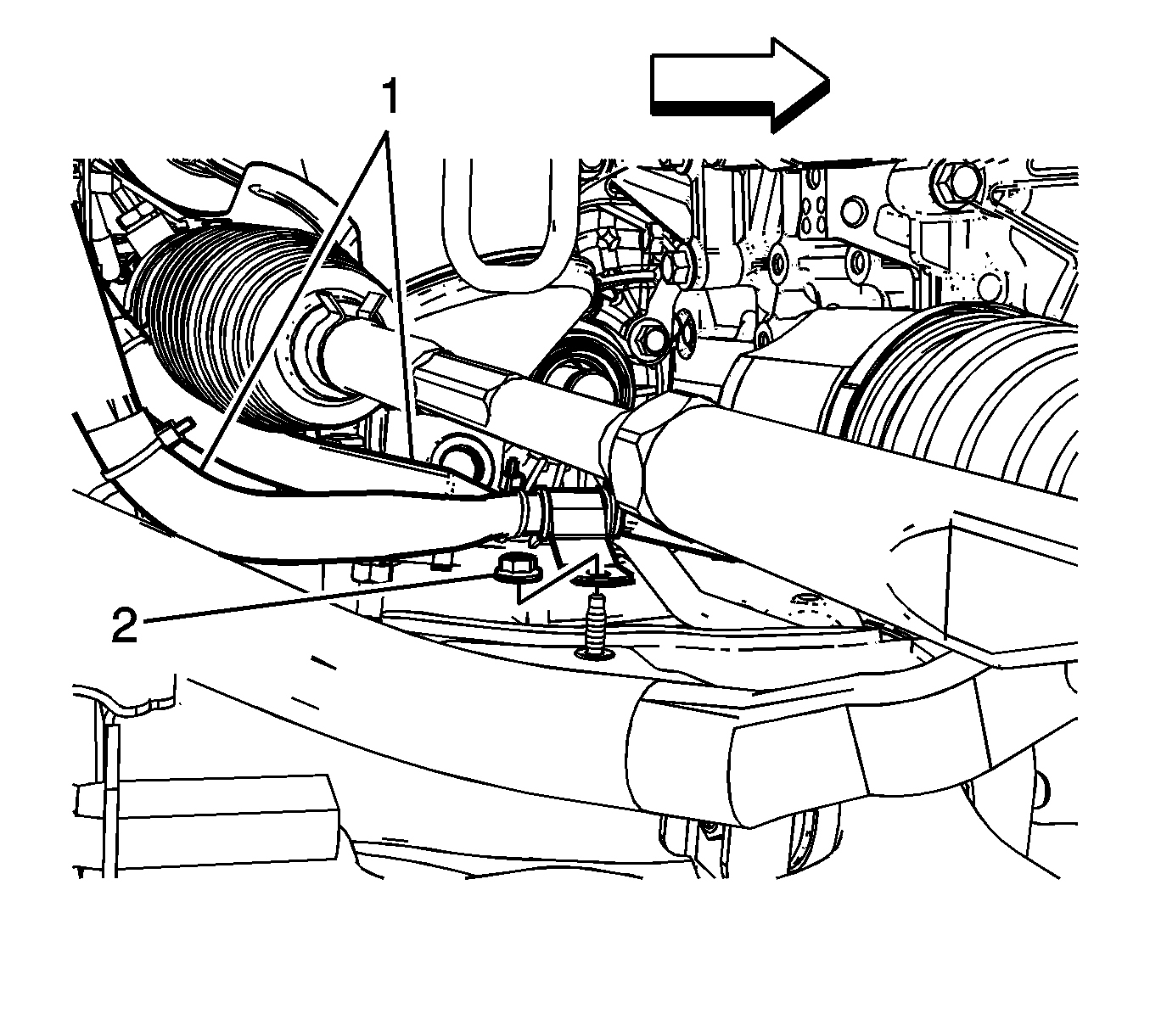

    4. Fig 2: Power Steering Fluid Cooling Pipe Nut
    GM2255377Courtesy of GENERAL MOTORS COMPANY
  4. Install Power Steering Fluid Cooling Pipe Bracket Nut (2) @Power Steering Fluid Cooling Pipe Bracket and tighten 9 N.m (80 lb in)

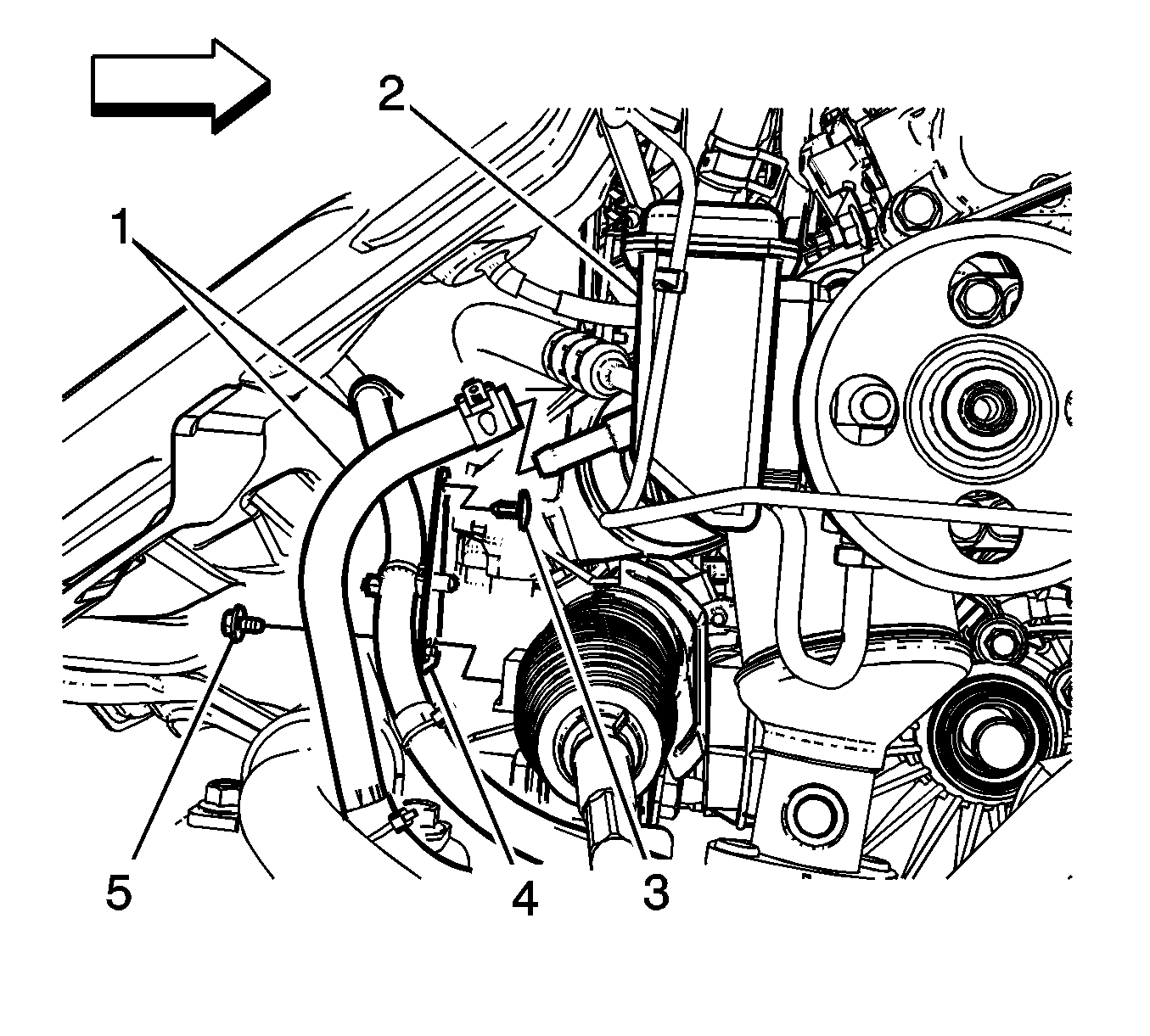

    5. Fig 3: Power Steering Fluid Cooling Pipe And Lower Power Steering Fluid Reservoir
    GM2255240Courtesy of GENERAL MOTORS COMPANY
  5. Install Power Steering Fluid Cooling Pipe Bracket Bolt (5) @Power Steering Fluid Cooling Pipe Bracket (4) and tighten 9 N.m (80 lb in)
  6. Install Power Steering Gear Heat Shield Retainer (3) @Power Steering Gear Heat Shield
  7. Install Power Steering Fluid Cooling Pipe (1) @Power Steering Fluid Reservoir - Lower (2)

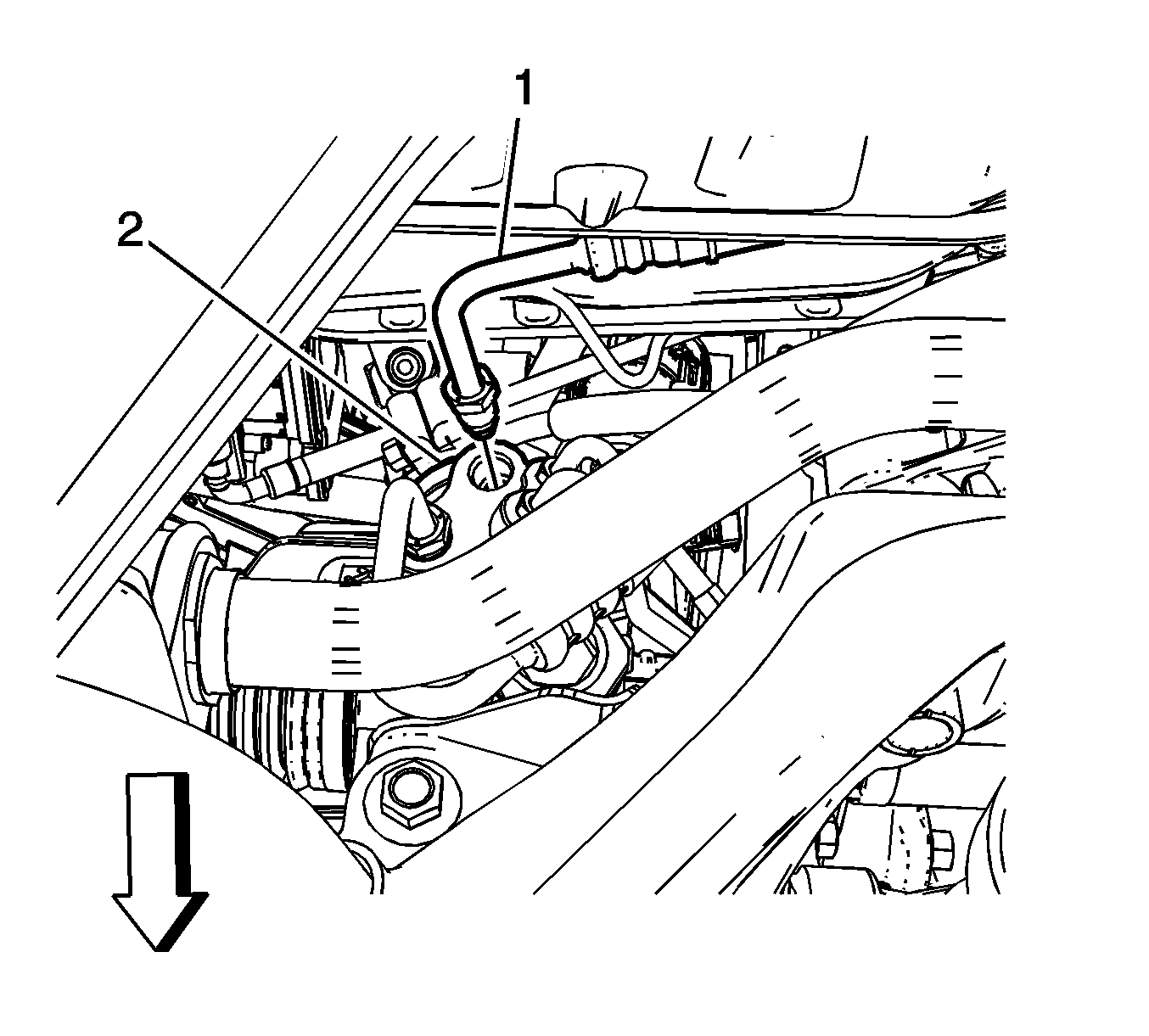

    8. Fig 4: Power Steering Fluid Cooling Pipe And Power Steering Gear
    GM2255189Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

  8. Install Power Steering Fluid Cooling Pipe (1) @Steering Gear (2) and tighten 34 N.m (25 lb ft)

    Install a NEW seal.

  9. Install Front Bumper Fascia Front Bumper Fascia Replacement (Equinox)Front Bumper Fascia Replacement (Terrain)
  10. Fill and bleed the power steering system. Power Steering System Bleeding
  11. Install Intake Manifold Cover Intake Manifold Cover Replacement
