Aiming Procedure

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Fog Lamp Alignment Points
    GM276650Courtesy of GENERAL MOTORS COMPANY
  1. Park the vehicle 7.6 m (25 ft) away from the target screen.
  2. Measure from the center of the fog lamp to the ground line. Using this measurement, mark the horizontal centerline (2) of the fog lamp on the target screen directly in front of the vehicle
  3. Turn ON the fog lamps. The top of the fog lamp beam image (4) on the target screen should be 114 mm (4 in) below the center of the fog lamp lens height.

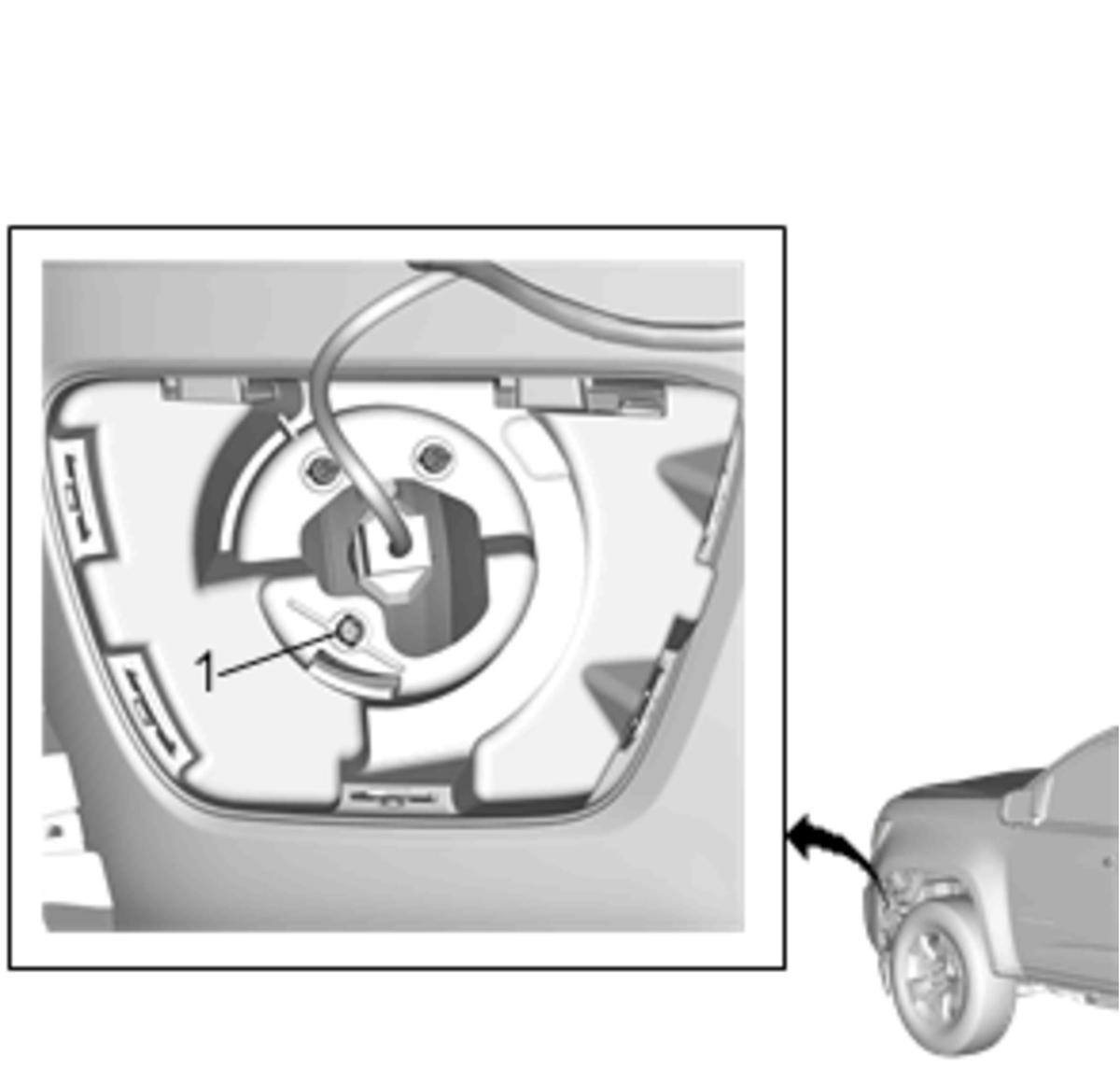

    4. Fig 2: Front Fog Lamp Adjusting Screw
    GM3794434Courtesy of GENERAL MOTORS COMPANY
  4. Adjust the fog lamp as required using the front fog lamp (1) adjusting screw at the rear lower portion of the projector lens. Pull back the front wheelhouse liner to access the adjusting screw.
  5. Turn OFF the fog lamps.
