Fuel Pressure Sensor Replacement - Fuel Feed Pipe

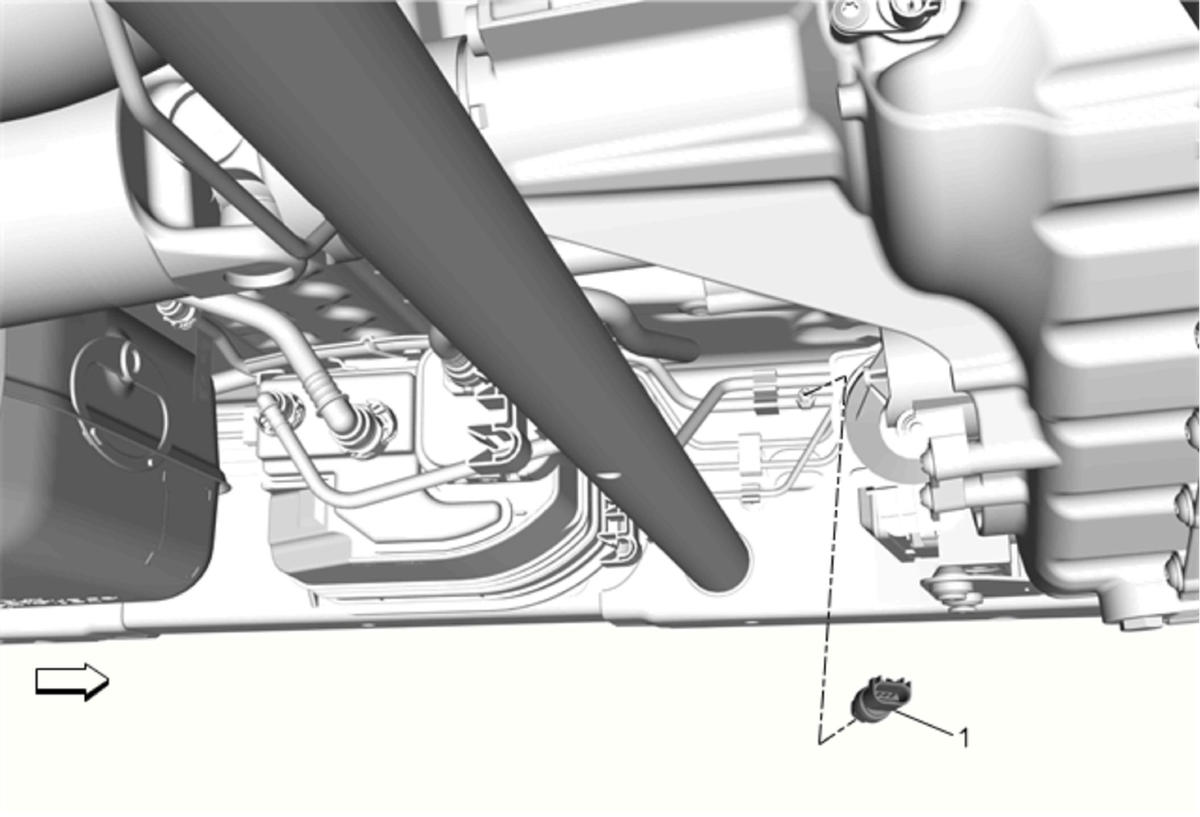

Fig 1: Fuel Pressure Sensor - Fuel Feed Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Relieve the fuel system pressure. Refer to Fuel Pressure Relief . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Fuel Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the fuel pressure sensor electrical connector. Tighten 15 N.m (11 lb ft)

Callout

Component Name

Preliminary Procedure

Fuel Pressure Sensor

CAUTION:

Procedure
Disconnect the fuel pressure sensor electrical connector.
Tighten
15 N.m (11 lb ft)
