Rear Side Door Outside Handle Bracket Replacement: Notes

  1. Remove the rear side door outside handle. Refer to Rear Side Door Outside Handle Replacement .

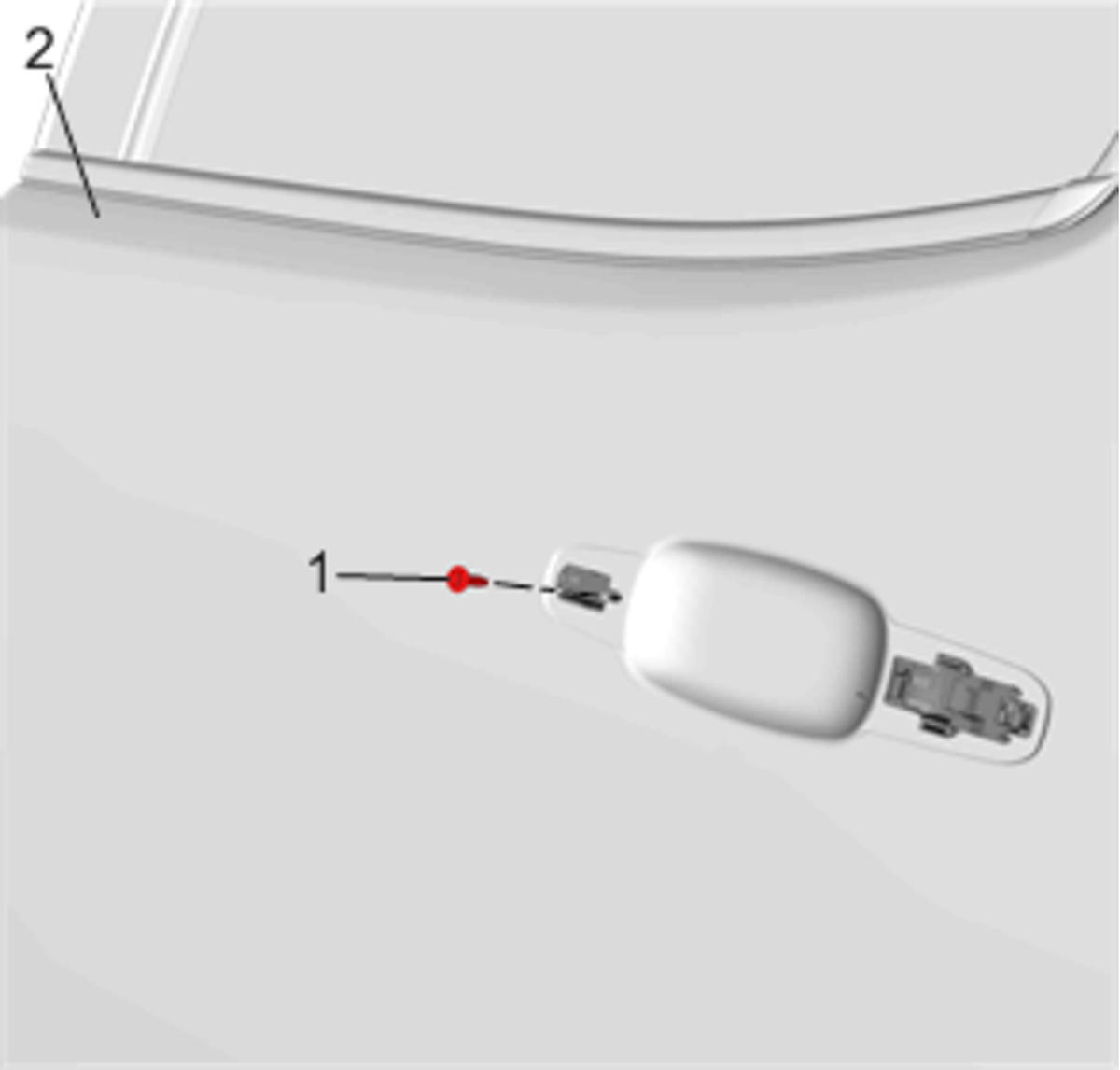

    2. Fig 1: Fastener
    GM3766594Courtesy of GENERAL MOTORS COMPANY
  2. Remove the fastener (1) that retains the rear side door outside bracket to the door (2).

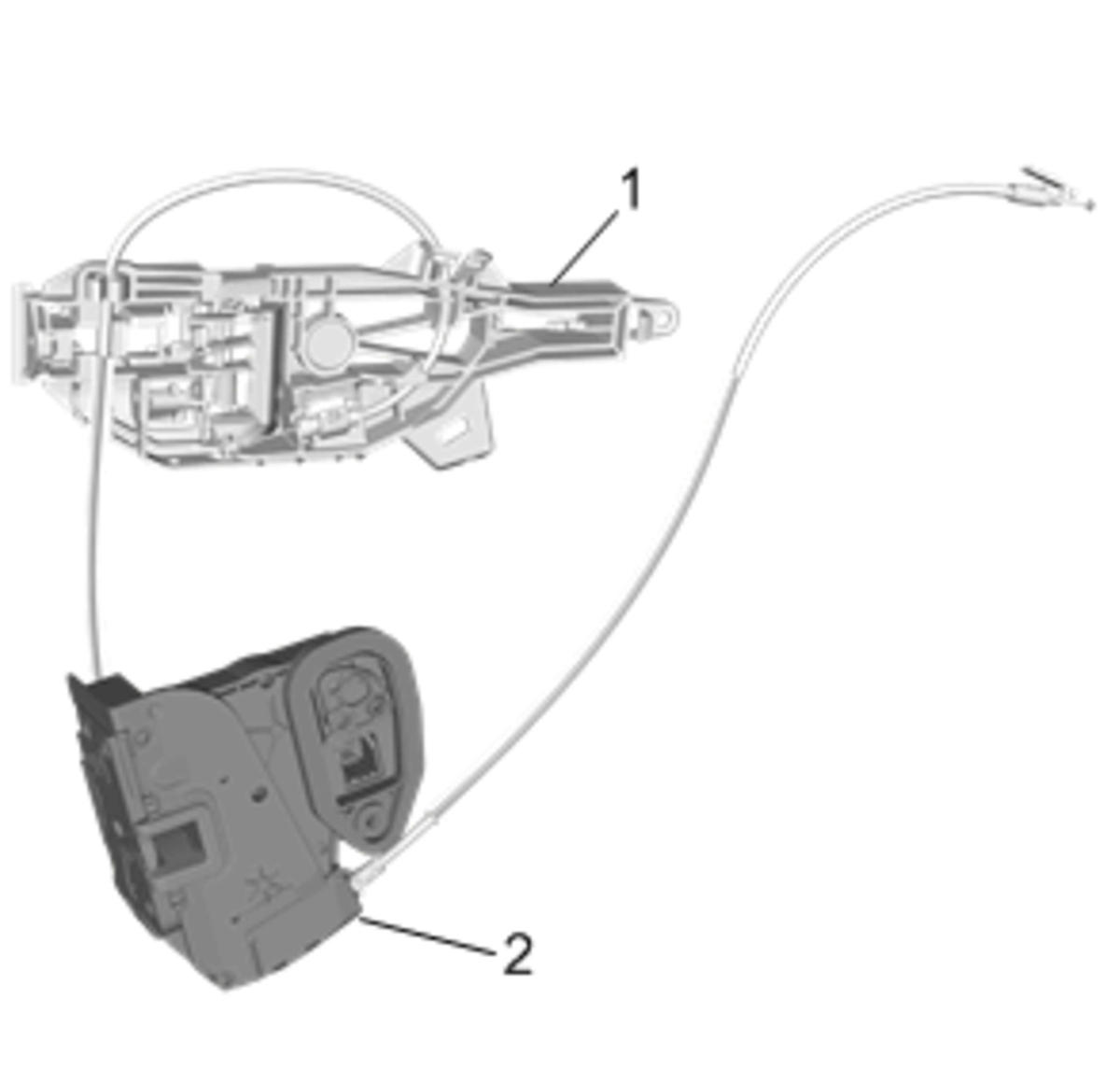

    3. Fig 2: Outside Handle Bracket
    GM3766542Courtesy of GENERAL MOTORS COMPANY
  3. Remove the outside handle bracket (1) and the rear side door latch (2) assembly from the vehicle as one. Refer to Rear Side Door Latch Replacement .

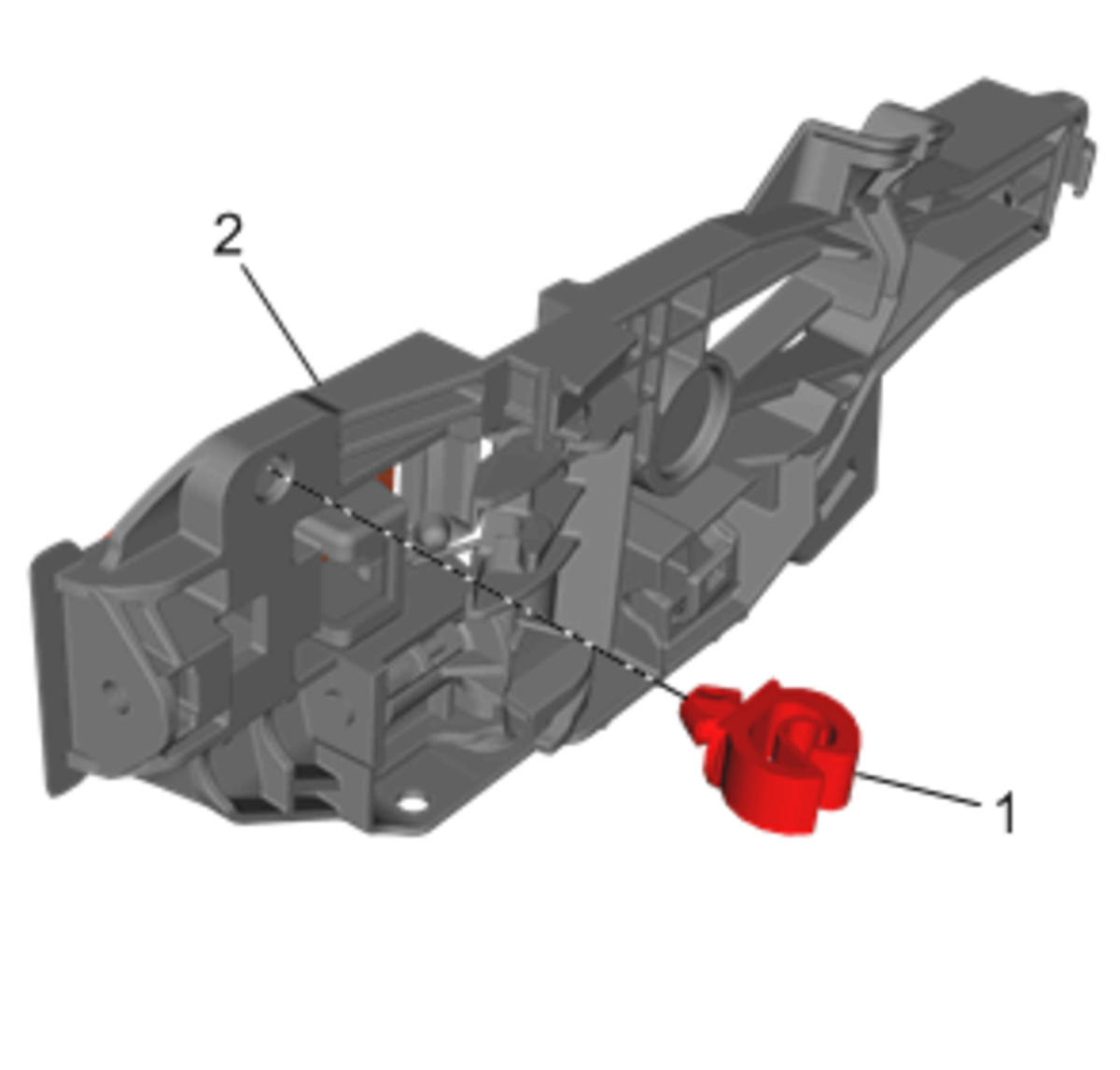

    4. Fig 3: Rear Side Door Outside Handle Cable Retainer
    GM3766595Courtesy of GENERAL MOTORS COMPANY
  4. Remove the rear side door outside handle cable retainer (1) from the bracket (2).
  5. Remove the rear side door outside handle cable. Refer to Rear Side Door Outside Handle Cable Replacement .
