Front Side Door Window Regulator Motor Replacement

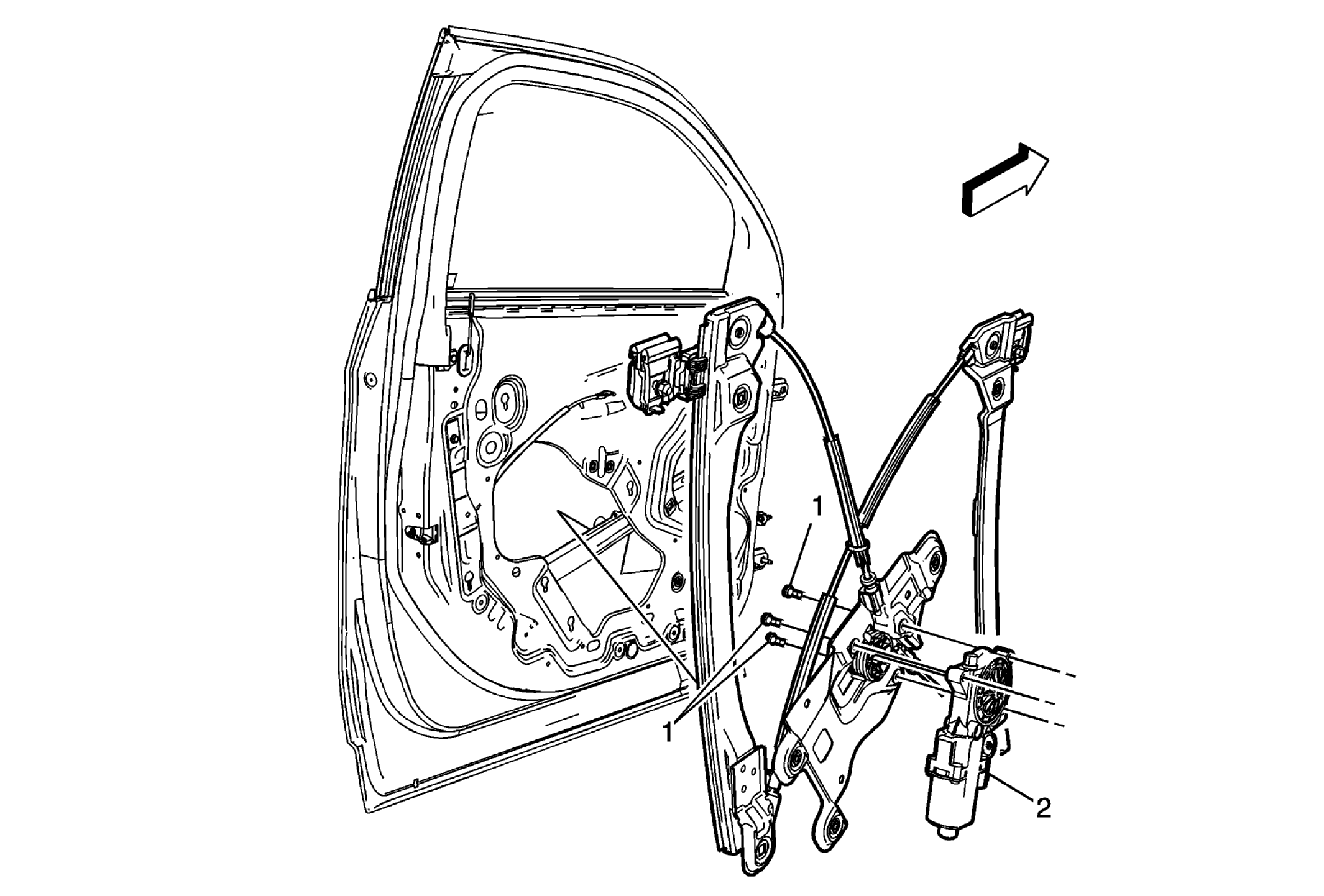

Fig 1: Front Side Door Window Regulator Motor
GM2234109Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement
1 Front Side Door Window Regulator Motor Bolt (Qty: 3)
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Front Side Door Window Regulator Motor
Procedure
Inspect the operation of the window before installing the door trim panel.
