Cruise Control Schematics

WARNING: This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

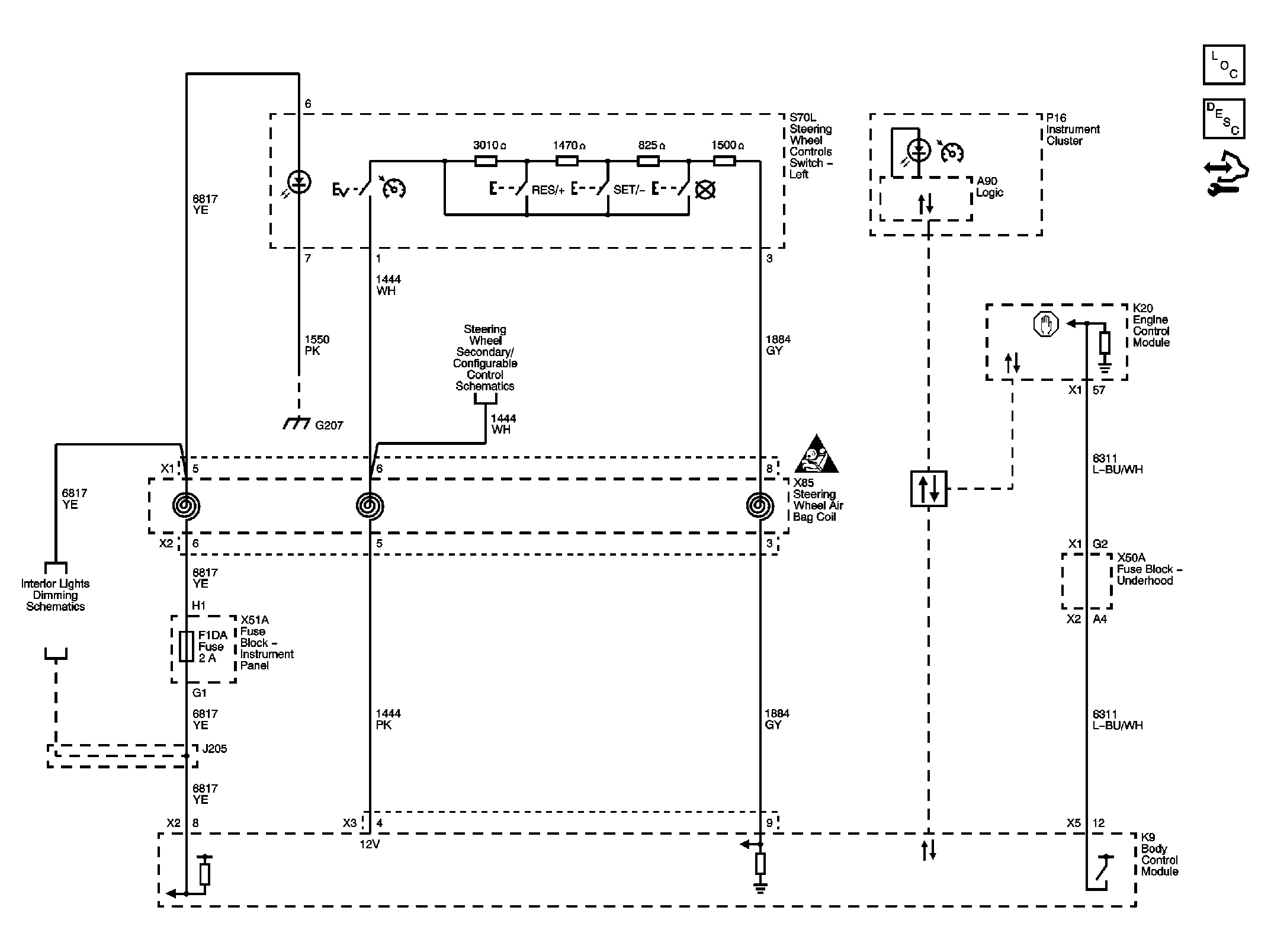

Fig 1: View Of Cruise Control Schematic
GM2232708Courtesy of GENERAL MOTORS CORP.
