Cruise Control Switch Replacement (NP5)

WARNING: This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

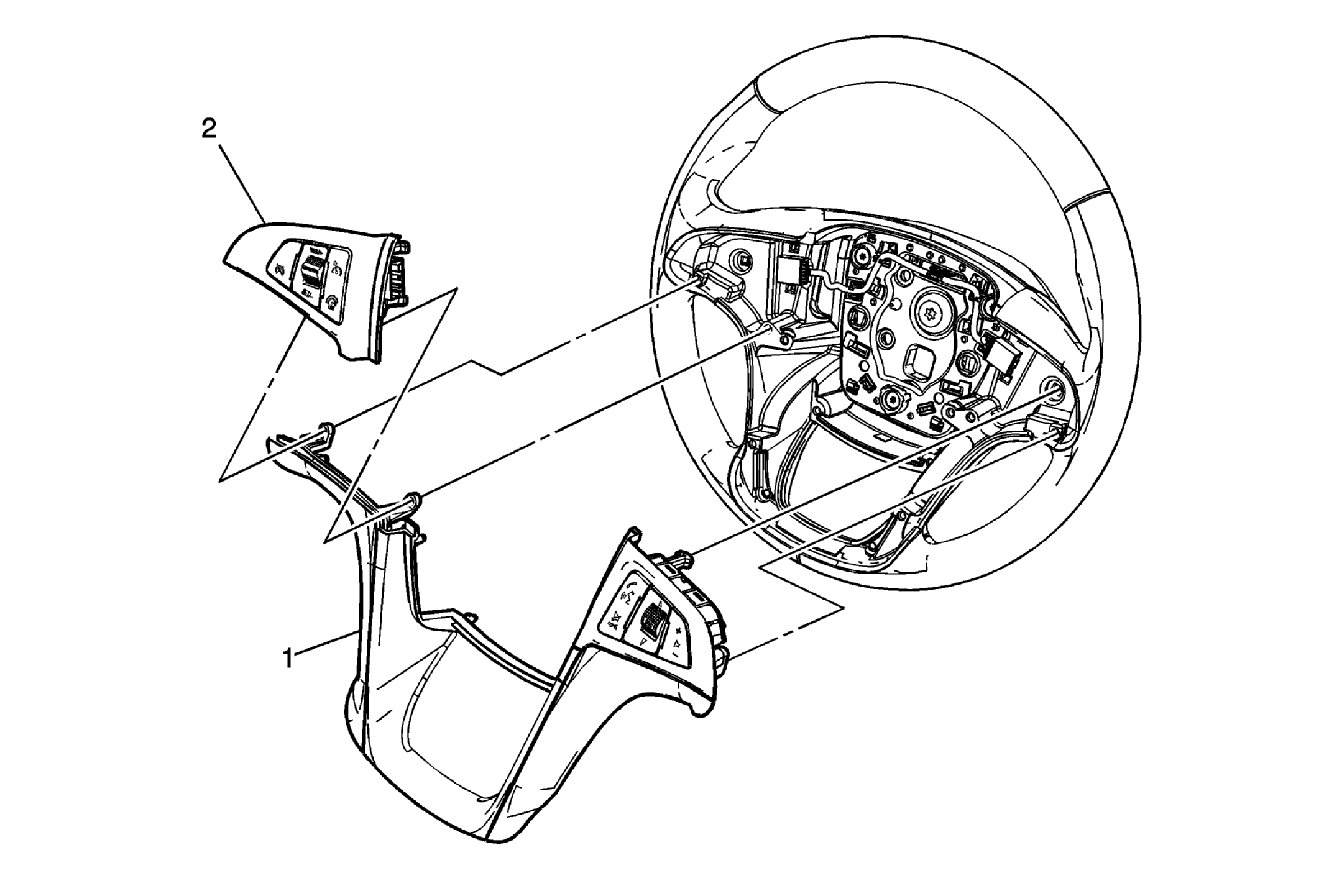

Fig 1: Identifying Cruise Control Switch Components (NP5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Spoke Cover
2	Cruise Control Switch Procedure Use flat bladed tool to release the switch from steering wheel. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .

Steering Wheel Spoke Cover

Cruise Control Switch

Procedure

Use flat bladed tool to release the switch from steering wheel.
Disconnect the electrical connector.
