Digital Video Antenna Cable Replacement

WARNING: This page is about a different car, the 2012 GMC Terrain and 2012 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

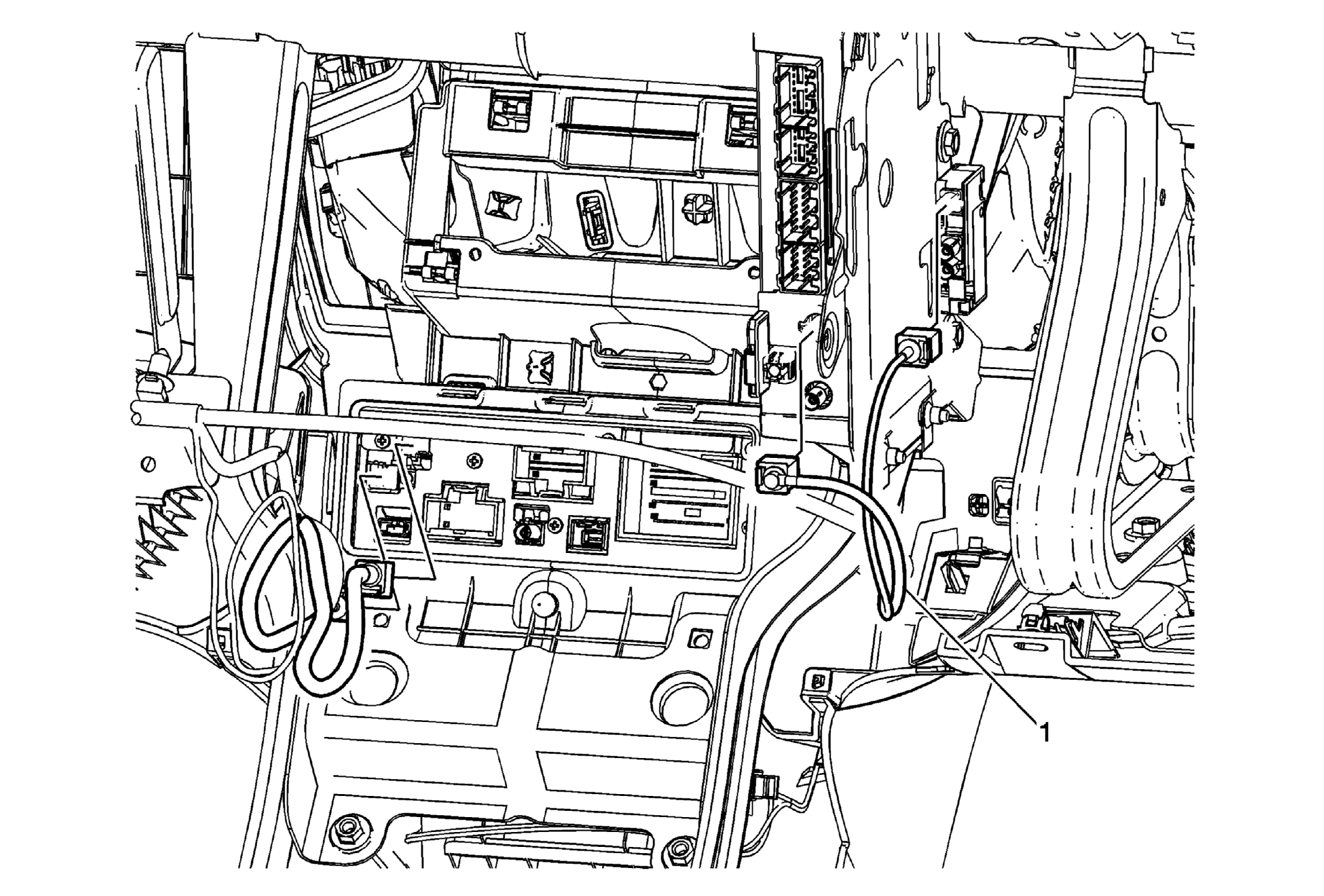

Fig 1: Digital Video Antenna Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the radio. Refer to Radio Replacement . Remove the driver side knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Equinox) , Driver Knee Bolster Reinforcement Replacement (Terrain) . Remove the instrument panel compartment door. Refer to Instrument Panel Compartment Door Replacement (Terrain) , Instrument Panel Compartment Door Replacement (Equinox) Remove the windshield side garnish molding. Refer to Windshield Side Garnish Molding Replacement
1	Digital Video Antenna Cable Procedure Disconnect all of the electrical connectors. Cable connects to the radio, communication interface module, and the navigation signal splitter. Note the cable routing prior to removal for installation purposes.

Callout

Component Name

Preliminary Procedures

Remove the radio. Refer to Radio Replacement .
Remove the driver side knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Equinox) , Driver Knee Bolster Reinforcement Replacement (Terrain) .
Remove the instrument panel compartment door. Refer to Instrument Panel Compartment Door Replacement (Terrain) , Instrument Panel Compartment Door Replacement (Equinox)
Remove the windshield side garnish molding. Refer to Windshield Side Garnish Molding Replacement

Digital Video Antenna Cable

Procedure

Disconnect all of the electrical connectors. Cable connects to the radio, communication interface module, and the navigation signal splitter.
Note the cable routing prior to removal for installation purposes.
