Driver or Passenger Seat Side Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

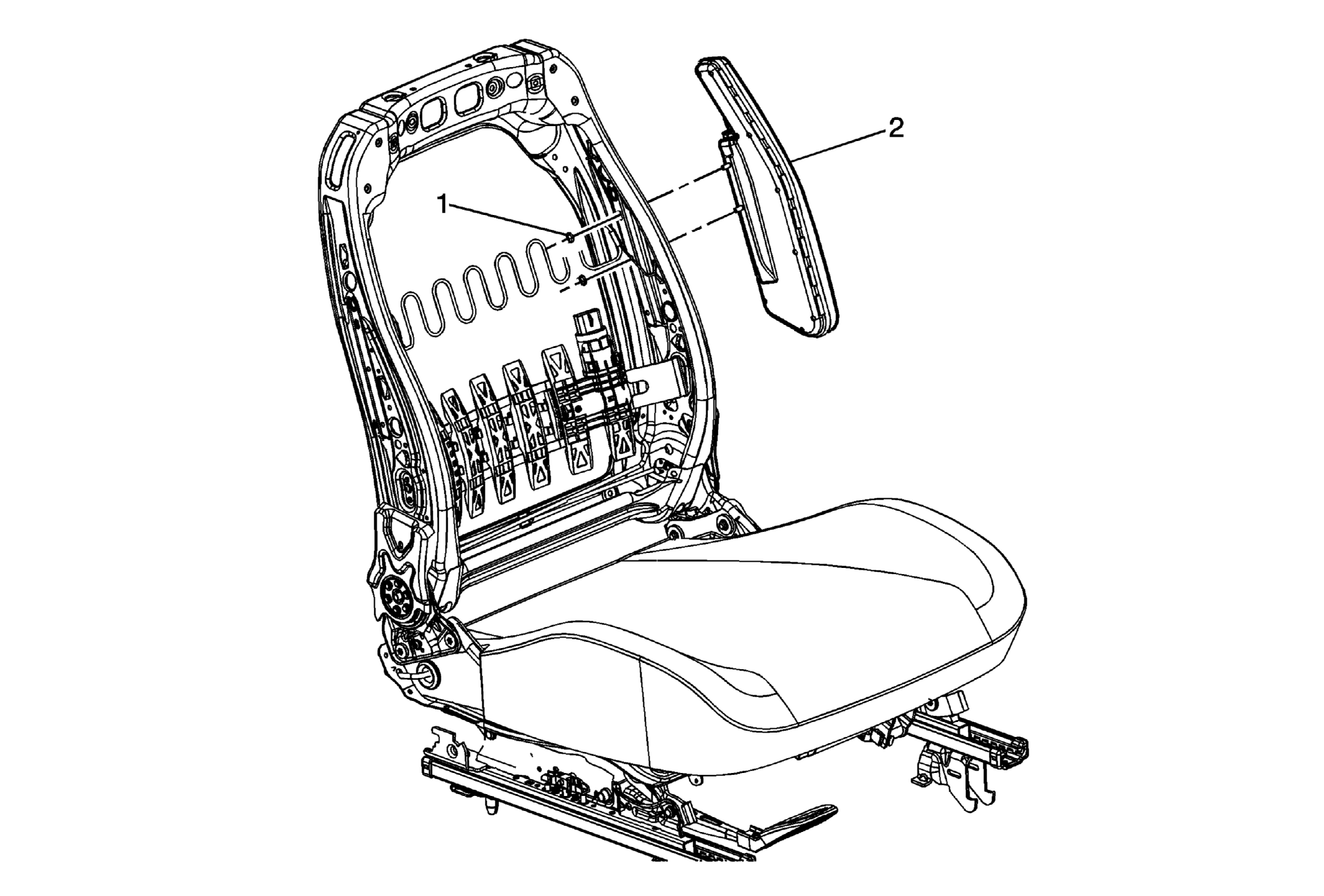

Fig 1: Driver Or Passenger Seat Side Inflatable Restraint Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary: The seat cushion frame The seat recliner, if equipped The seat adjuster The seat back frame Failure to do so may cause future personal injury. WARNING: Do not strike or jolt the inflatable restraint side impact sensor (SIS). Before applying power to the SIS make sure that it is securely fastened. Failure to observe the correct installation procedures could cause SIR deployment, personal injury, or unnecessary SIR system repairs. WARNING: Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury. Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the driver or passenger seat. Refer to Driver or Passenger Seat Replacement . Remove the driver or passenger seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement .
1	Driver or Passenger Seat Side Inflatable Restraint Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Driver or Passenger Seat Side Inflatable Restraint Module Procedure Remove the connector position assurance (CPA) from the module electrical connector. Disconnect the electrical connector. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .

Callout

Component Name

WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:

The seat cushion frame
The seat recliner, if equipped
The seat adjuster
The seat back frame

Failure to do so may cause future personal injury.

WARNING: Do not strike or jolt the inflatable restraint side impact sensor (SIS). Before applying power to the SIS make sure that it is securely fastened. Failure to observe the correct installation procedures could cause SIR deployment, personal injury, or unnecessary SIR system repairs.

WARNING: Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury.

Preliminary Procedure

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the driver or passenger seat. Refer to Driver or Passenger Seat Replacement .
Remove the driver or passenger seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement .

Driver or Passenger Seat Side Inflatable Restraint Module Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Driver or Passenger Seat Side Inflatable Restraint Module

Procedure

Remove the connector position assurance (CPA) from the module electrical connector.
Disconnect the electrical connector.
Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .
