Air Cleaner Outlet Duct Replacement

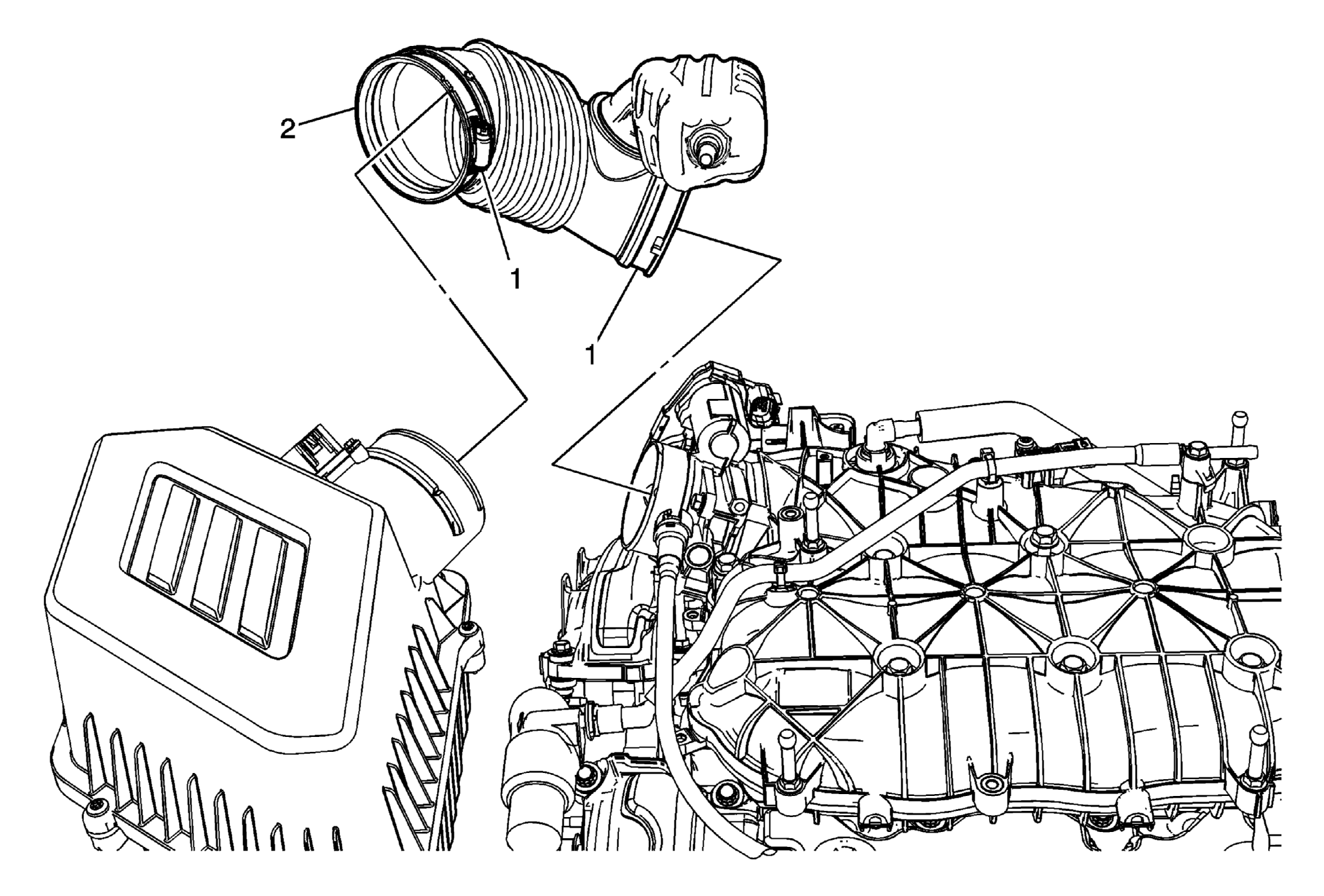

Fig 1: Air Cleaner Outlet Duct
GM2237991Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Outlet Duct Replacement

Callout Component Name
Preliminary Procedure
Disconnect the front positive crankcase ventilation tube. Refer to Positive Crankcase Ventilation Tube Replacement - Front .
1 Air Cleaner Clamp (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Air Cleaner Outlet Duct
