Inside the Transmission Components (MYC/MYD)

Inside the Transmission Components (MYC/MYD)

Component Name Callout
Control Solenoid Valve Assembly 1
Input and Output Speed Sensor Assembly 2
Automatic Transmission Internal Mode Switch 3

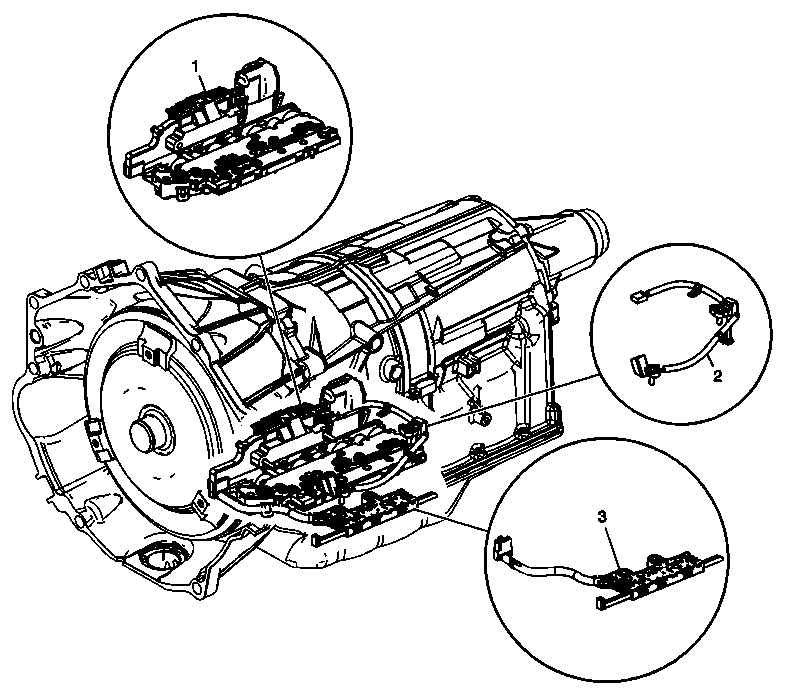

Fig 1: Inside the Transmission Components (MYC/MYD)
GM2758210Courtesy of GENERAL MOTORS COMPANY
