Front of the Engine Components (LFA/HP2)

Front of the Engine Components (LFA/HP2)

Component Name Callout
Throttle Body 1
Manifold Absolute Pressure (MAP) Sensor 2
Engine Coolant Temperature (ECT) Sensor 3
Camshaft Position (CMP) Sensor 4
A/C Compressor 5

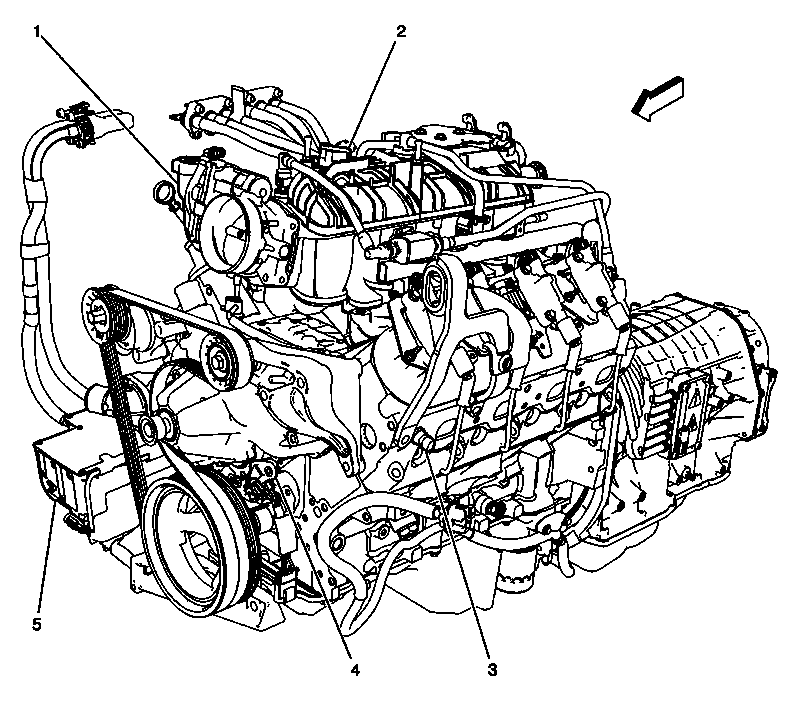

Fig 1: Front of the Engine Components (LFA/HP2)
GM2758187Courtesy of GENERAL MOTORS COMPANY
