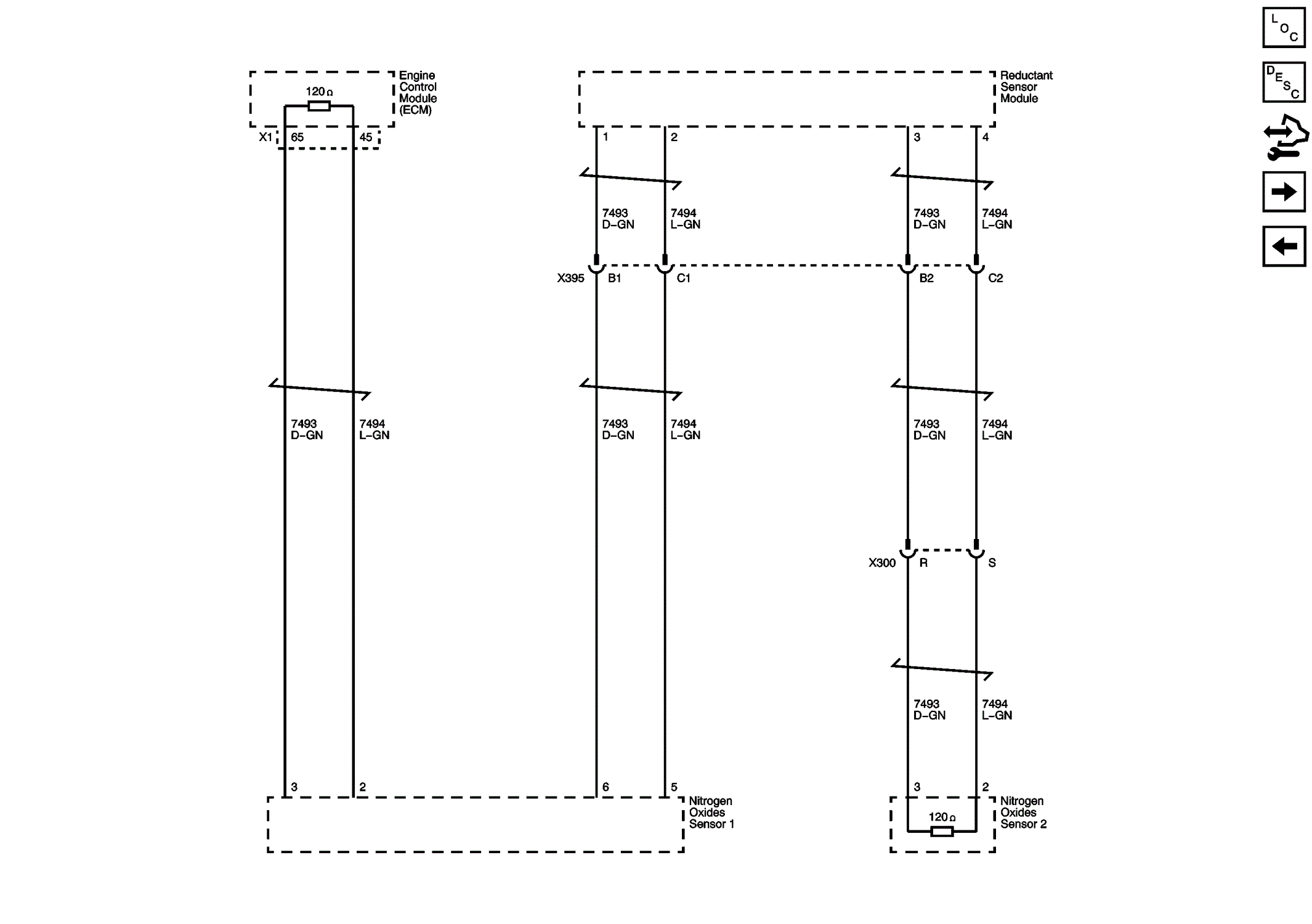

Home >> GMC >> 2013 >> Sierra 1500 XFE >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Powertrain Expansion Bus (LGH or LML)
