Throttle Inlet Absolute Pressure Sensor Replacement

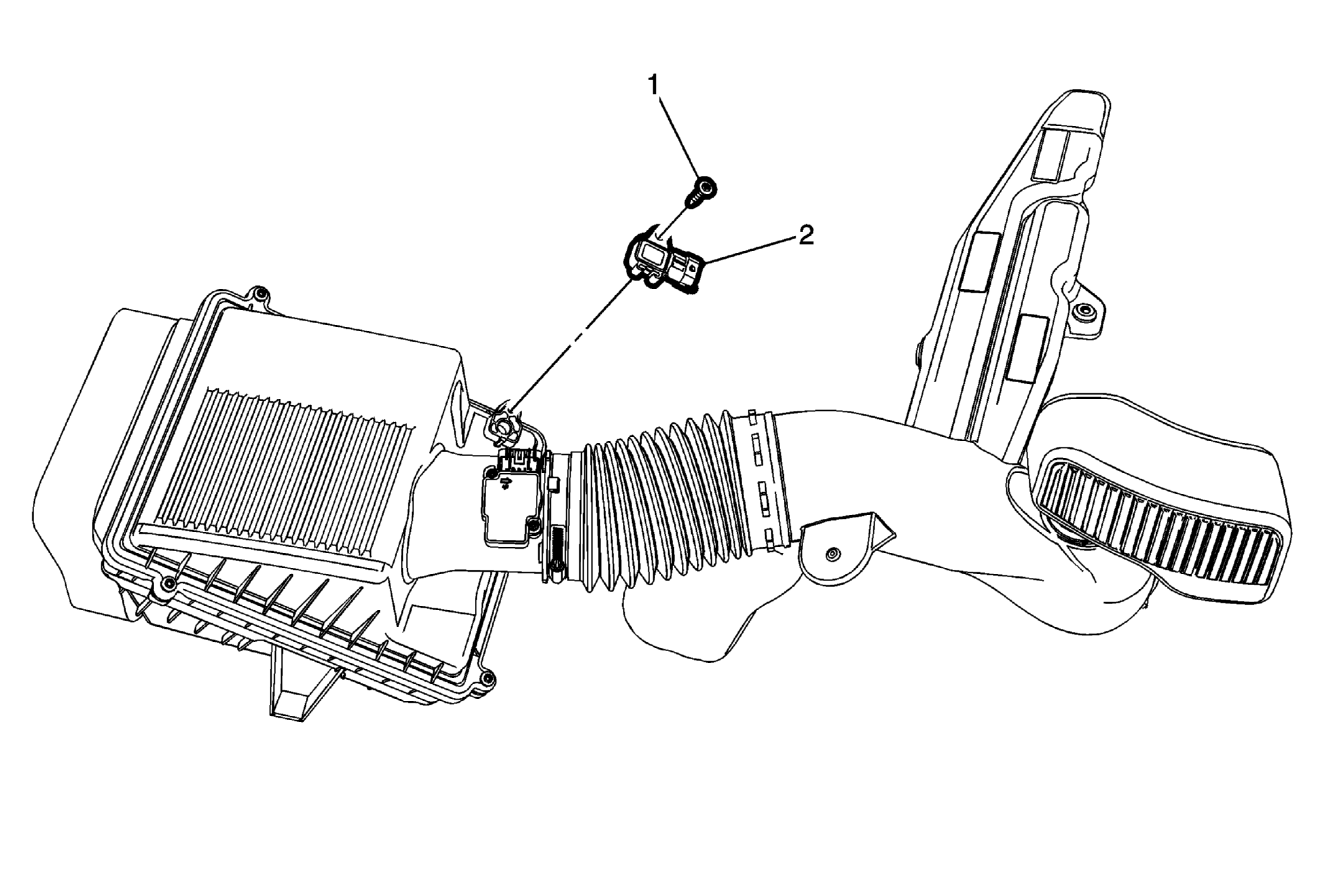

Fig 1: Throttle Inlet Absolute Pressure Sensor
GM2425925Courtesy of GENERAL MOTORS COMPANY
Throttle Inlet Absolute Pressure Sensor Replacement

Callout Component Name
1 Throttle Inlet Absolute Pressure Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m (44 lb in)
2 Throttle Inlet Absolute Pressure Sensor
Procedure
Disconnect the electrical connector.
