Installation Procedure

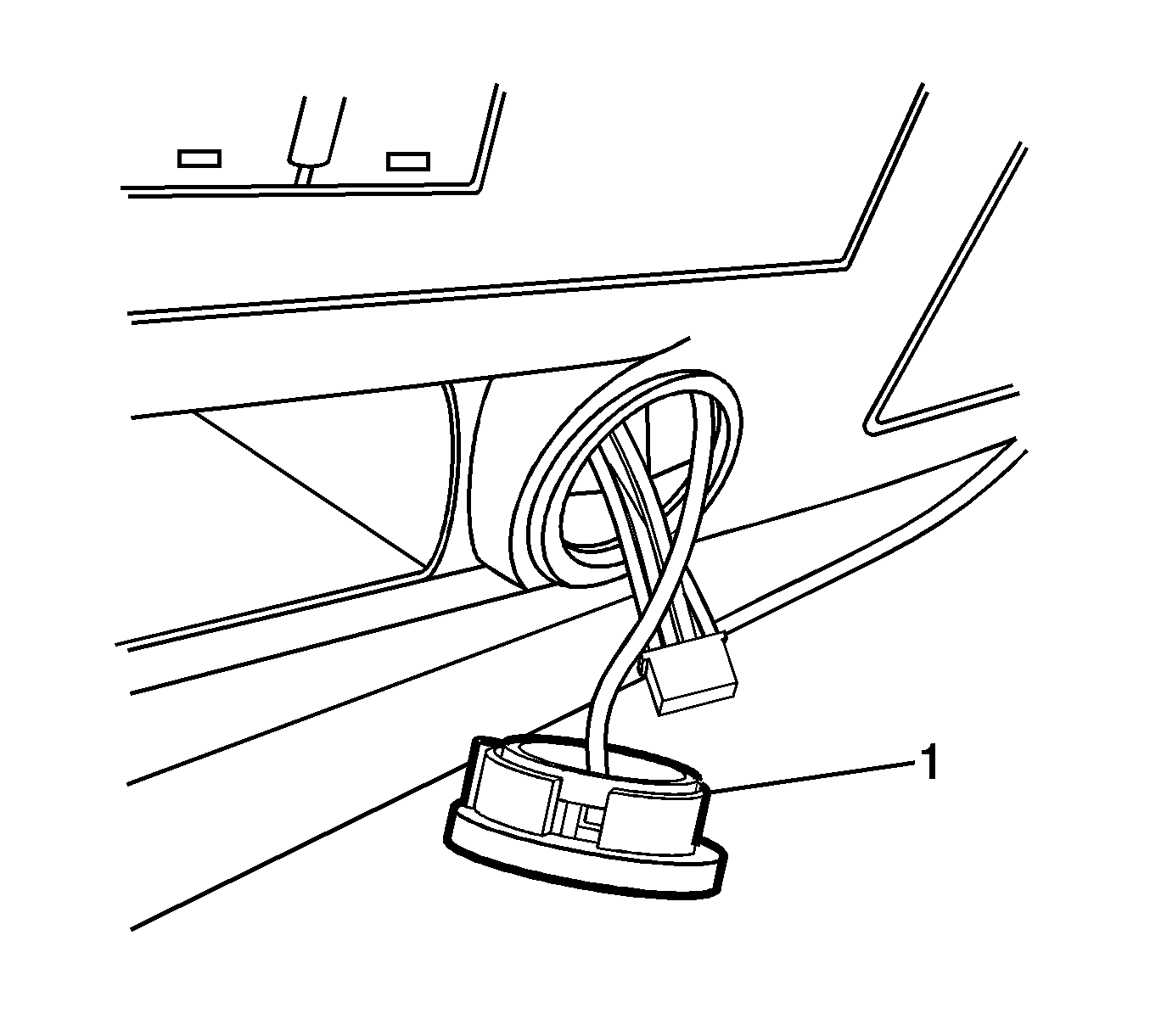

Courtesy of GENERAL MOTORS COMPANY
- To install bezel (1) to dash, reinsert ground ring into back of bezel. Beveled edge of ground ring is inserted into the bezel first. Be sure that the ground-wire-interface on ring is inserted into bezel at notch at 9 o'clock position.
- Insert bezel (1) into dash. Seat bezel such that index tab at 6 o'clock position inserts into notch of instrument panel trim plate at 6 o'clock position.

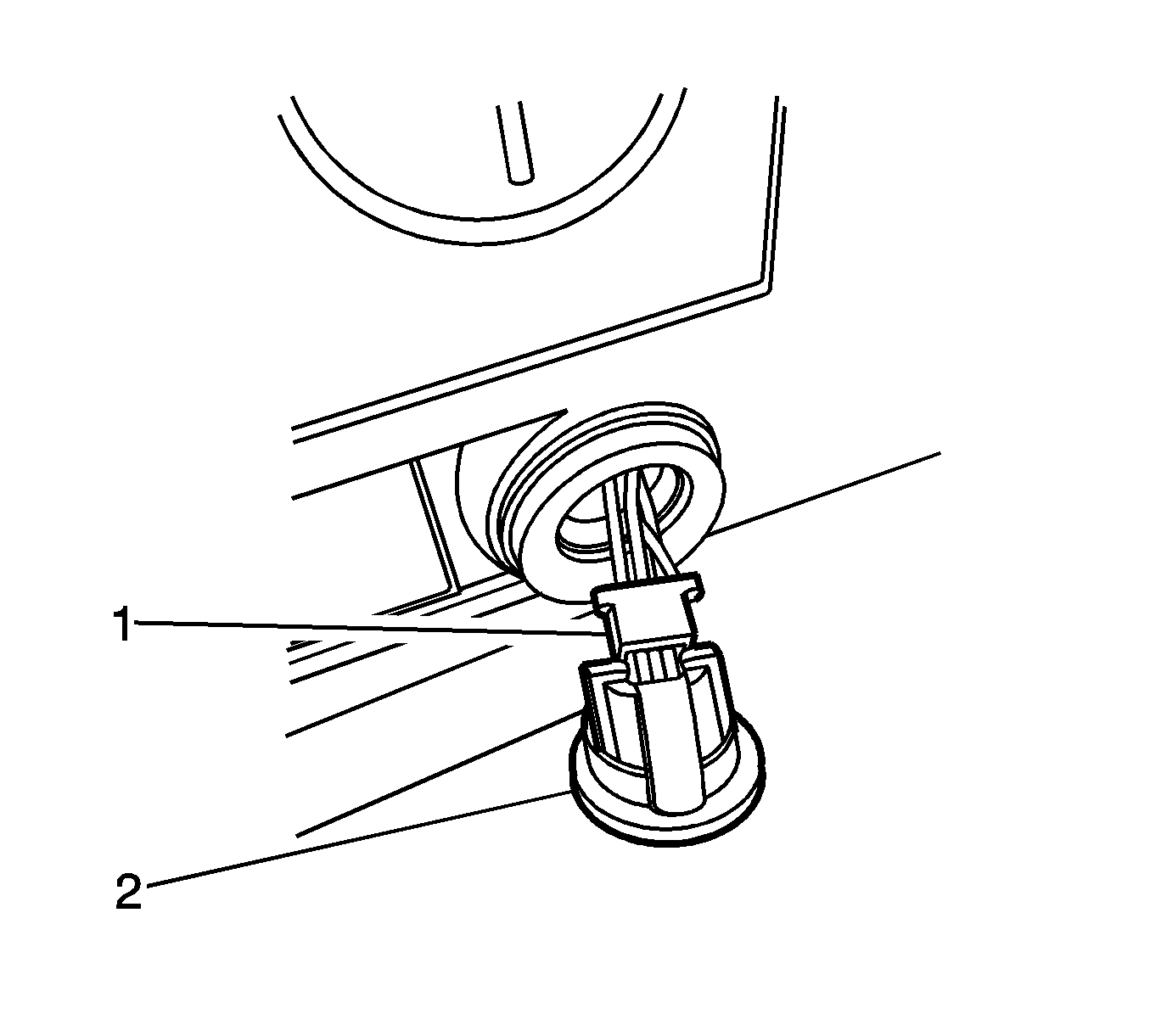

Courtesy of GENERAL MOTORS COMPANY
- Carefully reinstall the electrical connector (1) into switch assembly (2).
- Reinsert the switch into the switch bezel by inserting retaining tabs into tab relief notches at 3 and 9 o'clock positions.
