Air Cleaner Assembly Replacement

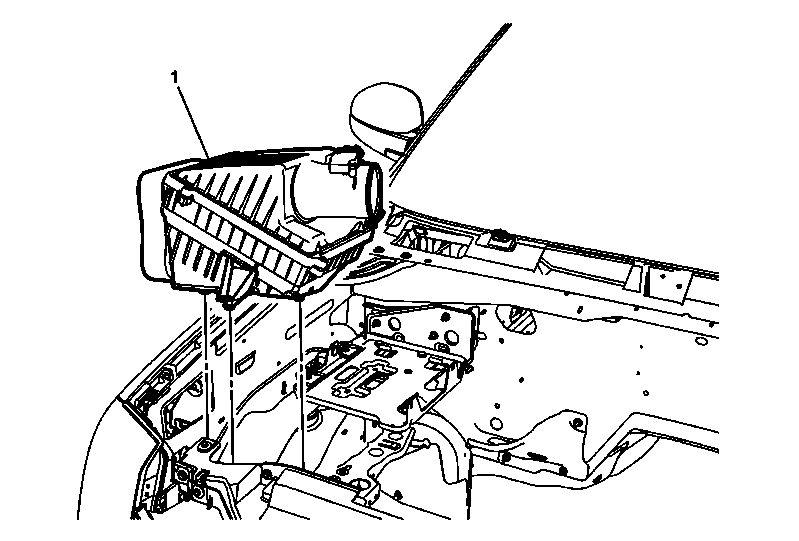

Fig 1: Air Cleaner Assembly
GM2490949Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Assembly Replacement

Callout Component Name
Preliminary Procedure
Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1 Air Cleaner Assembly

Procedure

  1. Disengaged the air cleaner studs from the rubber grommets by pulling upwards.
  2. Transfer parts as necessary.
