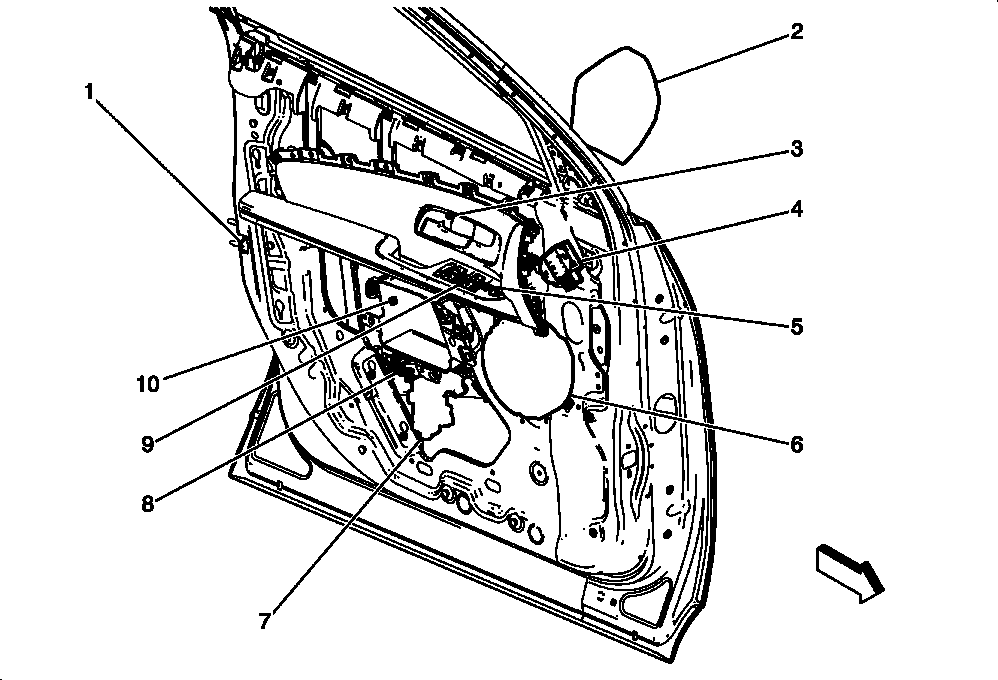

Driver Door Components
Driver Door Components
| Component Name | Callout |
|---|---|
| A23D Door Latch Assembly - Driver | 1 |
| A9A Outside Rearview Mirror - Driver | 2 |
| E1C Accent Lamp - Driver Door Handle (LTZ or SLT) | 3 |
| K96L Mirror Control Module - Left (LTZ or SLT) | 4 |
| S52S Outside Rearview Mirror Switch | 5 |
| P19G Speaker - Left Front | 6 |
| M74D Window Motor - Driver | 7 |
| B63LF Side Impact Sensor - Left Front | 8 |
| S79D Window Switch - Driver | 9 |
| E1D Accent Lamp - Driver Door (LTZ or SLT) | 10 |
