Secondary Air Injection Pump Hose Replacement

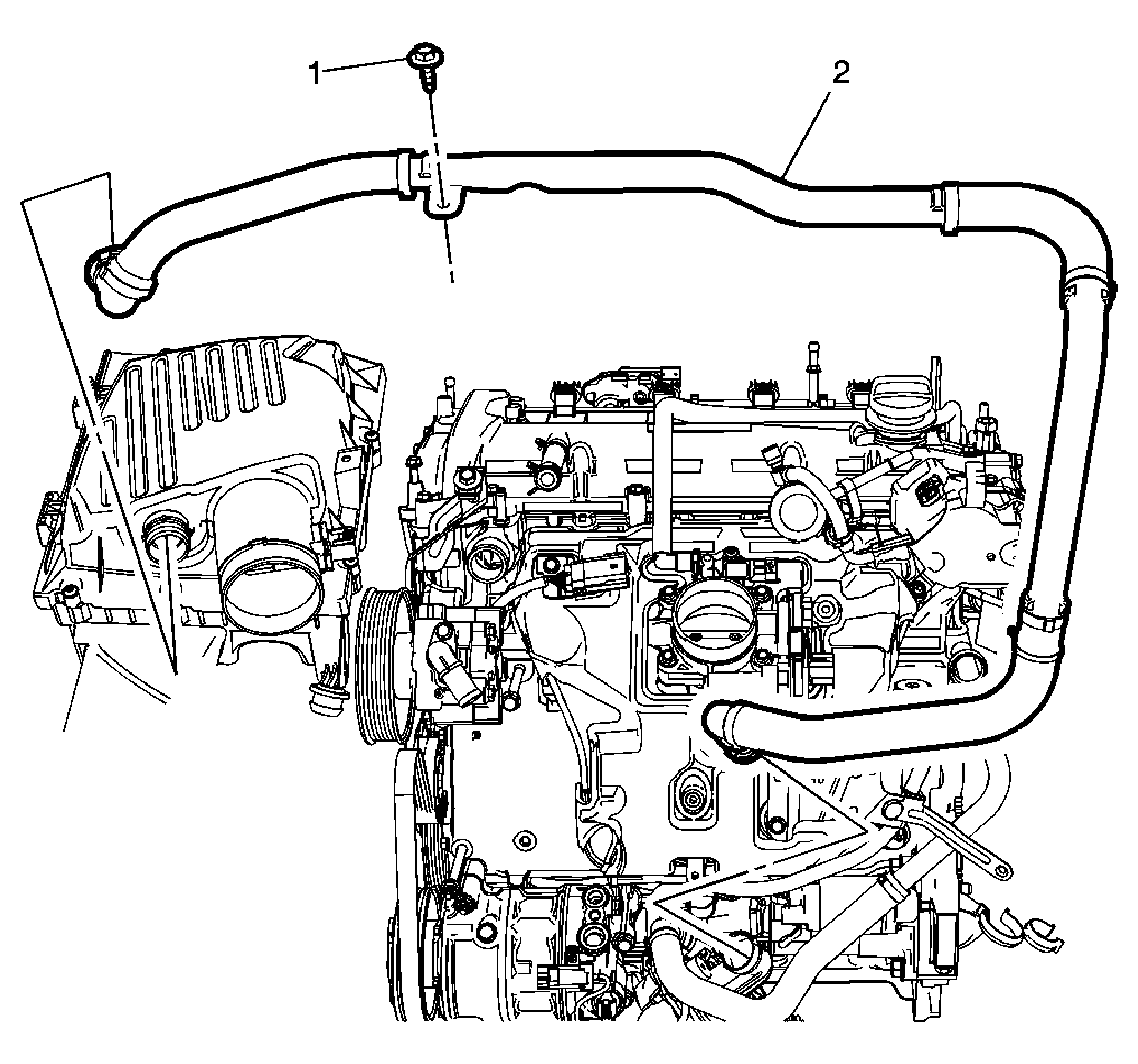

Fig 1: Secondary Air Injection Pump Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Secondary Air Injection Pump Hose Fastener CAUTION: Refer to Fastener Caution . Tighten:  22 N.m(16 lb ft).
2	Secondary Air Injection Pump Hose Procedure:  Disconnect the quick connect fittings by squeezing both sides.
