Power Steering System Wiring Schematics

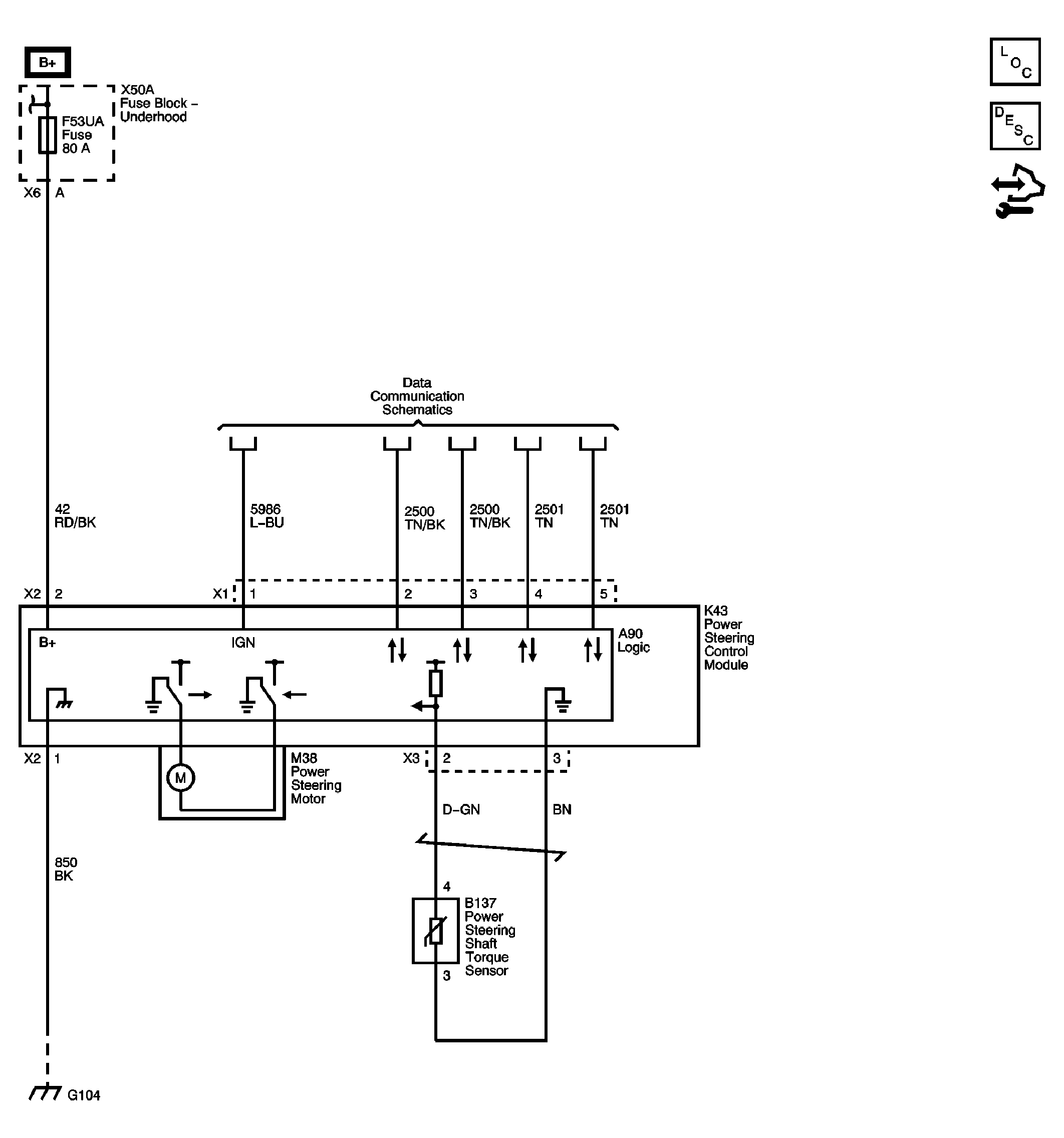

Fig 1: Electric Power Steering System Wiring Schematic

GM2410016

Courtesy of GENERAL MOTORS CORP.
