Video System Wiring Schematics

Fig 1: Rear Seat Display Power and Ground (UWG) Wiring Schematic
GM2409428Courtesy of GENERAL MOTORS CORP.

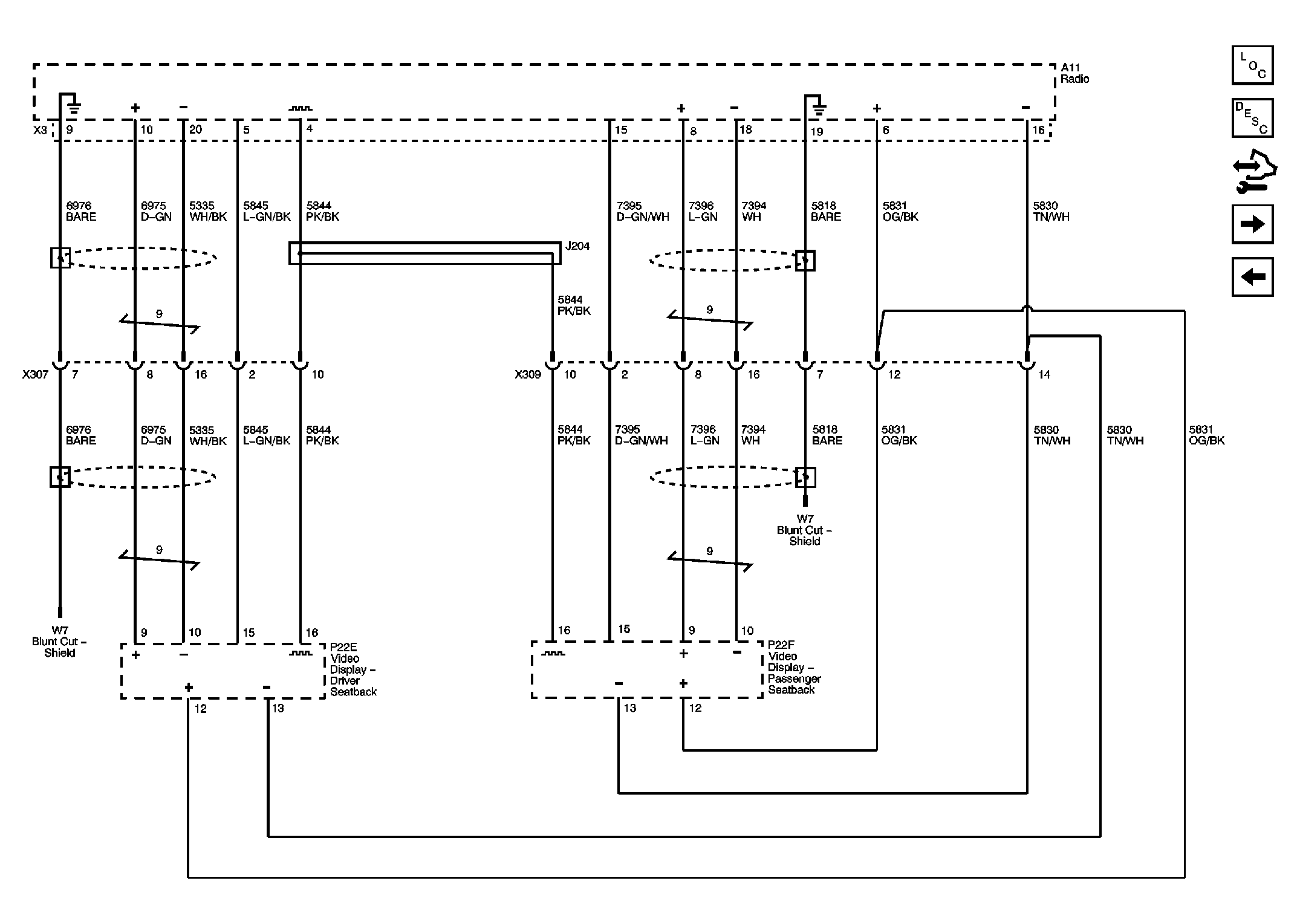

Fig 2: Rear Seat Video Signals (UWG) Wiring Schematic
GM2409433Courtesy of GENERAL MOTORS CORP.

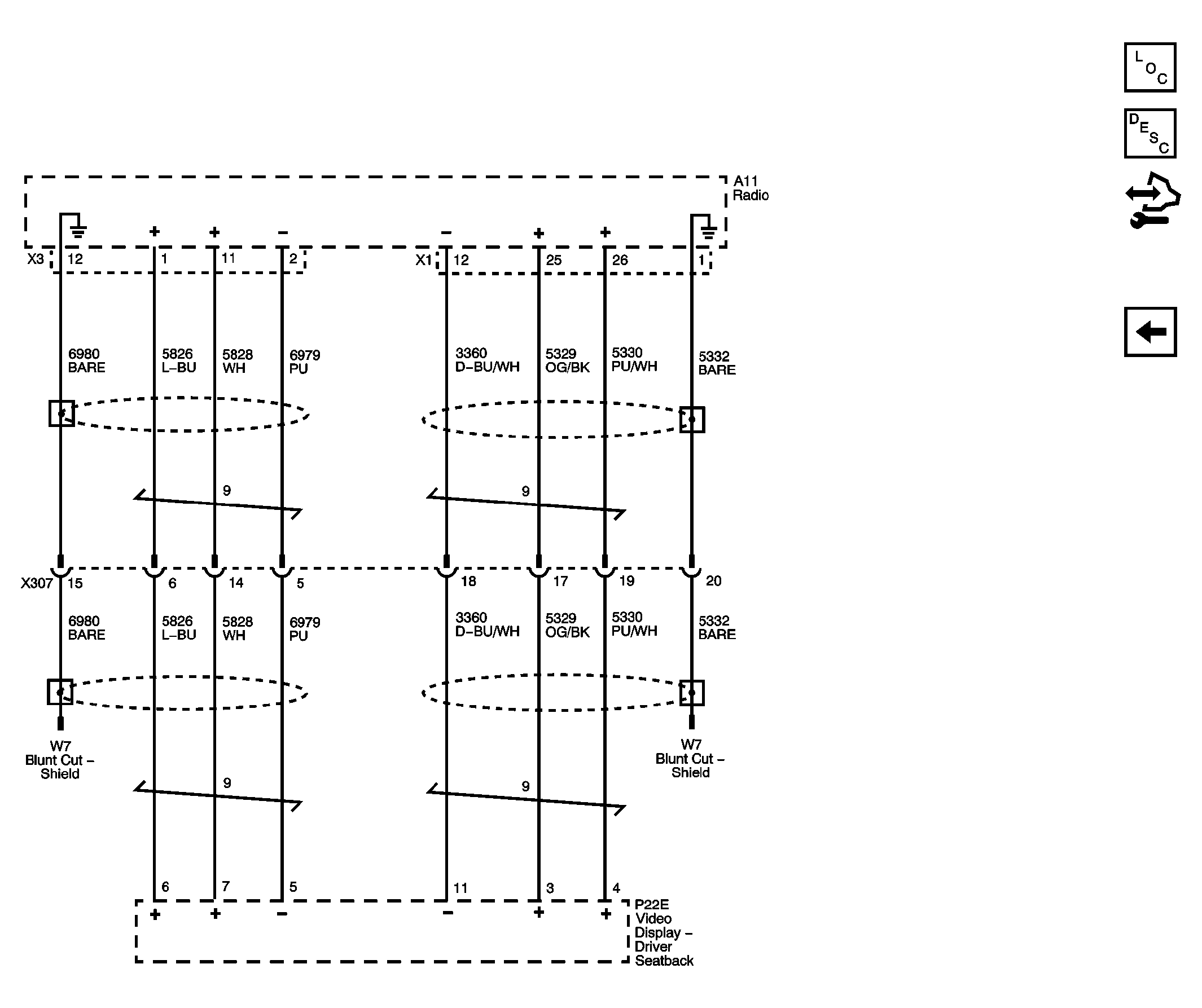

Fig 3: Rear Seat Audio Signals (UWG) Wiring Schematic
GM2409437Courtesy of GENERAL MOTORS CORP.
