Barometric Pressure Sensor Replacement

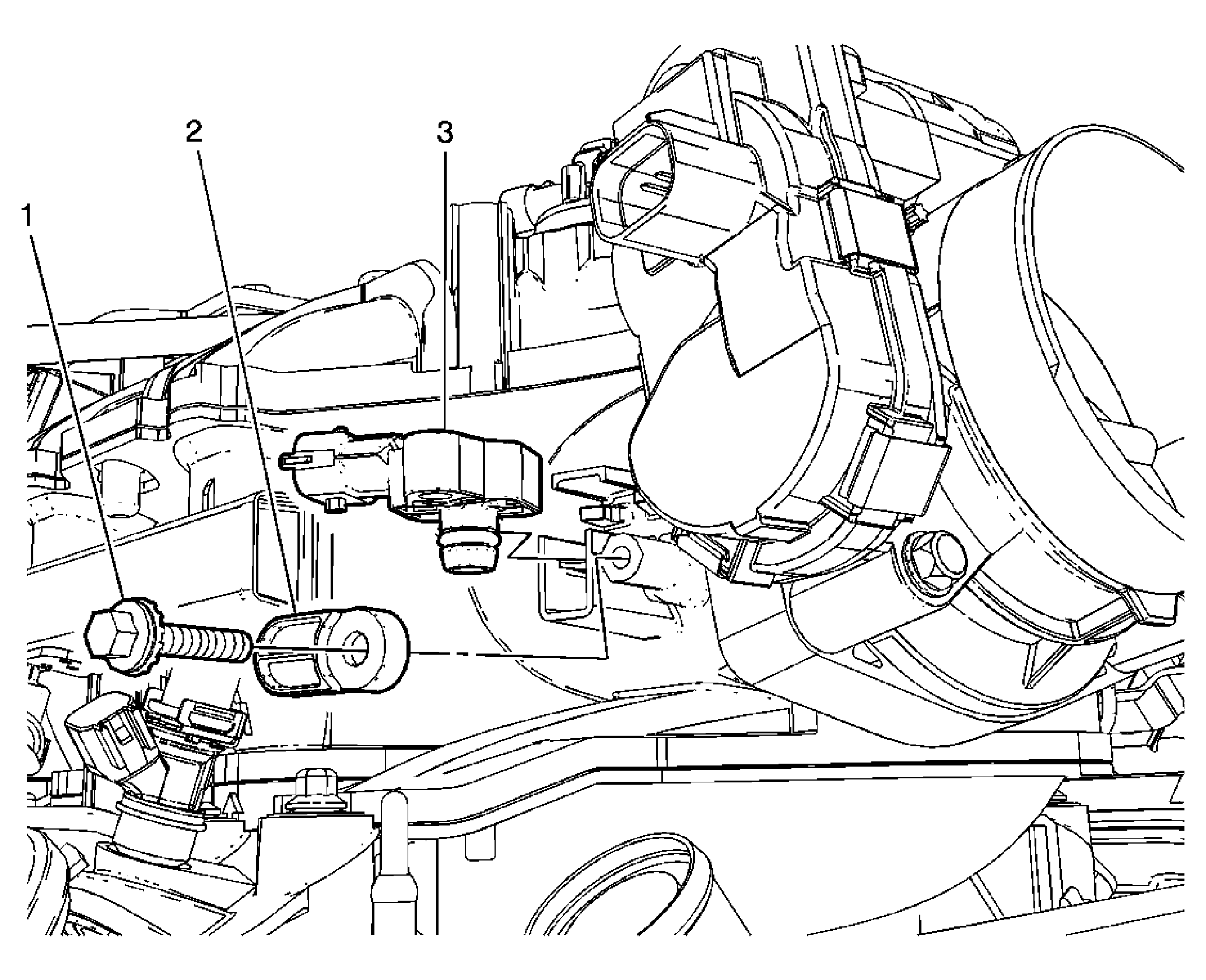

Fig 1: View Of Barometric Pressure Sensor, Retainer & Bolt
GM1999123Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the upper intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
1 Bolt
CAUTION: Refer to Fastener Caution .

Tighten:  10 N.m (89 lb in)
2 Retainer
3 Barometric Pressure Sensor

Procedure

  1. Disconnect the BARO sensor harness connector.
  2. Remove the BARO sensor from the intake manifold.
