Removal Procedure

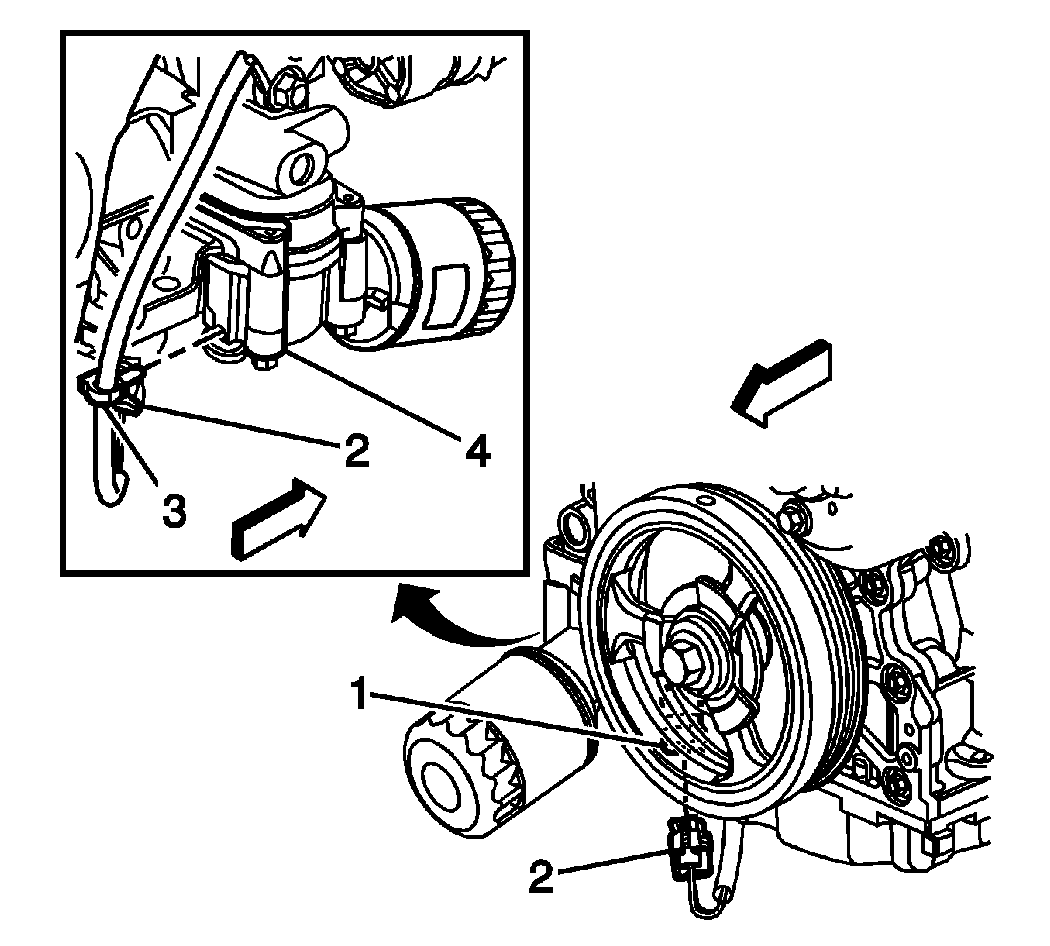

    Fig 1: View Of Oil Pressure Switch Electrical Connector & Oil Filter Adapter Wiring Harness Retainer
    GM1350709Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement .
    2. Fig 2: View Of Engine Wiring Harness Electrical Connector
    GM1764736Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the engine wiring harness electrical connectors from the ignition coils.
    3. Fig 3: View Of Ignition Coils
    GM1764803Courtesy of GENERAL MOTORS CORP.
  3. Remove the ignition coil bolts.
  4. Remove the ignition coils from the camshaft cover.
