Fuel Rail Assembly

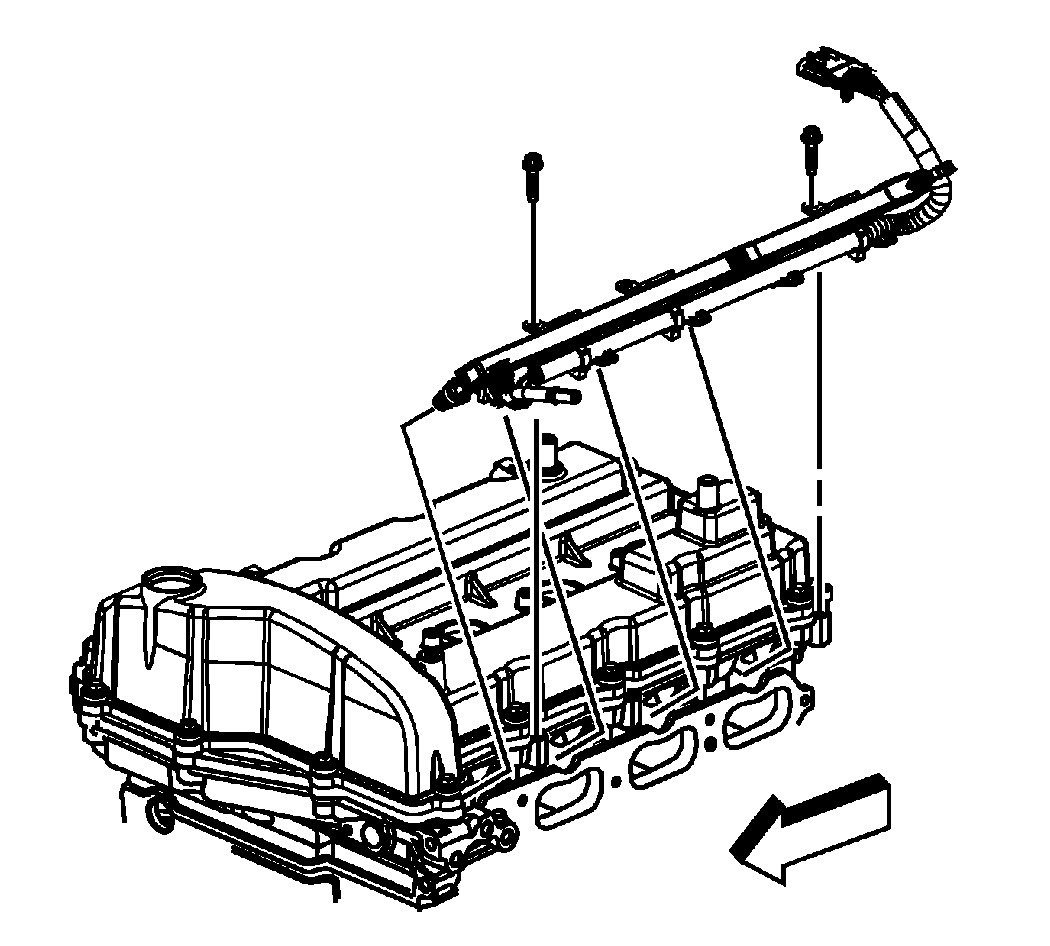

Fig 1: View Of Fuel Injector Rail And Bolts

Courtesy of GENERAL MOTORS CORP.

The fuel rail assembly attaches to the cylinder head. The fuel rail assembly performs the following functions:

• Positions the fuel injectors in the cylinder head
• Distributes fuel evenly to the injectors
