Power Moding Schematics

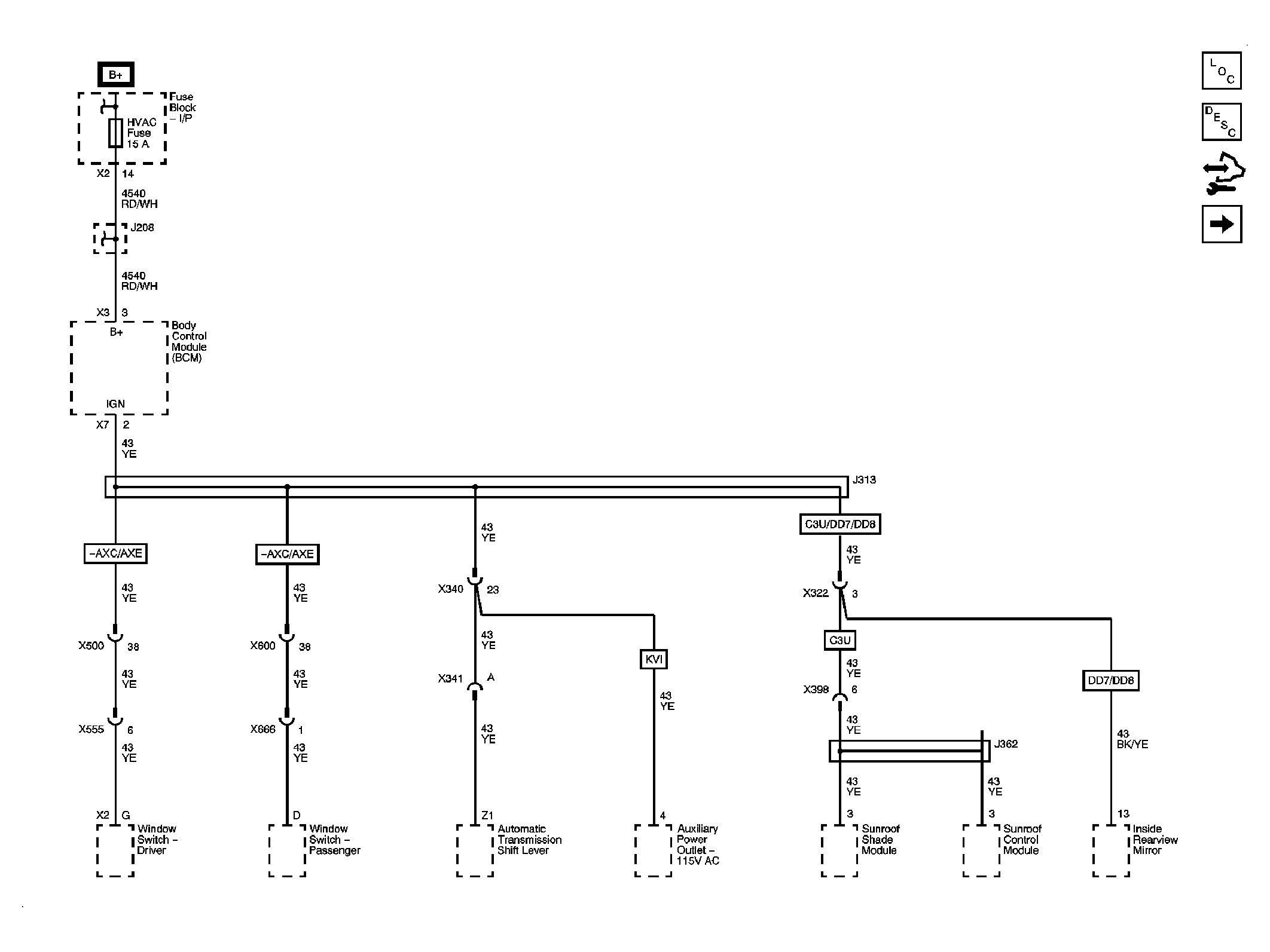

Fig 1: IGN I/II

GM1882112

Courtesy of GENERAL MOTORS CORP.

Fig 2: IGN II/III

GM1882113

Courtesy of GENERAL MOTORS CORP.
