Cruise Control Schematics

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

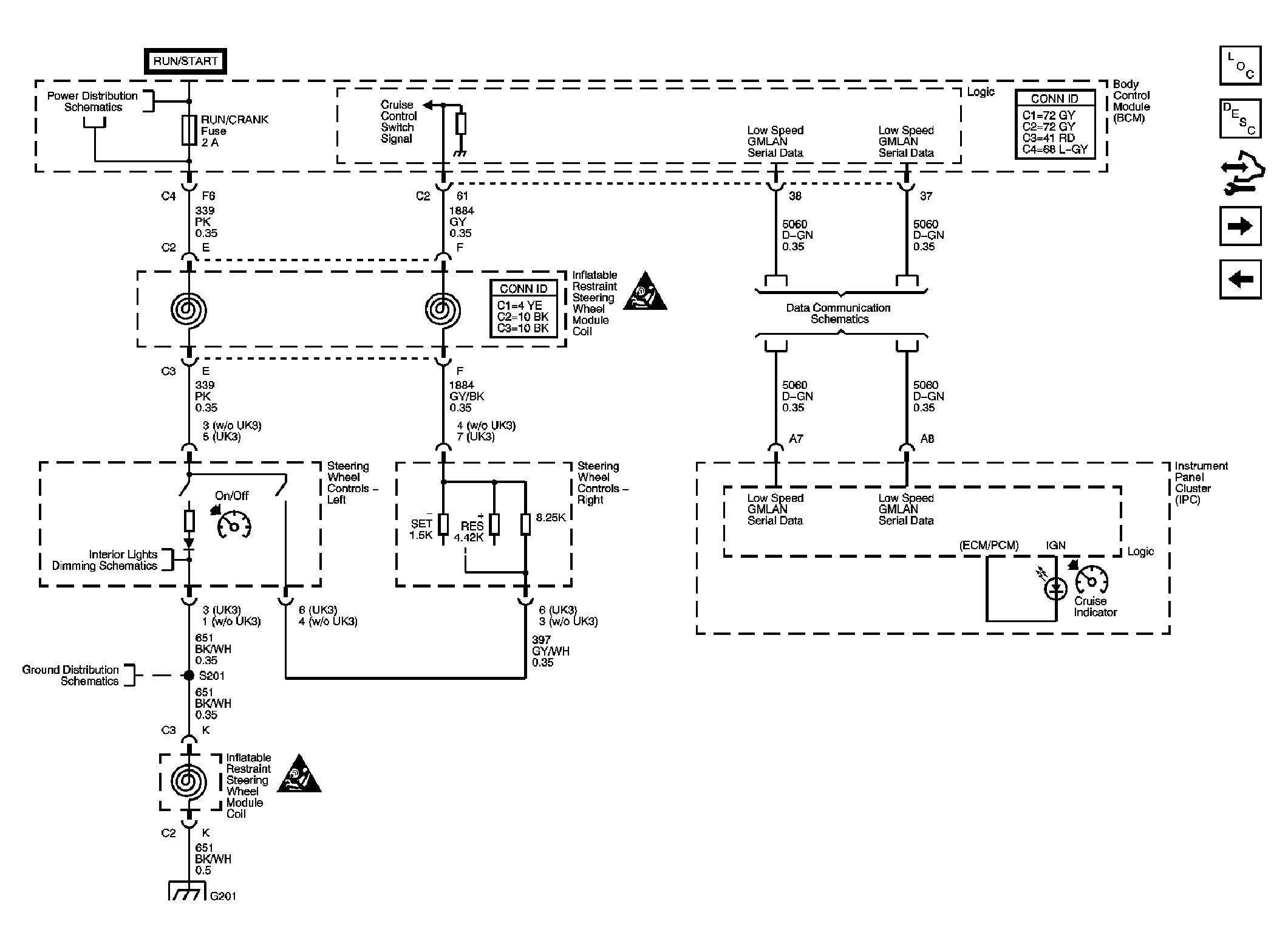

Fig 1: Steering Wheel Controls Schematic - 3 Spoke

Courtesy of GENERAL MOTORS CORP.

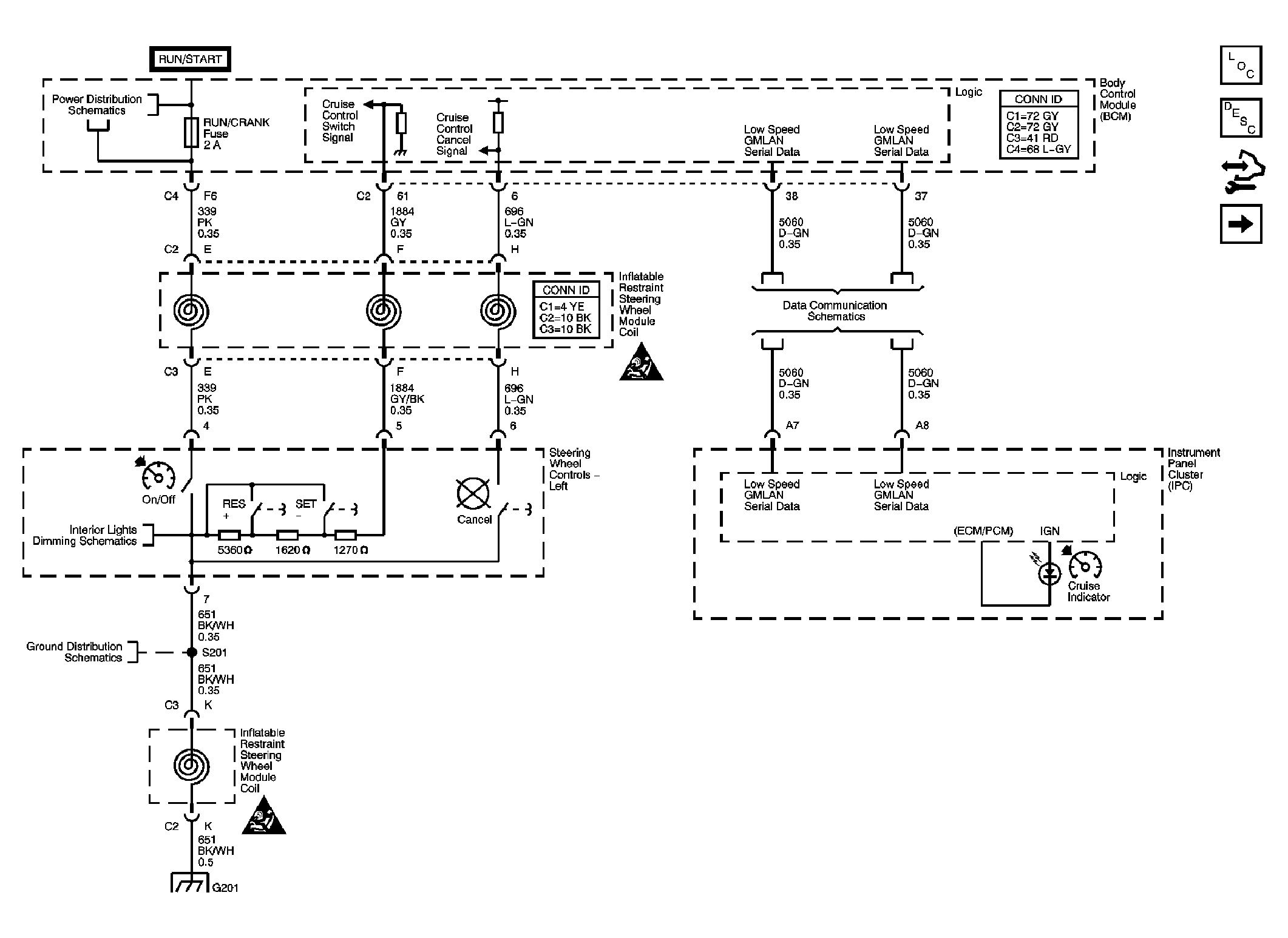

Fig 2: Steering Wheel Controls Schematic - 4 Spoke

Courtesy of GENERAL MOTORS CORP.

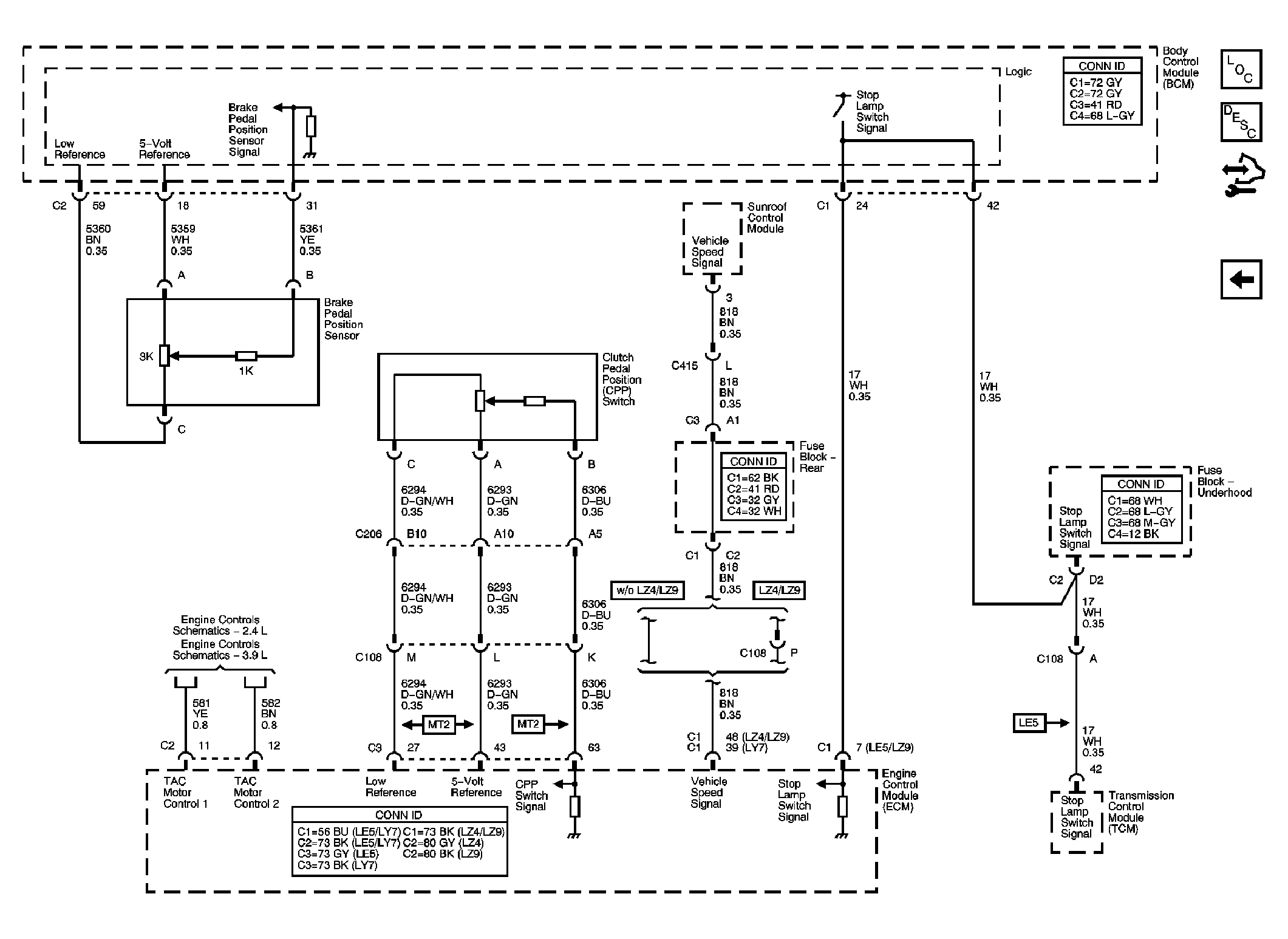

Fig 3: Brake Pedal Position Sensor, Clutch Pedal Position (CPP) Switch and Stop Lamp Switch Signal Schematic

Courtesy of GENERAL MOTORS CORP.
