Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the speaker grille retainer.
  2. Connect the harness lead to the speaker route the speaker harness lead in the seat.
    3. NOTE: Refer to Fastener Notice .
  3. Install the 4 screws which retain the speaker to the seat.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

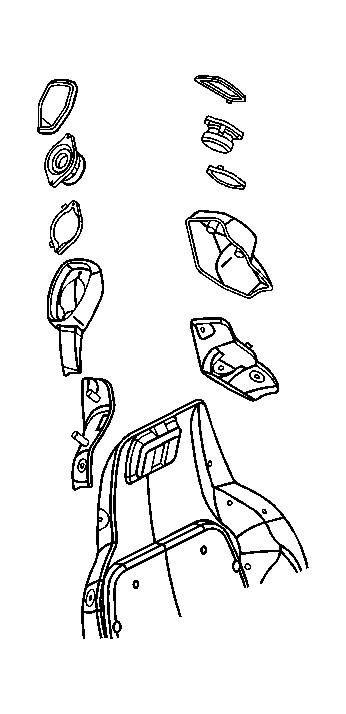

    4. Fig 1: View Of Driver Seat Speaker Components
    GM1292641Courtesy of GENERAL MOTORS CORP.
  4. Align the speaker grille to the seat.

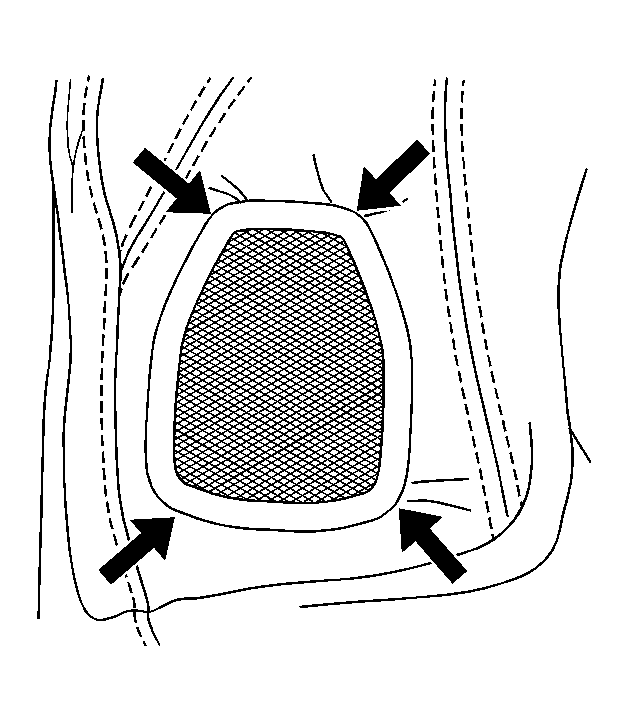

    5. Fig 2: View Of Speaker Grille
    GM1292814Courtesy of GENERAL MOTORS CORP.
  5. Carefully push on the speaker grille to engage the retaining clips to the seat.
