Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

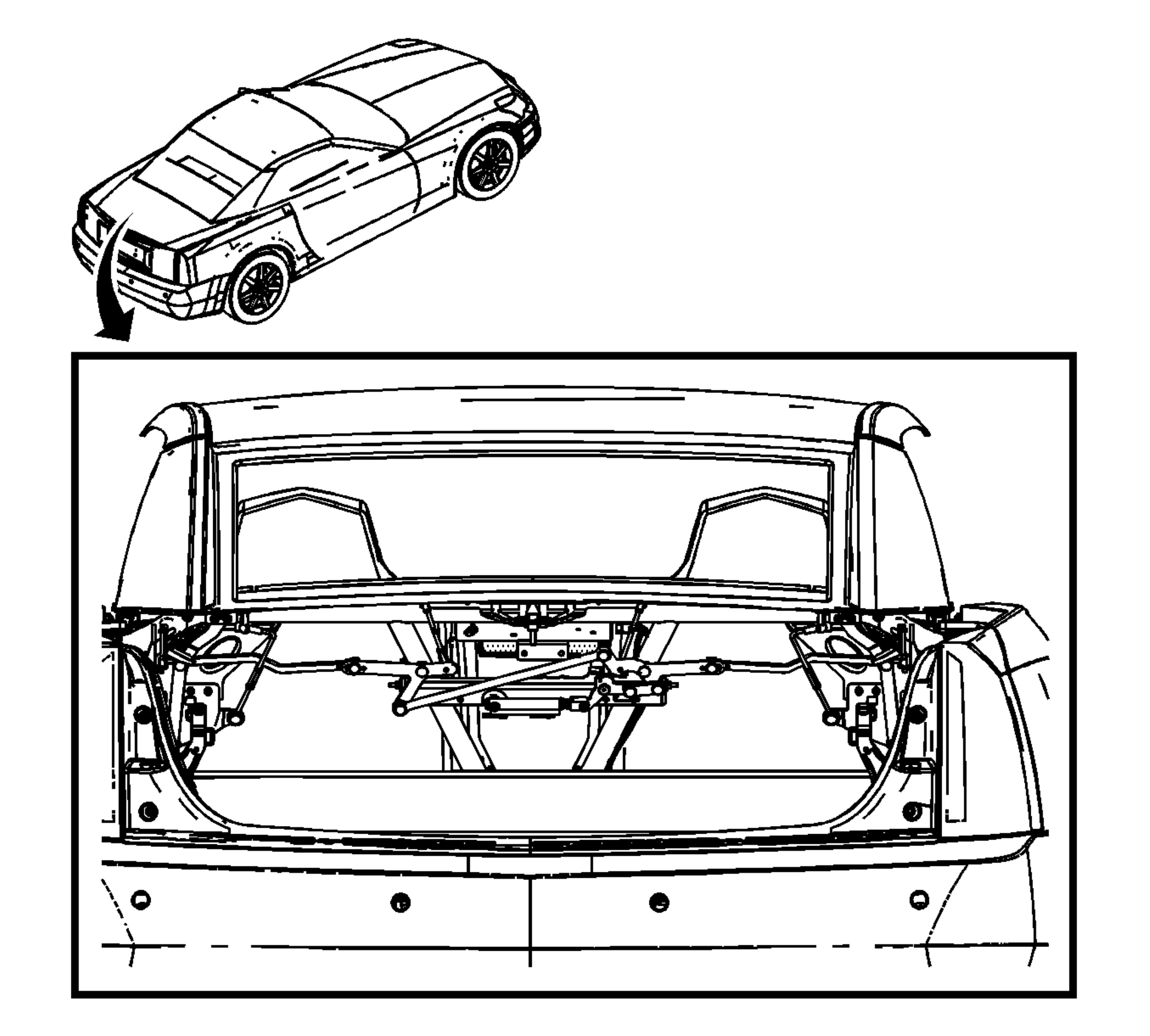

    Fig 1: Cloth Cover In Trunk Area
    GM1718849Courtesy of GENERAL MOTORS CORP.
  1. Loosen the cloth cover in the trunk area that covers the digital radio receiver to access the antenna cable connectors.
  2. Cut the ends off on the antenna cable at the digital receiver.
  3. Remove the right front IP closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
  4. Remove the right front carpet retainer. Refer to Carpet Retainer Replacement .
  5. Loosen the right side door manual release lever and leave it to the side. Refer to Front Side Door Inside Handle and Cable Replacement .
  6. Remove the right side lock pillar trim. Refer to Carpet Retainer Replacement .
    7. Fig 2: View Of Right Door Pass-Through
    GM1718847Courtesy of GENERAL MOTORS CORP.
  7. Return to the right underside of the IP and look for the harness going through the plastic seal in the pillar to door pass-through. Pull the seal back and locate the connector for the digital antenna. Disconnect it and cut the body side connector off.
  8. Remove the left front carpet retainer. Refer to Carpet Retainer Replacement .
  9. Remove the parking brake assembly. Refer to Park Brake Pedal Assembly Replacement .
    10. Fig 3: View Of Left Door Pass-Through
    GM1718845Courtesy of GENERAL MOTORS CORP.
  10. Under the left side of the IP look for the harness going through the plastic seal in pillar to door pass-through. Pull the seal back and locate the connector for the digital antenna. Disconnect it and cut the body side connector off.
