Liftgate Schematics

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

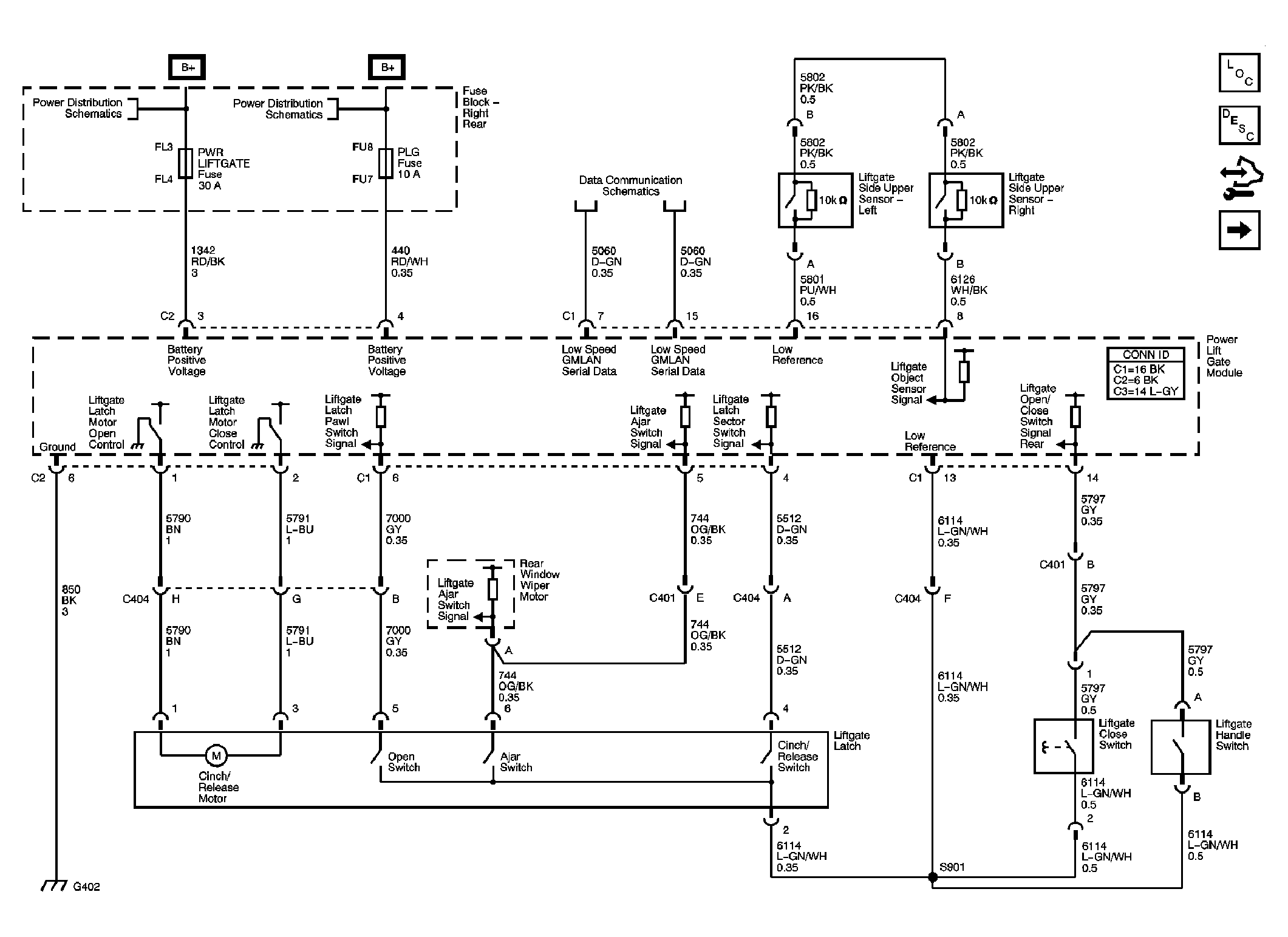

Fig 1: Power, Ground, DLC, and Controls Schematic
GM1749451Courtesy of GENERAL MOTORS CORP.

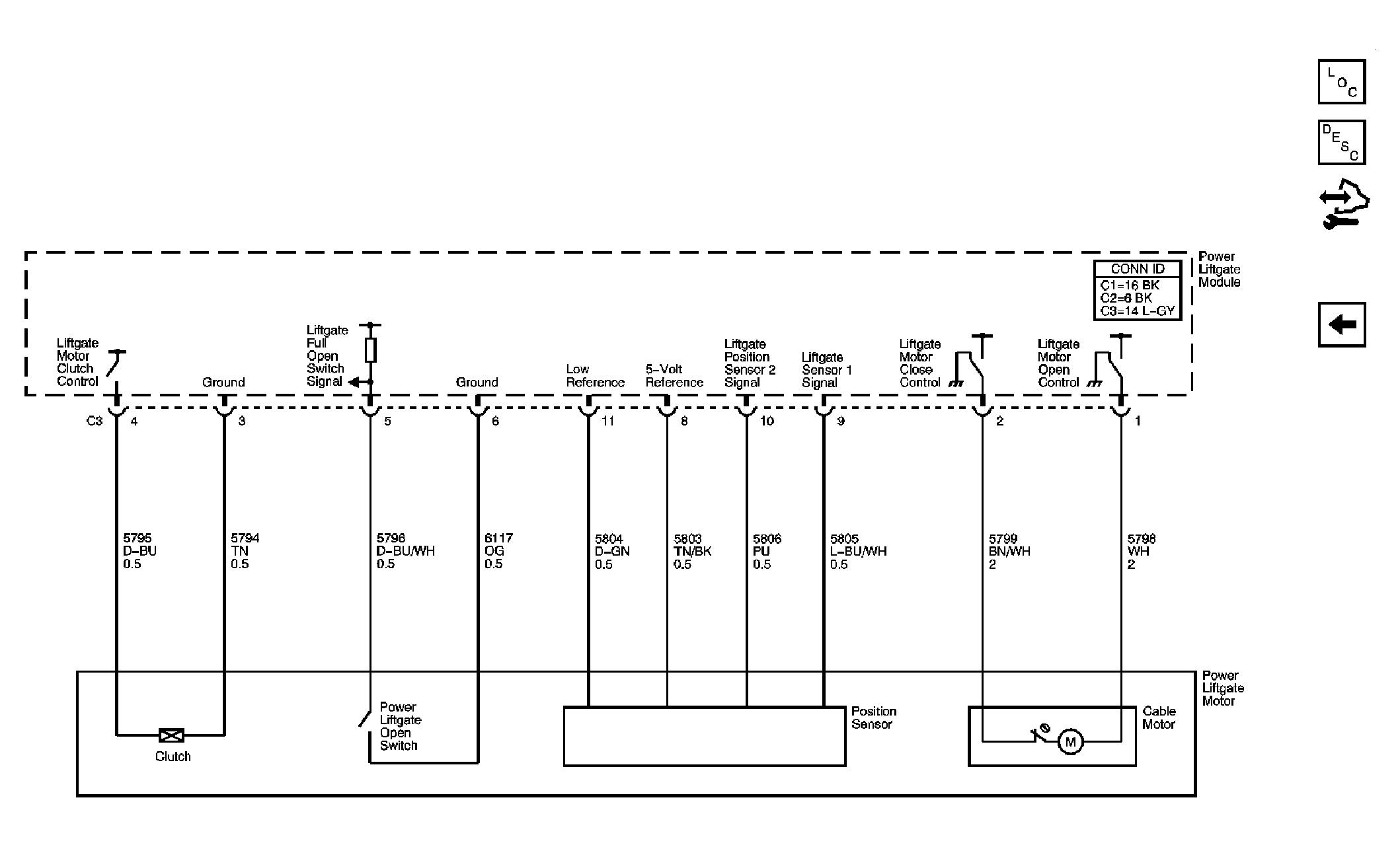

Fig 2: Power Liftgate Motor Schematic
GM1749452Courtesy of GENERAL MOTORS CORP.
