Radio Speaker Amplifier Bracket Replacement

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

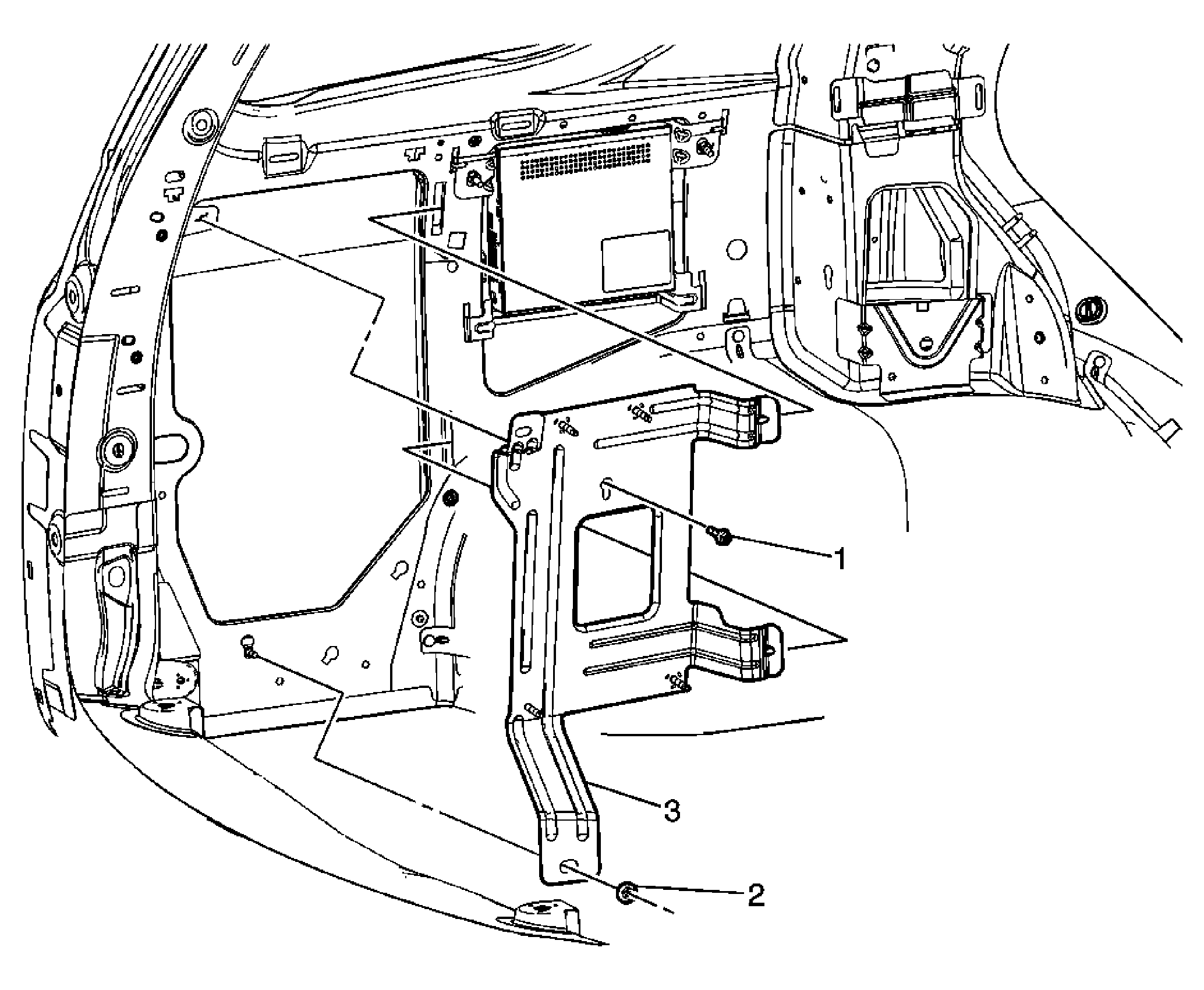

Fig 1: View Of Radio Speaker Amplifier Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the liftgate close actuator bracket (if equipped). Refer to Liftgate Close Actuator Bracket Replacement . Remove the object alarm module. Refer to Object Alarm Module Replacement (W/TB5) or Object Alarm Module Replacement (W/O TB5) . Remove the radio speaker amplifier. Refer to Amplifier Replacement (With RPO UQA) or Amplifier Replacement (With RPO UQS) .
1	Radio Speaker Amplifier Bracket Bolt NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Radio Speaker Amplifier Bracket Nut Tighten: 9 N.m (80 lb in)
3	Radio Speaker Amplifier Bracket
