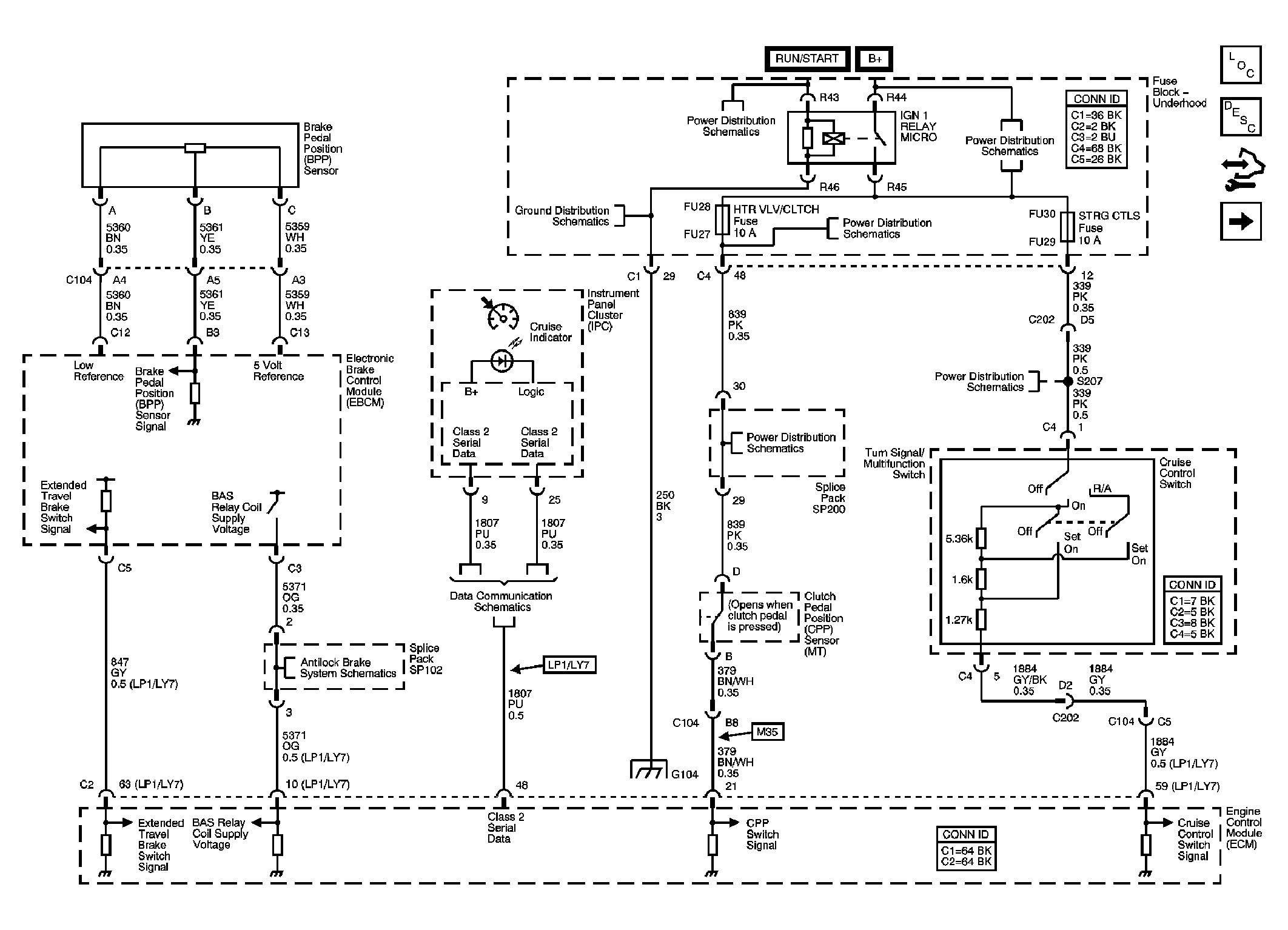

Fig 1: Cruise Control System Schematics - 2.8L/3.6L (LP1/LY7)
Courtesy of GENERAL MOTORS CORP.

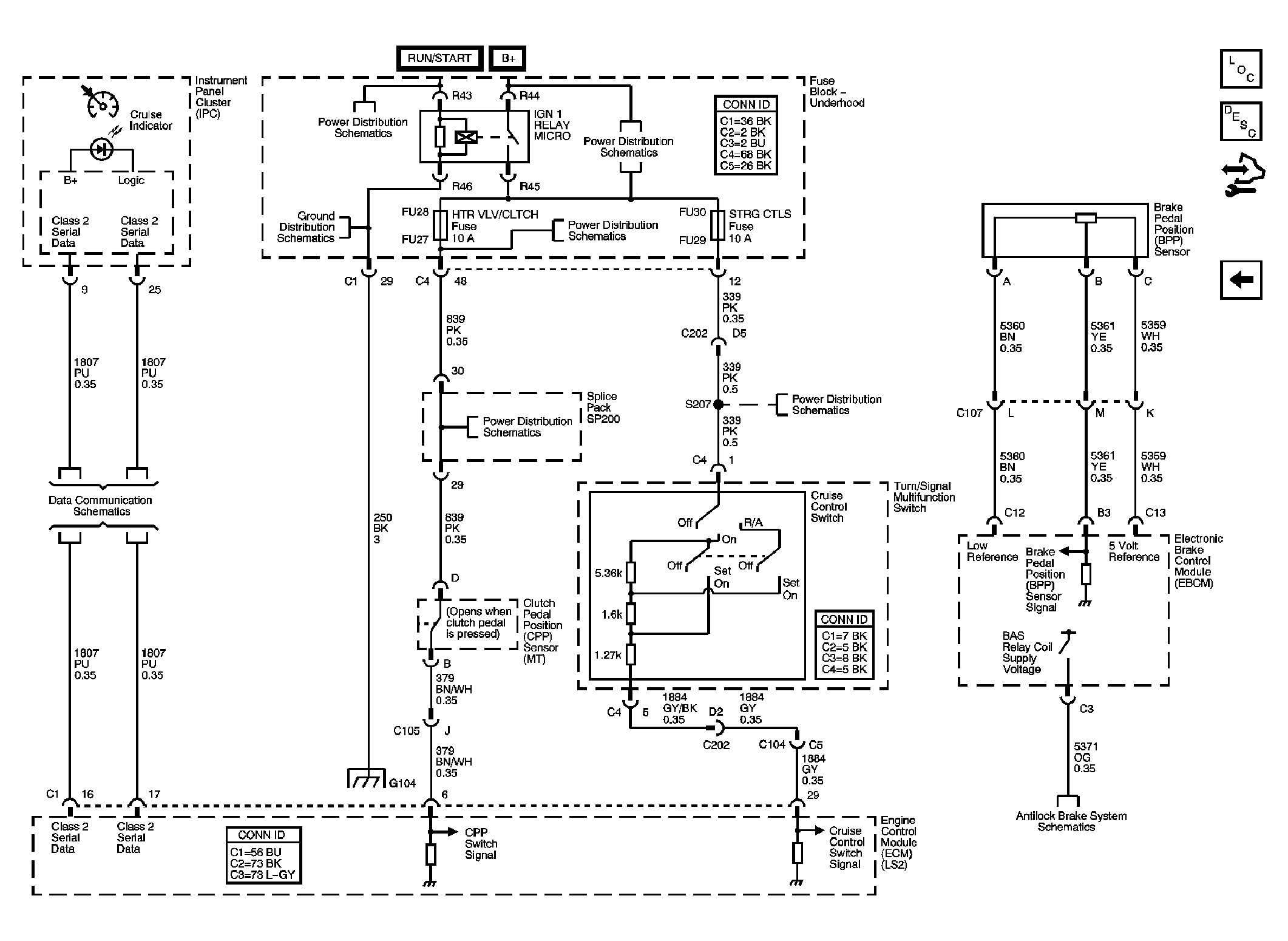

Fig 2: Cruise Control System Schematics - 6.0L (LS2)
