Radiator Support Bracket Replacement
WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Support Bracket Replacement

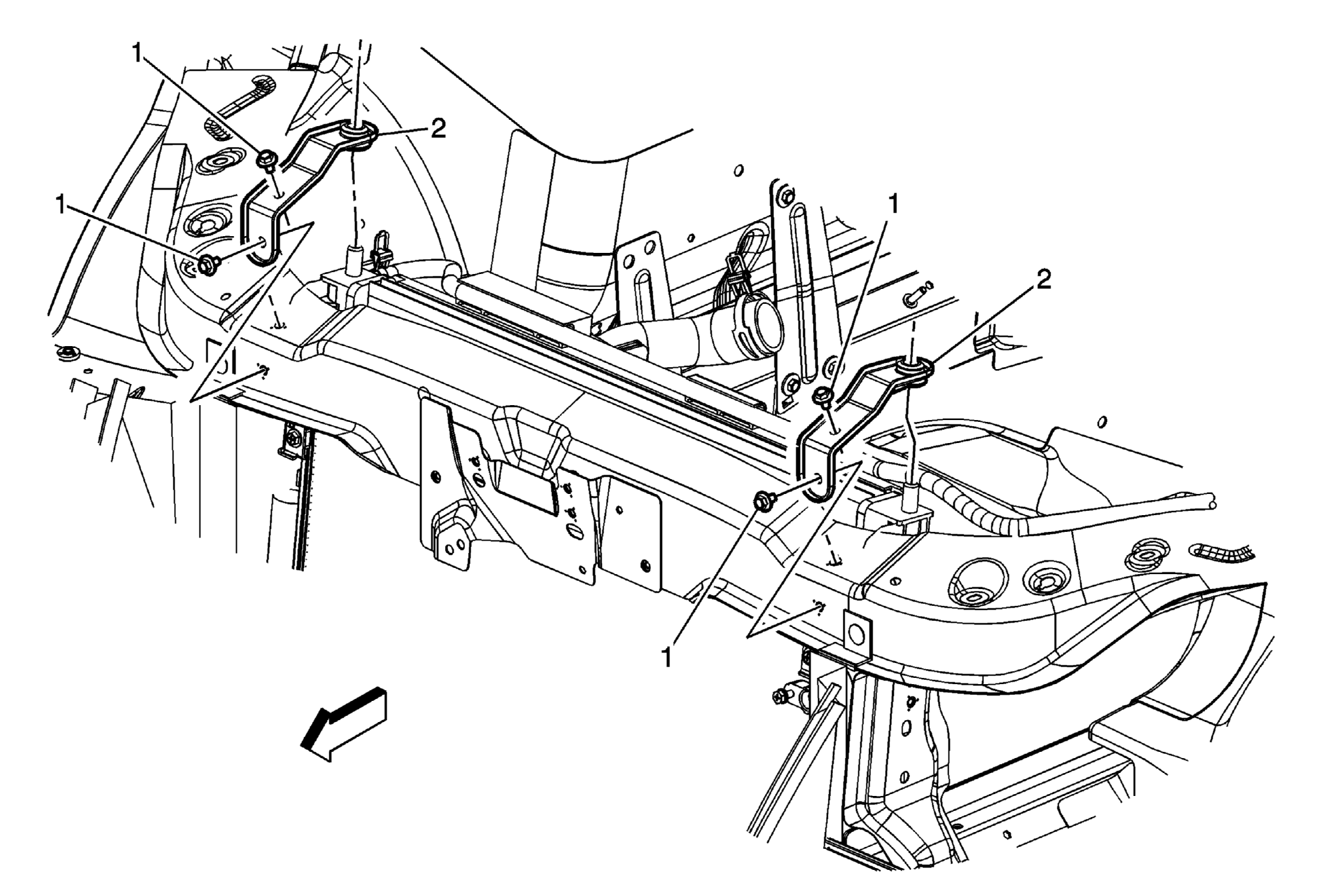

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement . |
|
| 1 | Radiator Support Bracket Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Radiator Support Bracket (Qty: 2) |
