Remote Control Door Lock and Theft Deterrent Receiver Replacement (Wagon)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

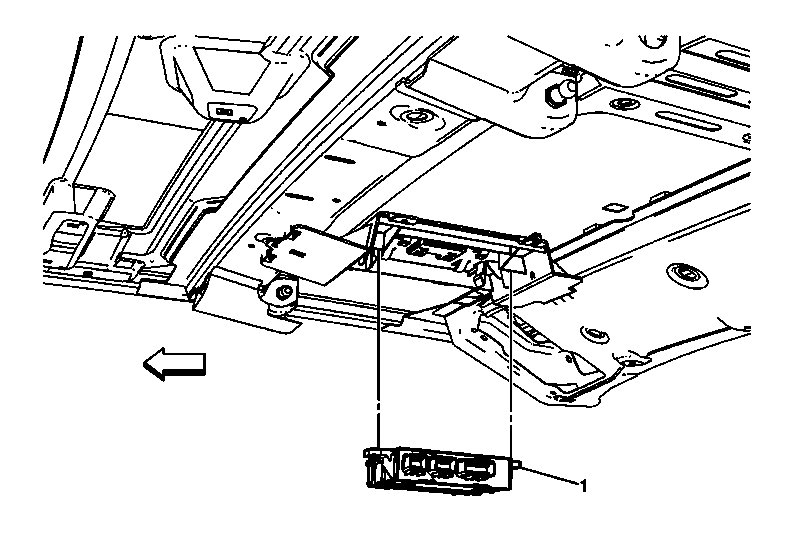

Fig 1: Remote Control Door Lock And Theft Deterrent Receiver (Wagon)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement (Sedan, Wagon) Remove the body side window front garnish molding. Refer to Body Side Window Front Garnish Molding Replacement (Wagon) Lower the rear of the headlining trim panel. Refer to Headlining Trim Panel Replacement (Coupe) , Headlining Trim Panel Replacement (Sedan) , Headlining Trim Panel Replacement (Wagon) .
1	Remote Control Door Lock and Theft Deterrent Receiver Procedure Disconnect the electrical connectors. Unsnap the receiver from the headliner. For programming and set up, refer to Control Module References

Callout

Component Name

Preliminary Procedure

Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement (Sedan, Wagon)
Remove the body side window front garnish molding. Refer to Body Side Window Front Garnish Molding Replacement (Wagon)
Lower the rear of the headlining trim panel. Refer to Headlining Trim Panel Replacement (Coupe) , Headlining Trim Panel Replacement (Sedan) , Headlining Trim Panel Replacement (Wagon) .

Remote Control Door Lock and Theft Deterrent Receiver

Procedure

Disconnect the electrical connectors.
Unsnap the receiver from the headliner.
For programming and set up, refer to Control Module References
