Driver Door Module (1 of 2)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

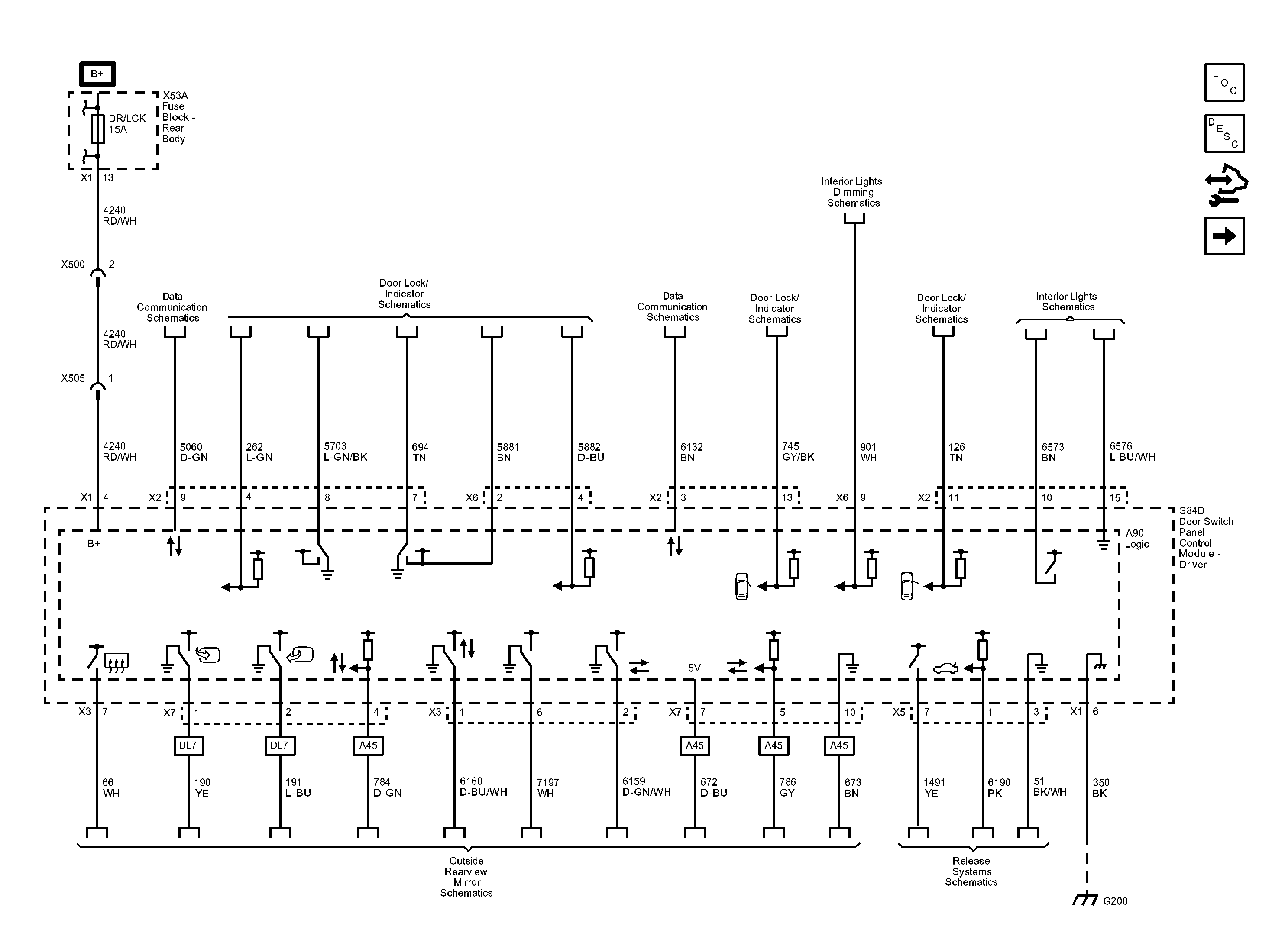

Fig 1: Driver Door Module Wiring Schematic (1 of 2)
GM2778986Courtesy of GENERAL MOTORS COMPANY
